Hydraulic Sea Water Level Sensor 0.25%FS IP68 Waterproof Anti-Corrosive

China Hefei WNK Smart Technology Co.,Ltd certification
China Hefei WNK Smart Technology Co.,Ltd certification
I'm Online Chat Now

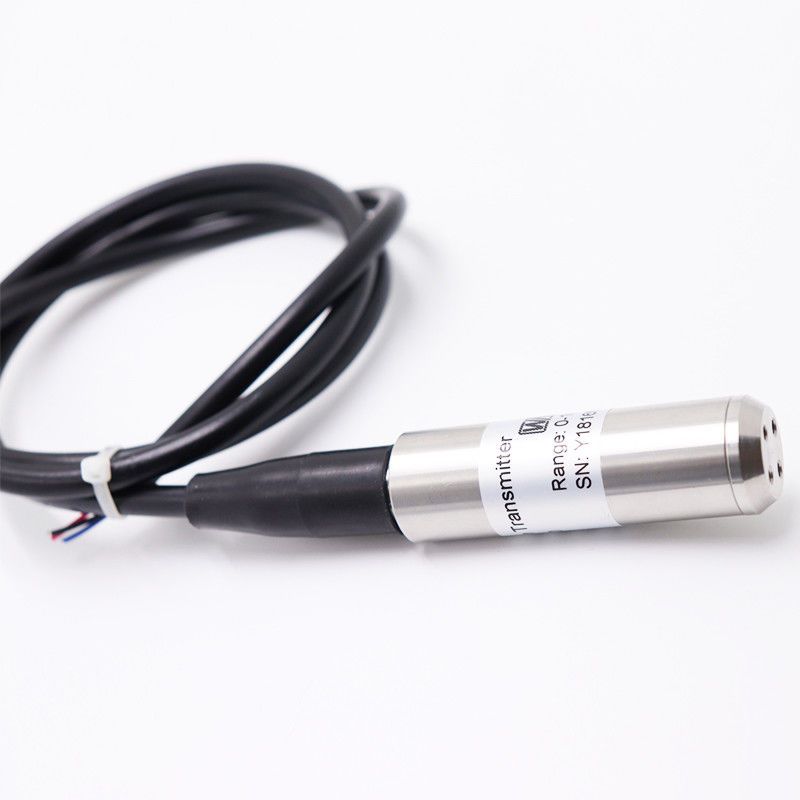

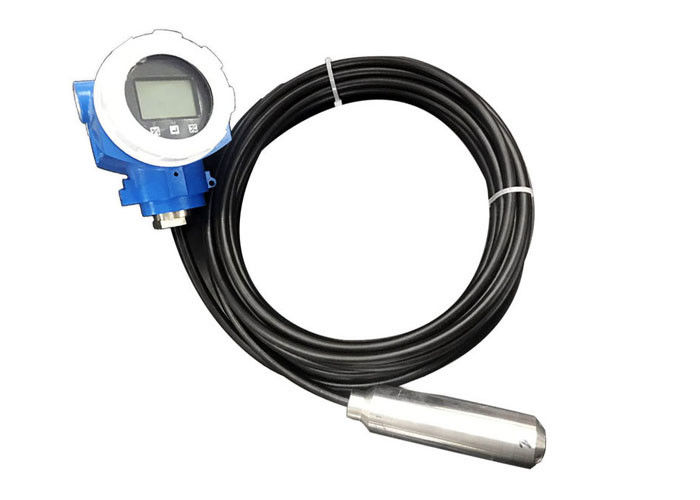

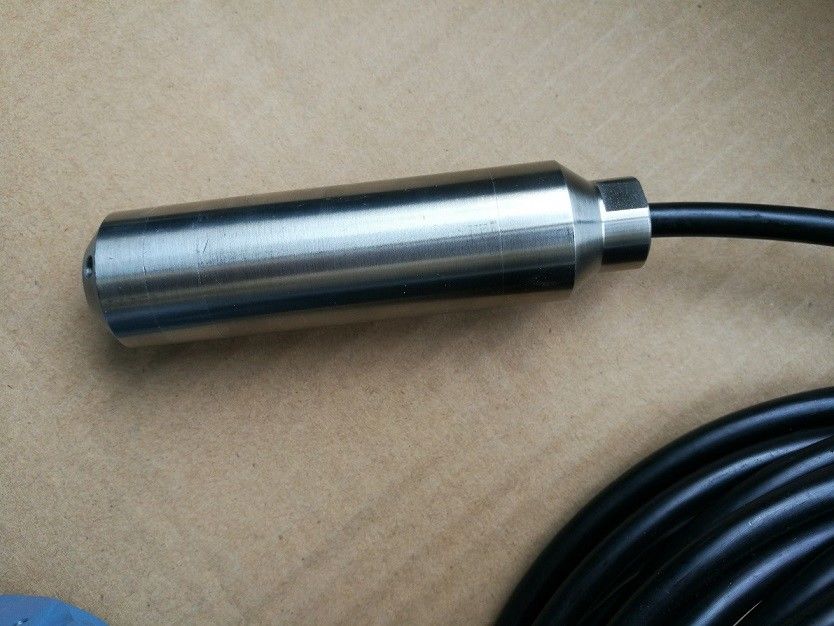

Hydraulic Sea Water Level Sensor 0.25%FS IP68 Waterproof Anti-Corrosive

Hydraulic Sea Water Level Sensor 0.25%FS IP68 Waterproof Anti-Corrosive
Hydraulic Sea Water Level Sensor 0.25%FS IP68 Waterproof Anti-Corrosive Hydraulic Sea Water Level Sensor 0.25%FS IP68 Waterproof Anti-Corrosive Hydraulic Sea Water Level Sensor 0.25%FS IP68 Waterproof Anti-Corrosive

Large Image :  Hydraulic Sea Water Level Sensor 0.25%FS IP68 Waterproof Anti-Corrosive

Product Details:
Place of Origin: Hefei, China
Brand Name: WNK
Certification: CE, Rhos
Model Number: WNK8010-T1
Payment & Shipping Terms:
Minimum Order Quantity: 1 each
Price: negotiable
Packaging Details: Custom Packaging, Sea-worthy Air-worthy Packing
Delivery Time: 5-7 working days
Payment Terms: Western Union, MoneyGram, T/T,Paypal
Detailed Product Description
Accuracy: 0.25%, 0.5% , 1.0% FS
High Light:

stainless steel level sensor

,

liquid level sensor

,

Hydraulic Sea Water Level Sensor

0.25%FS IP68 Waterproof Anti-Corrosive Hydraulic Liquid Submersible Level Sensor



Anti-Corrosive IP68 Water Tank Submersible Water Level Sensor



Product Description



Our WNK8010 liquid leve sensor with high performance diffused silicon piezoresistive pressure sensor as the measuring element,

- With the reliable amplified circuit and precision temperature compensation, to transfer the gauge or absolute pressure of measurement medium to standard voltage or current signal.

- This product comes with compact profile, easy to install, it can measure the level height directly when through into the liquor.





Applications

Water tank level measurement and control.

Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).

Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.

Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)



Features

Adopting diffusion silicon oil-filled sensor

Max measure range up to 200 meters or more

High Stability, provide 0.1, 0.2, 0.5 accuracy for option

Factory direct price







Specifications



Output 4-20mA, 0-5V, 1-5V, customization
Measured range 0-0.5~200mH2O
Max overload 150% of sensor range
Applicable media Liquid, Water
Accuracy ≤ ±0.2%FS,
Long Term Stability ±0.25% FS/year
Housing material Stainless steel
Cable material Polyvinyl Fluoride, PTFE
Power supply 24V DC
Operating temperature -30~85℃
Compensation temperature -20~70℃
Protection class IP68



Hydraulic Sea Water Level Sensor 0.25%FS IP68 Waterproof Anti-Corrosive 1



Ordering Code



Hydraulic Sea Water Level Sensor 0.25%FS IP68 Waterproof Anti-Corrosive 2





Certifications

Anti-Corrosive IP68 Water Tank Submersible Water Level Sensor





RFQ



Q: Are you manufacturer or trading company?

A: We are professional pressure/level/temperature measurement manufacturer with more than 13 years of experience. Our factory address is: 4/F,Bldg #6, No.168, Xiangzhang Road, High-tech District, 230088, Hefei, Anhui province, China.



Q: What’s your quality control system?

A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.



Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.



Q: Can we use our logo on the products? Do you provide customized products?

Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome



Q: What is yor MOQ?

A: We have no MOQ limits, small quantity order is acceptable.



Q: What's the transport?

A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
