Product Details:
Payment & Shipping Terms:
|
| Accuracy: | 0.25%, 0.5% | Pressure Range:: | 0~1M ... 200 Meter |
|---|---|---|---|
| Power Supply:: | 24VDC 12-30VDC | Material: | 304 SS, 316L |
| Media: | Water, Waste Water, Sea Water | Product Name: | Level Sensor, Level Transmitter |
| IP Rating:: | IP68 | Output: | 4-20mA 05-4.5V I2C Modbus |
| Approvals: | CE, RHOS | ||
| High Light: | stainless steel level sensor,liquid level sensor,Submersible Level Sensor 304 SS Material |
||
Product Description

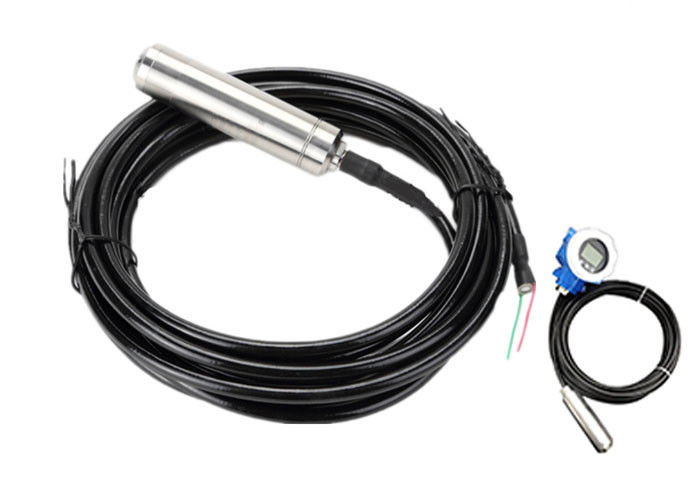

WNK8010 liquid leve sensor with high performance diffused silicon piezoresistive pressure sensor as the measuring element,
- With the reliable amplified circuit and precision temperature compensation, to transfer the gauge or absolute pressure of measurement medium to standard voltage or current signal.
- This product comes with compact profile, easy to install, it can measure the level height directly when through into the liquor.
Applications
Open tank, waste water, fire fighting water tank, reservoir water level, fuel tank and etc.
Features
• Adopting diffusion silicon oil-filled sensor
• Max measure range up to 200 meters or more
• High Stability, provide 0.1, 0.2, 0.5 accuracy for option
• Factory direct price
Quick Information
1.High accuracy 0.2%FS;
2.Wide application range 0-0.5~200m H2O;
3.Output 4~20mA, 0~10mA, 0~5V, 1~5V & customization;
4.High overload 150 times;
5.Stability 0.25%FS/Year;
6.Protection class IP68;
7.High cost effective with OEM &ODM
Specifications
| Output | 4-20mA, 0-5V, 1-5V, customization |
| Measured range | 0-0.5~200mH2O |
| Max overload | 150% of sensor range |
| Applicable media | Liquid, Water |
| Accuracy | ≤ ±0.2%FS, |
| Long Term Stability | ±0.25% FS/year |
| Housing material | Stainless steel |
| Cable material | Polyvinyl Fluoride, PTFE |
| Power supply | 24V DC |
| Operating temperature | -30~85℃ |
| Compensation temperature | -20~70℃ |
| Protection class | IP68 |
Ordering Code
Certifications
