WNK-SLS Electronic Digital Level Switch ≤0.5%FS ≤0.5%FS For Water Liquid Tank

WNK-SLS Electronic Digital Level Switch ≤0.5%FS ≤0.5%FS For Water Liquid Tank

electronic water level switch

industrial level switch

WNK-SLS Electronic Digital Level Switch

Place of Origin:

Anhui, China

Brand Name:

WNK

Certification:

ISO9001:2015

Model Number:

WNK-SLS

Contact Us
Request A Quote
Product Details
Output:
4-20mA, 0-5V, 0-10V, RS485
C:
≤0.5%FS
Measuring Range:
0...1mH2O To 100mH2O
Long-term Stability:
±0.3%FS/year
Power Supply:
12...30V DC
Display:
OLED
Ingress Protection:
IP65
Electrical Connector:
M12
Switching:
PNP/NPN
Highlight:

electronic water level switch

,

industrial level switch

,

WNK-SLS Electronic Digital Level Switch

Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Negotiation
Packaging Details
Standard export carton packing, customized packing
Delivery Time
5-8 work days
Payment Terms
T/T, Western Union
Supply Ability
200 pcs per day
Product Description

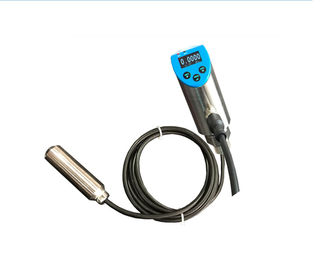

WNK-SLS Electronic Digital Level Switch ≤0.5%FS ≤0.5%FS For Water Liquid Tank 0





OLED Electronic Digital Level Switch for Water Liquid Tank



SLS Intelligent Level Switch is designed for level monitoring and measurement of liquid and oil media. It is applied to general industry such as tank, case, liquid cell and deep well. It is level switch, transmitter and display in one device. In its standard configuration it has optional two switching outputs (PNP or NPN), an analog output signal (0...20mA| 4…20 mA or 0...5V| 0…10 V) as well as with RS485 Link.



The level switch SLS takes the high integrated ARM industrial-grade MCU as the core. The SLS ensures fast-speed and precise level measurement and switch movement by carefully adjustment and combining high-precision AD switch and high stabile pressure sensor. The setup using the three big back-lighted buttons and the display on machine make it very easy for on-site parameters setting.





Features:

  • Liquid and oil media level measurement
  • PNP switching, voltage and current outputs
  • Support MODBUS communication
  • Switching points settable
  • Switching can be set normally open / normally closed
  • Supporting Switching delay
  • Analog output span settable
  • High light switch indicating
  • OLED self-luminous display
  • Display turnable 180°
  • Housing with electrical connection against process connection rotatable 330°
  • Media density settable



Technical Data:

Product name SLS Electronic Smart Level Switch
Measuring range 01mH2O to100mH2O
Accuracy ≤0.5%FS
Supply power 12-30V DC
Temp. Error ±0.02% URL/ºC (Zero/ Full Span)
Long-term Stability ≤±0.3%FS/Year
Analog output accuracy ≤±0.2%FS
Measuring media Water, mineral-based hydraulic fluid and Synthetic oil
Wetted material Stainless steel, Nitrile Butadiene Rubber and PTFE
Output configurations 2×PNP + 0v~5VDC/10VDC + MODBUS
2×PNP + 0mA/4mA~20mADC + MODBUS
Switch current 1.0A(Max.)
Switching type Normally open / closed (settable)
Reponse time < 10ms
Switching motion mode Delay or windows mode
Analog signal output and max ohmic load RL Current output 0/4...20mA, 20...4mA RL≤0.5k
Voltage output 0...5/10v, 5/10...0v RL>10k
Screen display OLED
Menu language Chinese and English
Displaying units kPa, mm, cm, m
Working temperature -30-80ºC
Media temperature 0ºC~60ºC
Storage temperature -40ºC~80ºC
Electromagnetism compatible GB/T 17626.2/3/4-2006
shock resistance ≤10g/10Hz...500Hz(IEC 60068-2-6-2007)
vibration resistance ≤50g/11ms(IEC 60068-2-27-2008)
Protection class IP65| IP68 (Switch body| level detector)





Ordering sheet:

WNK-SLS Electronic Digital Level Switch ≤0.5%FS ≤0.5%FS For Water Liquid Tank 1

.
