Profibus Rtd Smart Temperature Transmitter 4-20ma Output Aluminium Housing

China Hefei WNK Smart Technology Co.,Ltd certification
China Hefei WNK Smart Technology Co.,Ltd certification
I'm Online Chat Now

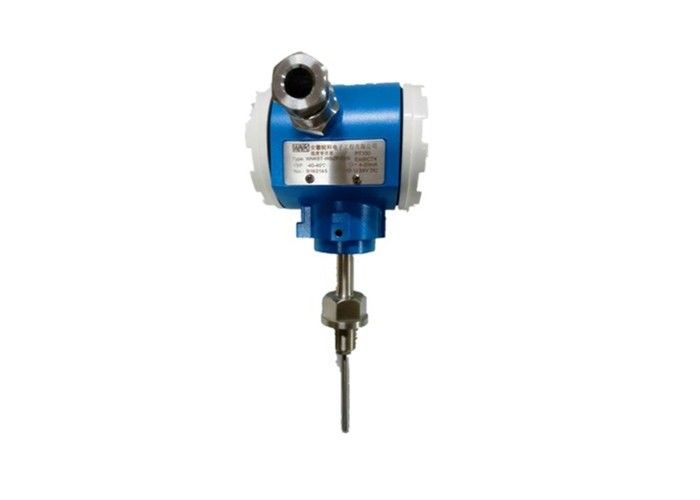

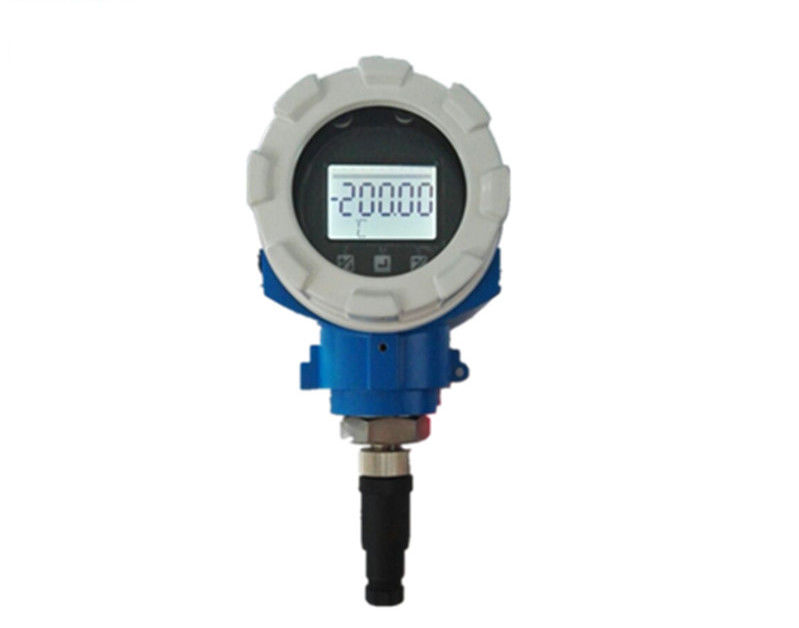

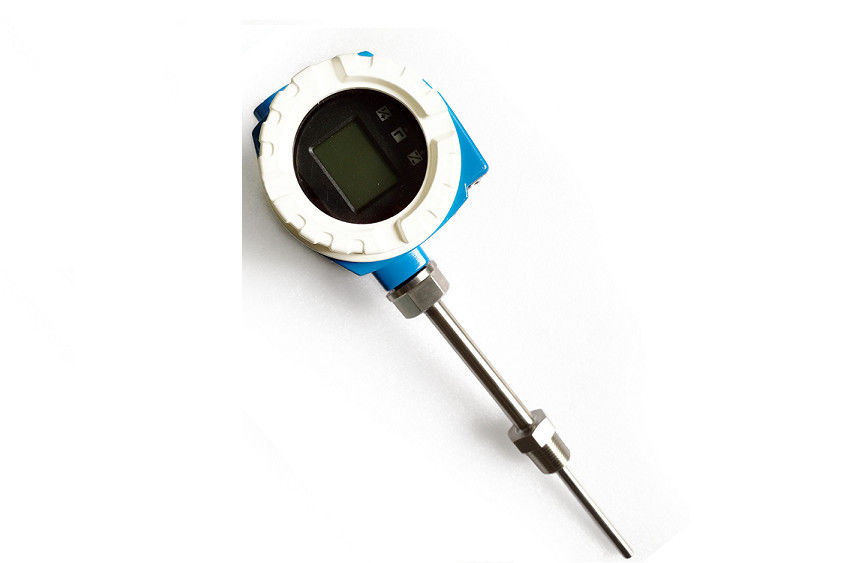

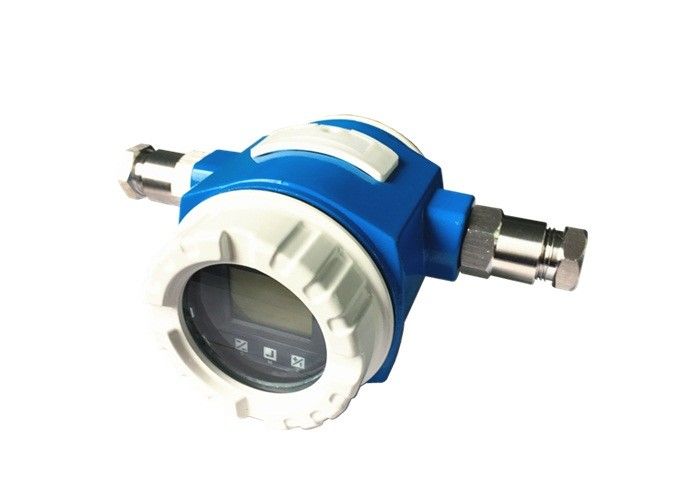

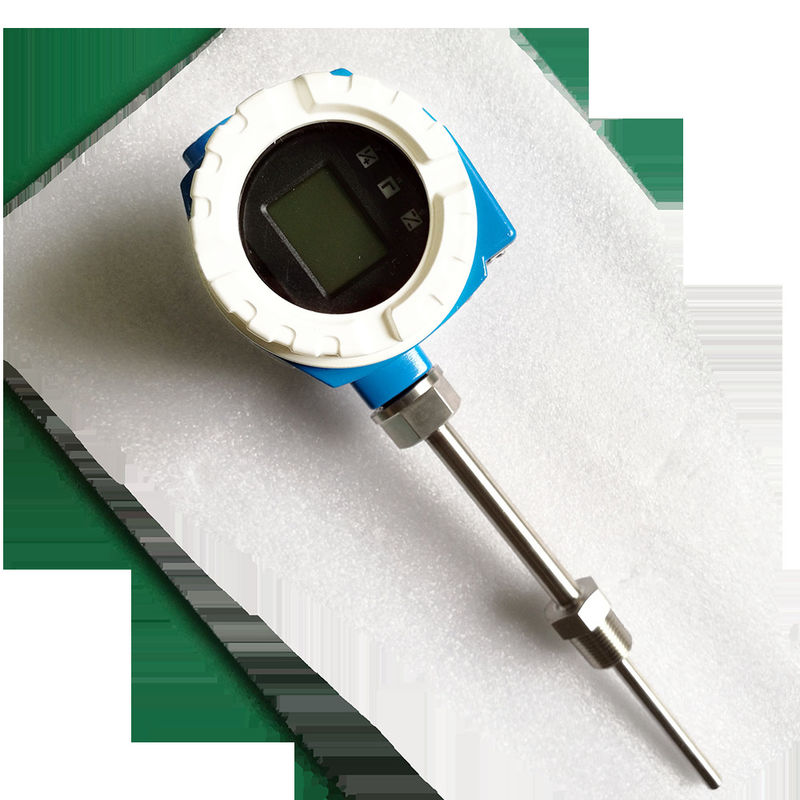

Profibus Rtd Smart Temperature Transmitter 4-20ma Output Aluminium Housing

Profibus Rtd Smart Temperature Transmitter 4-20ma Output Aluminium Housing
Profibus Rtd Smart Temperature Transmitter 4-20ma Output Aluminium Housing Profibus Rtd Smart Temperature Transmitter 4-20ma Output Aluminium Housing Profibus Rtd Smart Temperature Transmitter 4-20ma Output Aluminium Housing Profibus Rtd Smart Temperature Transmitter 4-20ma Output Aluminium Housing Profibus Rtd Smart Temperature Transmitter 4-20ma Output Aluminium Housing Profibus Rtd Smart Temperature Transmitter 4-20ma Output Aluminium Housing

Large Image :  Profibus Rtd Smart Temperature Transmitter 4-20ma Output Aluminium Housing

Product Details:
Place of Origin: Hefei, China
Brand Name: WNK
Certification: ISO
Model Number: WNK6T
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard export carton packing
Delivery Time: 5-7 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 pcs per month
Detailed Product Description
Measuring Range: 0~1300ºC, (Thermocouple K) Power Supply Range: 9~45V (9~24V, Ex)
Output Signal: 4~20mA/Hart/Profibus PA Material: Aluminium Housing
Long Term Drift: <0.1/year Ex-proof: ExiaII CT4
Media: Liquid, Gas And Steam
High Light:

smart temperature sensor

,

industrial temperature sensor

Profibus Rtd Smart Temperature Transmitter 4-20ma Output

Description



WNK PROFIBUS-PA field bus WNK6T temperature transmitter is approved by PROFIBUS Nutzerorganisation e.V. For temperature sensor we can provide the thermal resister, thermocouple etc usually used in industry, we can also provide special sensor, including high temperature type,high pressure type,health type,with special material or with coating etc sensor. Customized sensor is also acceptable.




 Features

1. High precision, digital precision up to :±0.01ºC
2. To reduce the overall cost of installation,maintenance and running
3. Install easily, more flexiable

4. LCD display, Menu-guided operation.

5, Self-diagnostics function



Data Sheet
Measuring media liquid, gas and steam
Measuring range -270~800 ºC (PT100 thermal resistor)
0~1300ºC, (Thermocouple K)
Input Thermocouple, RTD, MV, Resistive sensor
Power supply range 9~45V (9~24V, Ex)
Output signal 4~20mA/Hart/Profibus PA
Digital Accuracy ±0.01ºC, PT100 input
Internal cold end compensation error <0.25ºC±0.1%/10ºC
Temperature drift ±0.05%/10ºCfull scale range
0.1% between-10°C to 60°C
Effect of power supply on range <0.005%/V full-scale range
Long term drift <0.1/year
