Product Details:
Payment & Shipping Terms:
|
| Type: | Gauge Absolute Vacuum | Pressure Range: | -100kpa…0~10kpa…60MPa |
|---|---|---|---|
| Response Time: | <2ms | Structure Type: | Diffused Silicon Sensor |
| Accuracy Grade: | 0.25%FS | Temperature Compensation: | -20C ~ 70C |
| Media: | Gas Water Liquid Steam | IP Rating:: | IP65, IP67 |
| High Light: | smart type pressure transmitter,smart pressure sensor |
||

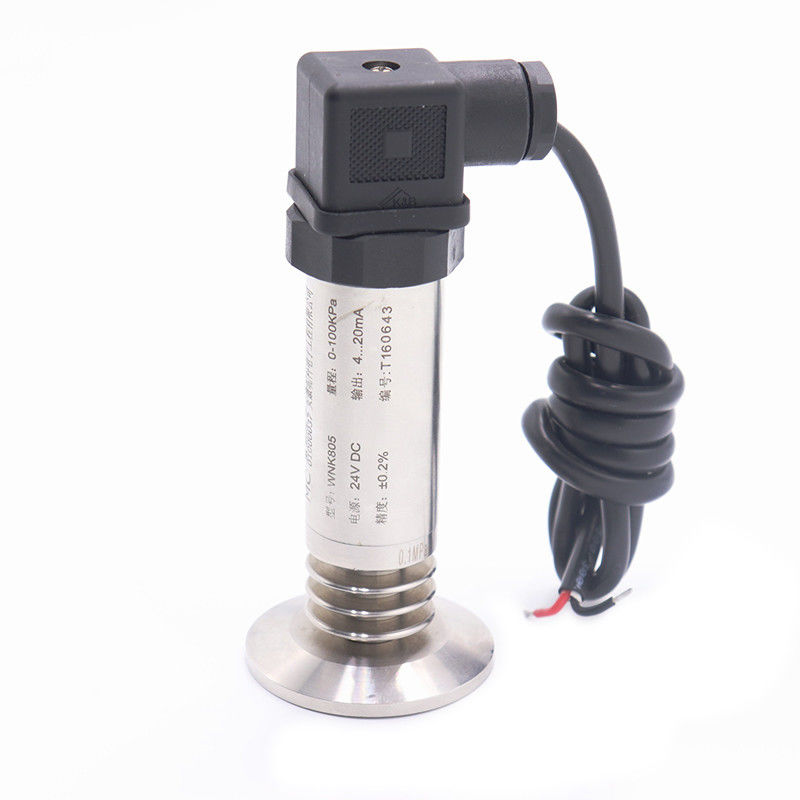

Analog And Digital Output Low Cost Smart Pressure Transmitter Pressure Transducer For General-Purpose
Applications
♦Equipment automation
♦Engineering machinery
♦Medical equipment
♦Pump and compressor
♦Energy and water
♦Water Treatment system
♦Agricultural mechanical equipment
♦Internal combustion engine
♦Hydraulic and pneumatic system
♦Air conditioning unit and refrigeration equipment
Specifications
1. Pressure range: 0-0.2 ~ -100kPa, 0-0.2 ~ 1000kPa 60000kPa
2. Pressure type: gauge, absolute, vacuum, negative pressure
3. Overload: 1.5~2 times
4. Non-linearity: 0.1, 0.25, 0.5, 1%FS
5. Delay / repeat: 0.05, 0.1%FS
6. Temp. compensation: -10-70 ºC
7. Working temperature: -40 ~ 85 ºC
8. Media: nonconducting and non-corrosion or weak corrosion gas
9. Comprehensive accuracy: 0.1, 0.25, 0.5, 1.0
10. Stability: 0.25%FS/ Year
Technical Data
|
Applicable media
|
Liquid, Gas, Steam
|
|
Pressure measurment
|
Gauge Pressure, Absolute pressure, Negative pressure, Sealing pressure
|
|
Pressure range
|
0-0.2~-100kPa, 0-0.2~1000kpa, 60mPa
|
|
Output signals
|
4~20mA, 1-5V for optional
|
|
Accuracy
|
0.2, 0.5
|
|
Stability
|
±0.25% FS/year
|
|
Zero drift
|
50% of full range span.
|
|
Max overload
|
200% of sensor range
|
|

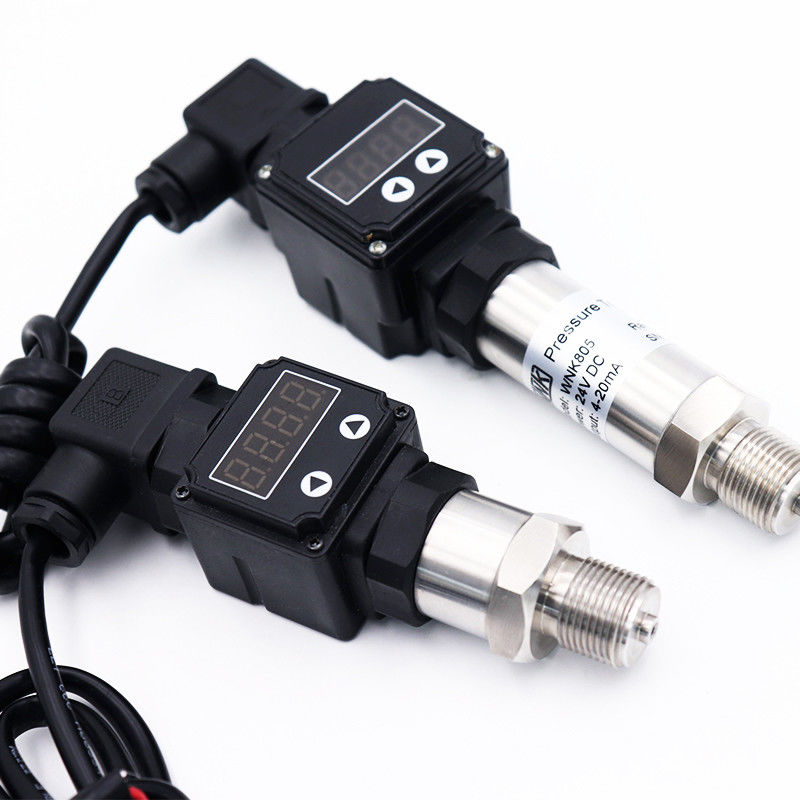

Display
|
LED (Optional)
|
|
Housing material
|
304 stainless steel
|
|
Mechanical connection
|
M20×1.5; 1/2-18NPT, 1/4NPT, Customize
|
|
|
Non-explosion: 10.5~45V DC
|
|
EEX ia:10.5～30 V DC
|
|
|
Ambient temperature
|
－40～85℃
|
|
Process temperature
|
－40～85℃
|
Advantages:
1. Founded in 2004, over 13 year professional research, developing and production experience;
2. Experienced and professional R&D team to provide customization services;
3. Producing transmitter core elements- PCB, supplying PCB for transmitter producers;
4. Highest accuracy up to 0.05%FS;
5. Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs;
6. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
