Mini Gas Pressure Transmitter Air Pressure Transducer With Customized Electrical Connection

China Hefei WNK Smart Technology Co.,Ltd certification
China Hefei WNK Smart Technology Co.,Ltd certification
I'm Online Chat Now

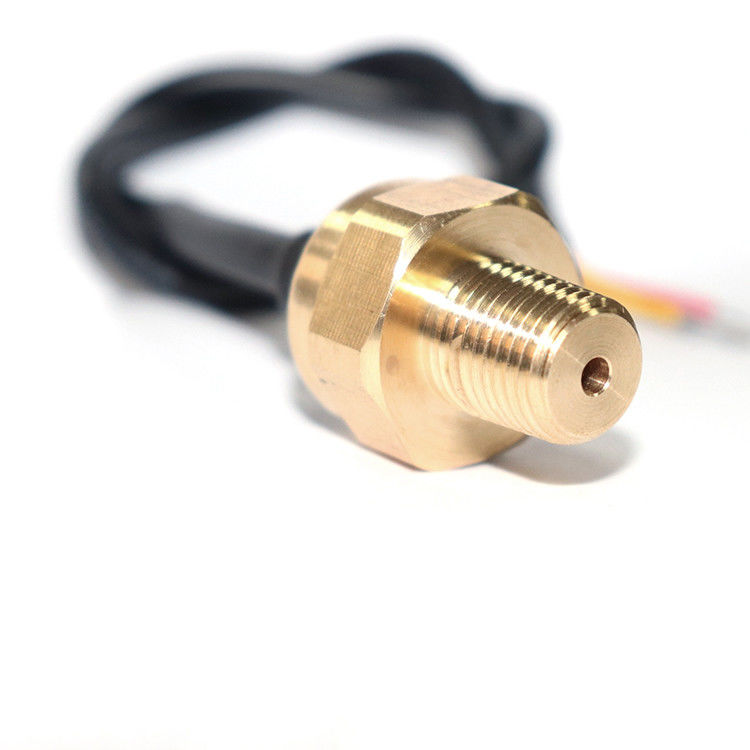

Mini Gas Pressure Transmitter Air Pressure Transducer With Customized Electrical Connection

Mini Gas Pressure Transmitter Air Pressure Transducer With Customized Electrical Connection
Mini Gas Pressure Transmitter Air Pressure Transducer With Customized Electrical Connection Mini Gas Pressure Transmitter Air Pressure Transducer With Customized Electrical Connection Mini Gas Pressure Transmitter Air Pressure Transducer With Customized Electrical Connection

Large Image :  Mini Gas Pressure Transmitter Air Pressure Transducer With Customized Electrical Connection

Product Details:
Place of Origin: China
Brand Name: WNK
Certification: ISO, CE
Model Number: WNK83MA
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: Standard export carton box or according to your requirement
Delivery Time: 5-7 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000 Piece/Pieces per Month
Detailed Product Description
Accuracy: 1%F.S Output: 0.5-4.5V
Pressure Range: 0-1000Kpa Power Supply: 4.75-5.25VDC
Work Temperature: -20~70°C Measured Media: Liquid, Gas, Steam
Housing Material: Brass Electrical Connection: Cable Outlet
High Light:

air pressure transmitter

,

mini pressure sensor

Mini foot pressure sensor pressure transmitter with brass housing with customize electrical connection



Founded in 2004, Hefei WNK Smart Technology Co Ltd is a professional national high-tech enterprise specializing in the development, manufacturing, sales and service of various type of advanced and reliable pressure sensors and pressure transmitters. We are committed to providing our customers with pressure sensors, pressure transmitters and technical solutions in various type of applications

The company's main products include pressure sensors and transmitters, temperature transmitters and other measuring instruments. The company's products and services are widely applied in internet of things and smart cities such as: smart water, smart gas and smart fire.

With strict and scientific management system and management mechanism, WNK has passed the I S O 9 0 0 1: 2 0 1 5 quality management system certification of the classification society. WNK is committed to research and developing of new products and technical innovations. With continuous efforts aiming at advancement of cutting-edge technologies, WNK has been undertaking some innovative projects of the State Ministry of Science and Technology, and was recognized as a “small technological giant” cultivation enterprise by Hefei high-tech zone.



Parameter



Applicable media Liquid, gas, steam
Pressure range 0-1000Kpa
Pressure measurement Gauge pressure, sealing pressure
Output 0.5-4.5V
Power Supply 4.75-5.25VDC
Accuracy(lineraity, hysteresis, repeatability) 1%FS
Work temperature -20~70°C
Storage temperature -40~110°C
Temp drift(zero) ±0.15%FS(-20~70°C)
Temp drift(full range) ±0.15%FS(-20~85C)
Electrical connection Parkard
Mechanical connection Cable outlet
Housing material Brass









Mechanical Dimension



Mini Gas Pressure Transmitter Air Pressure Transducer With Customized Electrical Connection 0





Mini Gas Pressure Transmitter Air Pressure Transducer With Customized Electrical Connection 1





Company Information



Mini Gas Pressure Transmitter Air Pressure Transducer With Customized Electrical Connection 2


Factory


Mini Gas Pressure Transmitter Air Pressure Transducer With Customized Electrical Connection 3




Exhibition


Mini Gas Pressure Transmitter Air Pressure Transducer With Customized Electrical Connection 4





Our Certificate
Mini Gas Pressure Transmitter Air Pressure Transducer With Customized Electrical Connection 5





Packing
Mini Gas Pressure Transmitter Air Pressure Transducer With Customized Electrical Connection 6

FAQ


Q: Are you manufacturer or trading company?

A: We are professional pressure/level/temperature measurement manufacturer since 2004.



Q: What’s your quality control system?

A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.



Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.



Q: Can we use our logo on the products? Do you provide customized products?

Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome



Q: What is yor MOQ?

A: We have no MOQ limits, small quantity order is acceptable.



Q: What's the transport?

A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
