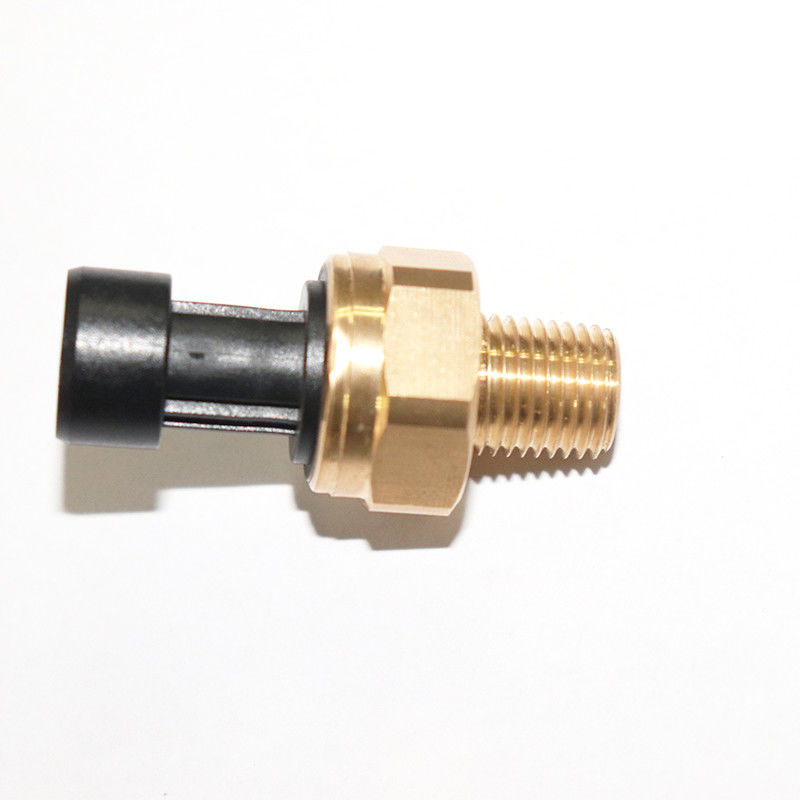

Micro Brass Shell Material Air Pressure Sensor 1/4NPT 0-1000kPa Pressure Range

China Hefei WNK Smart Technology Co.,Ltd certification
China Hefei WNK Smart Technology Co.,Ltd certification
I'm Online Chat Now

Micro Brass Shell Material Air Pressure Sensor 1/4NPT 0-1000kPa Pressure Range

Micro Brass Shell Material Air Pressure Sensor 1/4NPT 0-1000kPa Pressure Range
Micro Brass Shell Material Air Pressure Sensor 1/4NPT 0-1000kPa Pressure Range Micro Brass Shell Material Air Pressure Sensor 1/4NPT 0-1000kPa Pressure Range

Large Image :  Micro Brass Shell Material Air Pressure Sensor 1/4NPT 0-1000kPa Pressure Range

Product Details:
Place of Origin: China (Mainland)
Brand Name: WNK
Certification: CE
Model Number: wnk83mA
Payment & Shipping Terms:
Minimum Order Quantity: 1Piece
Price: Negotiation
Packaging Details: standard export carton box
Delivery Time: 5-8 work day
Payment Terms: T/T, Western Union
Supply Ability: 5000+Piece+perMonth
Detailed Product Description
Accuracy: 1% Measured Media: Liquid, Gas And Steam
Pressure Range: 0-1000kPa Output Signal: 0.5-4.5 VDC
Power Supply: 4.75-5.25 VDC Operating Temperatures: -20 To 70 ℃
Material: Brass Process Connection: 1/4NPT
Electrical Connection: Parkard
High Light:

mini pressure sensor

,

air pressure transmitter

Product Description

Low Price Micro Brass Shell Material Pressure Sensor 1/4NPT 0-1000kPa

What we are showing now is WNK83mA quarter NPT pressure tranmitter.As a practical pressure transmitter made of brass, it has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its supply voltage is 4.75-5.25v DC and the maximum supply current is 15mA. It can withstand strong working pressures up to 2000kpa. It can act on gas, water or liquid and has strong stability.



Applicable mediaLiquid, gas and steam
Pressure range0-1000kPa
CellCeramic capacitive pressure sensor
Pressure measurmentGauge Pressure, Sealing pressure
Output0.5-4.5V
Power supply4.75-5.25 VDC
Accuracy(linearity,Hysteresis and Repeatability)1%F.S.
Compensation temperature-20~70ºC
Ambient temperature-40~110ºC
Working temperature-40~110ºC
Temperature drift(zero)±0.15% F.S. (-20~70ºC)
Temperature drift(full range)±0.15% F.S. (-20~85ºC)
Electrical connectionParkard
Mechanical connection1/4 NPT
Housing materialBrass

NPT .jpg


Micro Brass Shell Material Air Pressure Sensor 1/4NPT 0-1000kPa Pressure Range 1Micro Brass Shell Material Air Pressure Sensor 1/4NPT 0-1000kPa Pressure Range 2Micro Brass Shell Material Air Pressure Sensor 1/4NPT 0-1000kPa Pressure Range 3Micro Brass Shell Material Air Pressure Sensor 1/4NPT 0-1000kPa Pressure Range 4


Company Information

pressure transducer 4-20 ma

Factory

pressure transducer 4-20 ma

Exhibition

pressure transducer 4-20 ma

Our Certificate

pressure transducer 4-20 ma

FAQ

Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer since 2004.

Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.

Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.

Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome

Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.

Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
