0.5 - 4.5V Output Smart Pressure Transmitter G1/4 Process Connector 1% Accuracy

0.5 - 4.5V Output Smart Pressure Transmitter G1/4 Process Connector 1% Accuracy

smart type pressure transmitter

digital pressure transmitter

Place of Origin:

China

Brand Name:

WNK

Certification:

CE

Model Number:

WNK83mA

Contact Us
Request A Quote
Product Details
Pressure Range:
0-2MPa,0-20bar,0-2000kPa
Output:
0.5-4.5V DC
Power Supply:
4.75-5.25V DC
Material:
Brass
Process Connector:
G1/4
Electrical Connector:
Cable Outlet
Accuracy:
1%
Highlight:

smart type pressure transmitter

,

digital pressure transmitter

Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Negotiation
Packaging Details
Each piece into individual carton with foam protection,Or as per client's request
Delivery Time
8-10 working days
Payment Terms
D/A, D/P, T/T, Western Union, Paypal
Supply Ability
2000 pcs per week
Product Description

20bar G1/4 cable outlet 0.5-4.5V output ceramic pressure sensor



Mini brass pressure sensor,range 0-20bar,temp range -20 to 70ºC,output 0.5-4.5V,suitable for gauge pressure ,sealing pressure.



Applicable media Liquid, gas and steam
Pressure range 0-2MPa
Cell Ceramic capacitive pressure sensor
Pressure measurment Gauge Pressure, Sealing pressure
Output 0.5-4.5V
Power supply 4.75-5.25 VDC
Accuracy(linearity,Hysteresis and Repeatability) 1%F.S.
Working temperature -20~70ºC
Ambient temperature -40~110ºC
Temperature drift(zero) ±0.15% F.S. (-20~70ºC)
Temperature drift(full range) ±0.15% F.S. (-20~70ºC)
Electrical connection Cable Outlet
Mechanical connection G1/4
Housing material Brass

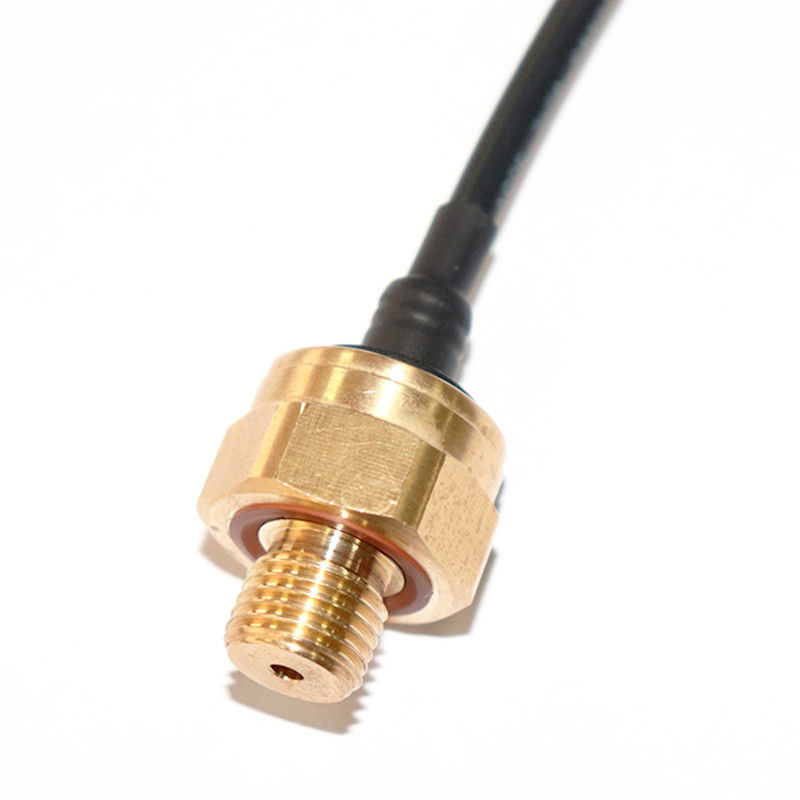

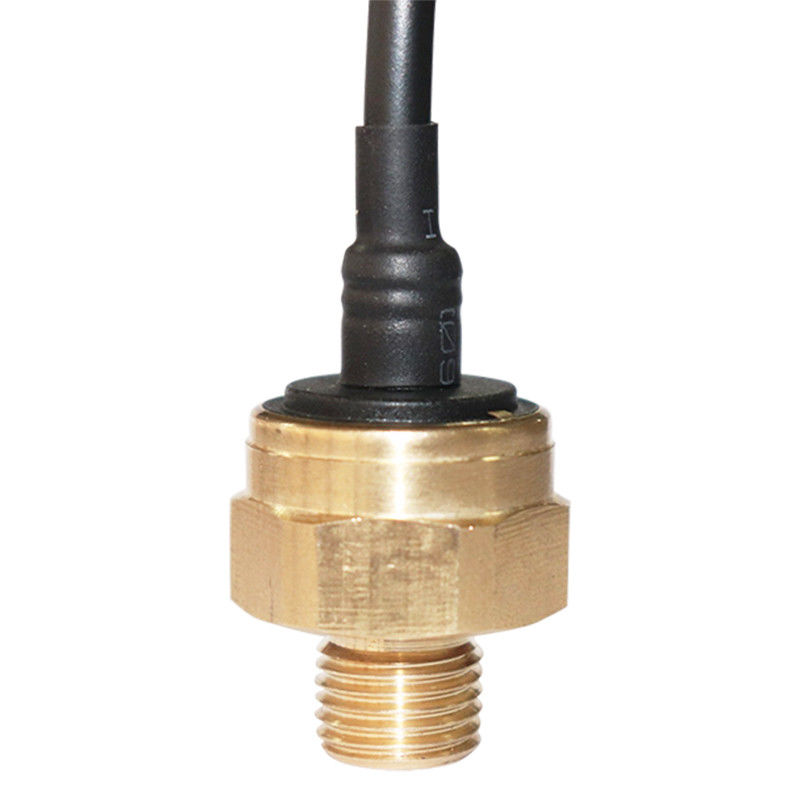

Product Show

0.5 - 4.5V Output Smart Pressure Transmitter G1/4 Process Connector 1% Accuracy 00.5 - 4.5V Output Smart Pressure Transmitter G1/4 Process Connector 1% Accuracy 10.5 - 4.5V Output Smart Pressure Transmitter G1/4 Process Connector 1% Accuracy 2



company information



1





Certification

0.5 - 4.5V Output Smart Pressure Transmitter G1/4 Process Connector 1% Accuracy 4



0.5 - 4.5V Output Smart Pressure Transmitter G1/4 Process Connector 1% Accuracy 5

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea
