|Measured Media:||Liquid, Gas And Steam||Output Signal:||4~20mA,1-5V(optional)|
|Pressure Range:||-100KPa~60MPa||Power Supply:||10.5-55V DC, 10.5-30V DC|
|Protection Class:||IP65||Ambient Temperature:||-40~85℃|
|Housing Material::||304 Stainless Steel|
air pressure transmitter,
mini pressure sensor
Strict and scientific management system and management mechanism, WNK has passed the I S O 9 0 0 1: 2 0 1 5 quality management system certification of the classification society. WNK is committed to research and developing of new products and technical innovations. With continuous efforts aiming at advancement of cutting-edge technologies, WNK has been undertaking some innovative projects of the State Ministry of Science and Technology, and was recognized as a “small technological giant” cultivation enterprise by Hefei high-tech zone.

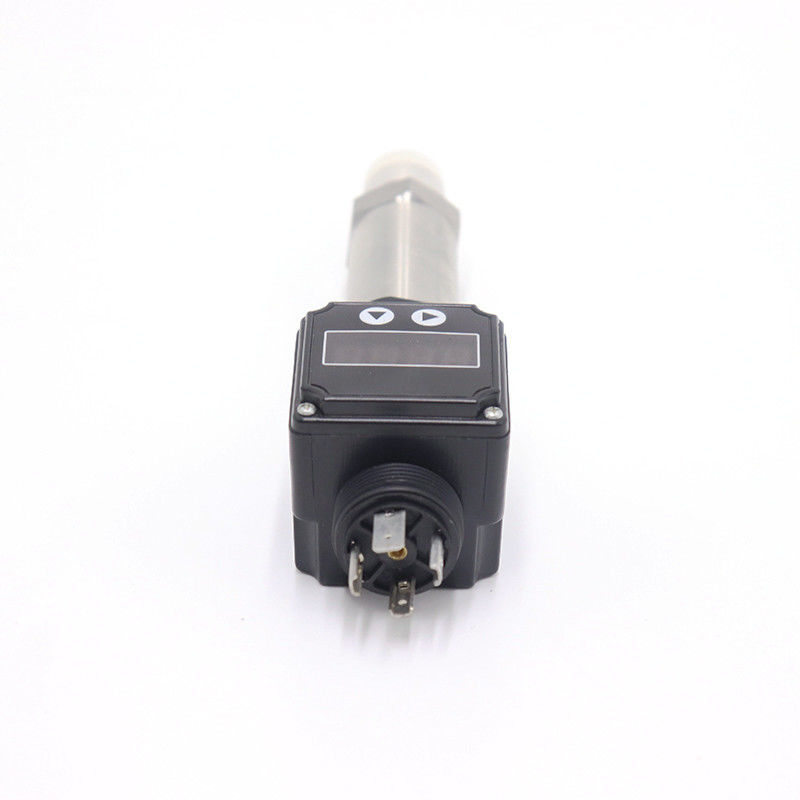

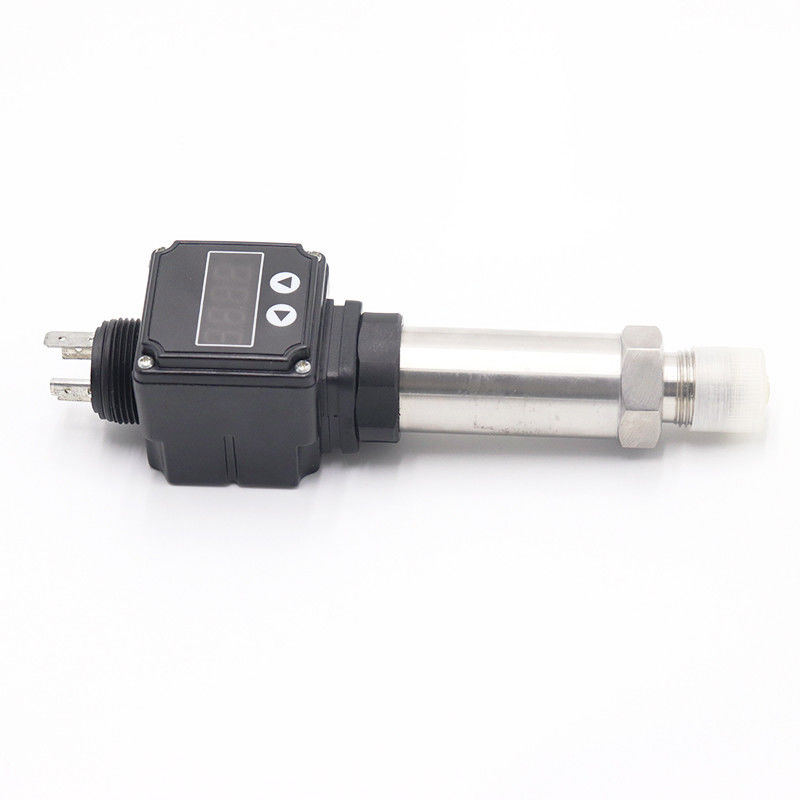

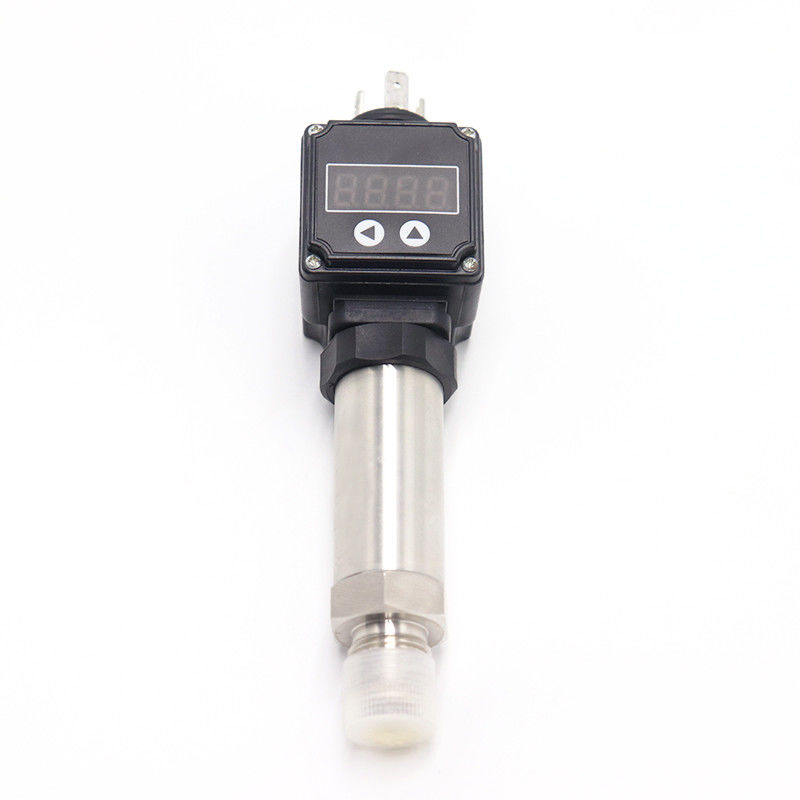

WNK805mA IP65 Capacitive IIC Lora Small Size Pressure Sensor
|WNK805 Gauge/Absolute Pressure Transmitter (Diffused silicon sensor)|
|Applicable media||Liquid, Gas, Steam|
|Pressure range||-100kPa-0, 0-0.2~-100kPa, 0-0.2~1000kpa, 0-60MPa, 70MPa|
|Pressure measurement||Gauge Pressure, Absolute pressure, Negative pressure, Sealing pressure|
|Accuracy||0.2% FS, 0.5% FS|
|Zero drift||50% of full range span.|
|Max overload||200% of sensor range|
|Bandwidth / Response time||1 millisecond (Optional for analog type)|
|Output signals||4~20mA, 1-5V(optional)|
|Housing material||304 stainless steel|
|Mechanical connection||M20×1.5; 1/2-18NPT, 1/4NPT, G1/4, Customize|
|Power supply||Non-explosion: 10.5~45V DC|
|EEX ia:8~30 V DC|
|-40~150℃ (diaphragm type, clamp type)|
1. WNK805 integral pressure transmitter adopts stainless steel shell structure, built in stainless steel oil filled sensor, intelligent digital circuit.
2.With precise temperature characteristic compensation, it can be used reliably and stably
3.It is suitable for gas, liquid, steam pressure measurement and pressure measurement with corrosive media.
Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer since 2004.
Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome
Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.
Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
