|Pressure Range:||0-2MPa,0-20bar,0-2000kPa||Output:||0.5-4.5V DC|
|Power Supply:||4.75-5.25V DC||Material:||Brass|
|Process Connector:||1/4 NPT||Electrical Connector:||Cable Outlet|
smart type pressure transmitter,
digital pressure transmitter

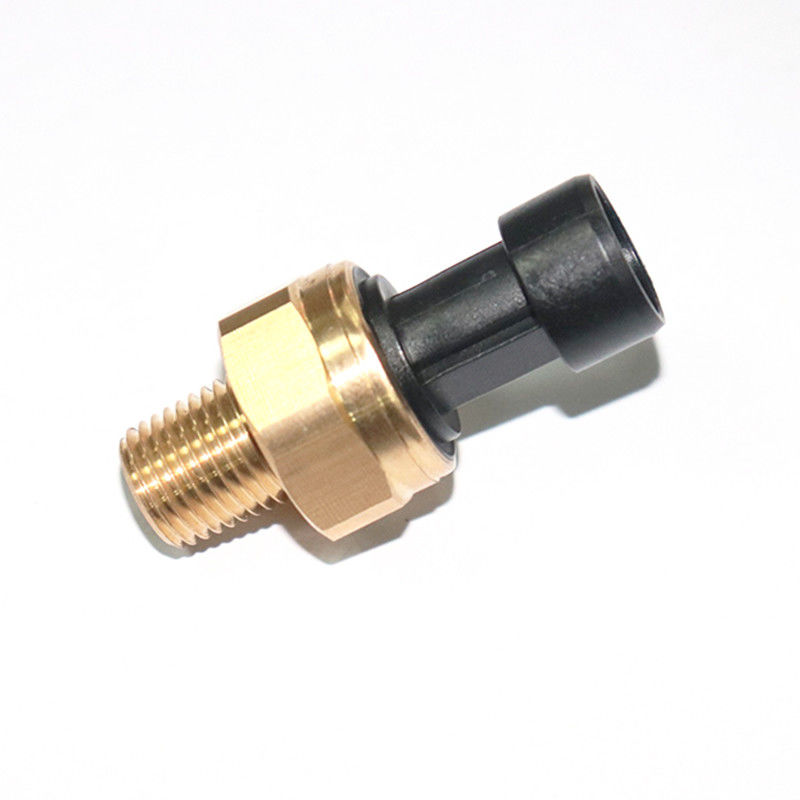

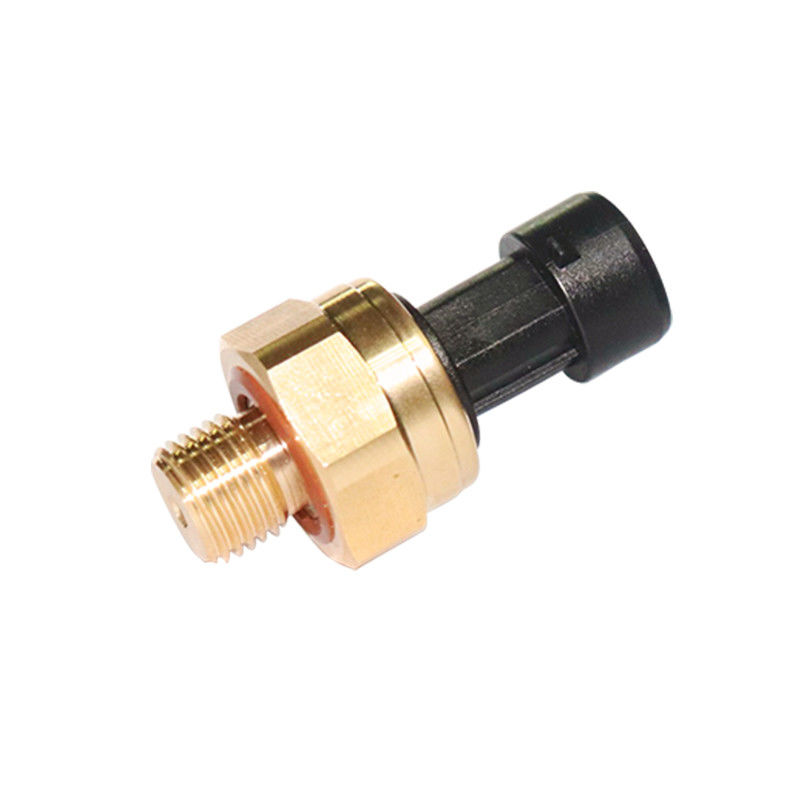

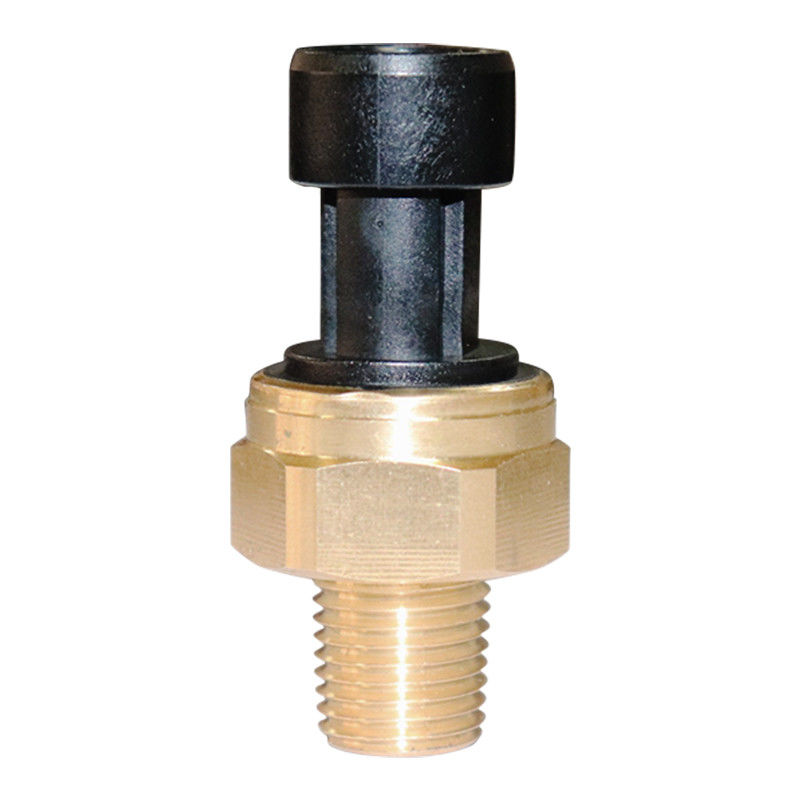

High Quality Auto Parts Oil Water Air Pressure Sensor
Mini brass pressure sensor with low cost unit price $6 USD,suitable for air oil water,ready to ship now.
|Applicable media||Liquid, gas and steam|
|Cell||Ceramic capacitive pressure sensor|
|Pressure measurment||Gauge Pressure, Sealing pressure|
|Power supply||4.75-5.25 VDC|
|Accuracy(linearity,Hysteresis and Repeatability)||1%F.S.|
|Temperature drift(zero)||±0.15% F.S. (-20~70ºC)|
|Temperature drift(full range)||±0.15% F.S. (-20~70ºC)|
|Electrical connection||Cable Outlet|
|Mechanical connection||1/4 NPT|
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
A: 12 month from shipment date, for non-man-made damages.
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
Contact Person: Leo Zhang
