24V Voltage Submersible Level Sensor Stainless Steel Housing Material For Tank / Deep Well

China Hefei WNK Smart Technology Co.,Ltd certification
China Hefei WNK Smart Technology Co.,Ltd certification
I'm Online Chat Now

24V Voltage Submersible Level Sensor Stainless Steel Housing Material For Tank / Deep Well

24V Voltage Submersible Level Sensor Stainless Steel Housing Material For Tank / Deep Well
24V Voltage Submersible Level Sensor Stainless Steel Housing Material For Tank / Deep Well 24V Voltage Submersible Level Sensor Stainless Steel Housing Material For Tank / Deep Well

Large Image :  24V Voltage Submersible Level Sensor Stainless Steel Housing Material For Tank / Deep Well

Product Details:
Place of Origin: China
Brand Name: WNK
Certification: CE
Model Number: WNK8010
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Packaging Details: standard export package
Delivery Time: 5-8 working days
Supply Ability: 1000 pieces per week.
Detailed Product Description
Analog: 4-20mA, 1-5V, 0.5-4.5, 0-5V, 0-10V, I2C Digital: Hart, RS485 Etc
Measure Range: 0-1~200mH2O Media: Liquid, Water
Accuracy: ±0.25% FS/year, ±0.5% FS/year Housing Material: Stainless Steel
Power Supply: 24V/12V/5V/3.3V Protection: IP68
High Light:

stainless steel level sensor

,

liquid level sensor

,

Submersible Level Sensor Stainless Steel Housing

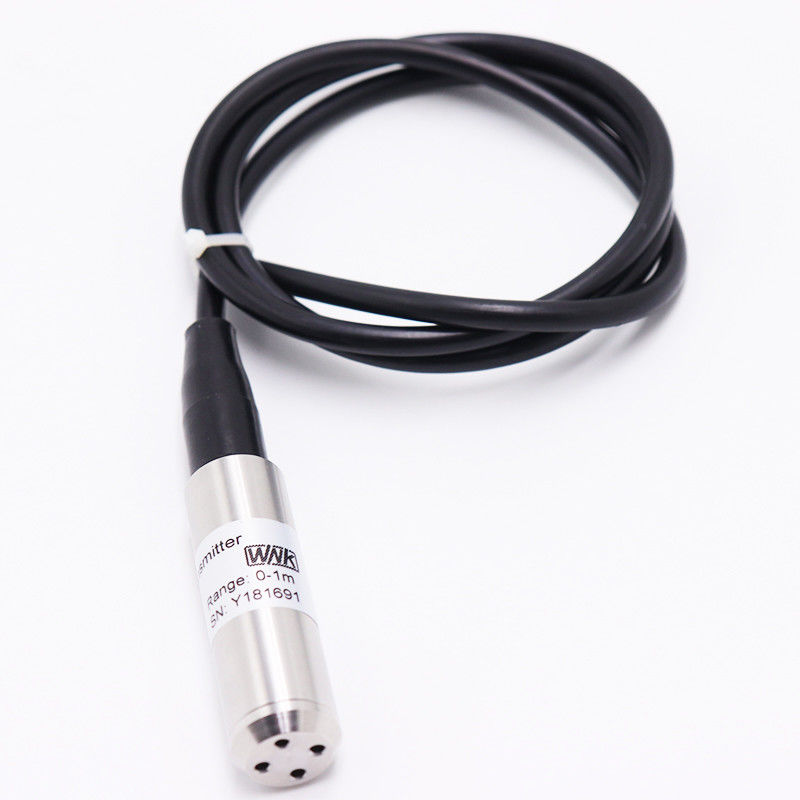

24V Voltage Submersible Water Level Sensor/Level Transmitter for Tank/Deep Well/Pump

Product Description

1. Our WNK8010 liquid leve sensor with high performance diffused silicon piezoresistive pressure sensor as the measuring element.

2. This product comes with compact profile, easy to install,it can measure the level height directly when through into the liquor.









Product Specification

Output signals
Output 4-20mA, 0-10mA, 0-5V, 1-5V,Customization
Measured range
Measured range 0-0.5~200mH2O
Max overload 150% of sensor range
Parameters
Applicable media Liquid, Water
Accuracy ±0.2% FS/year, ±0.5% FS/year
Stability ±0.25% FS/year

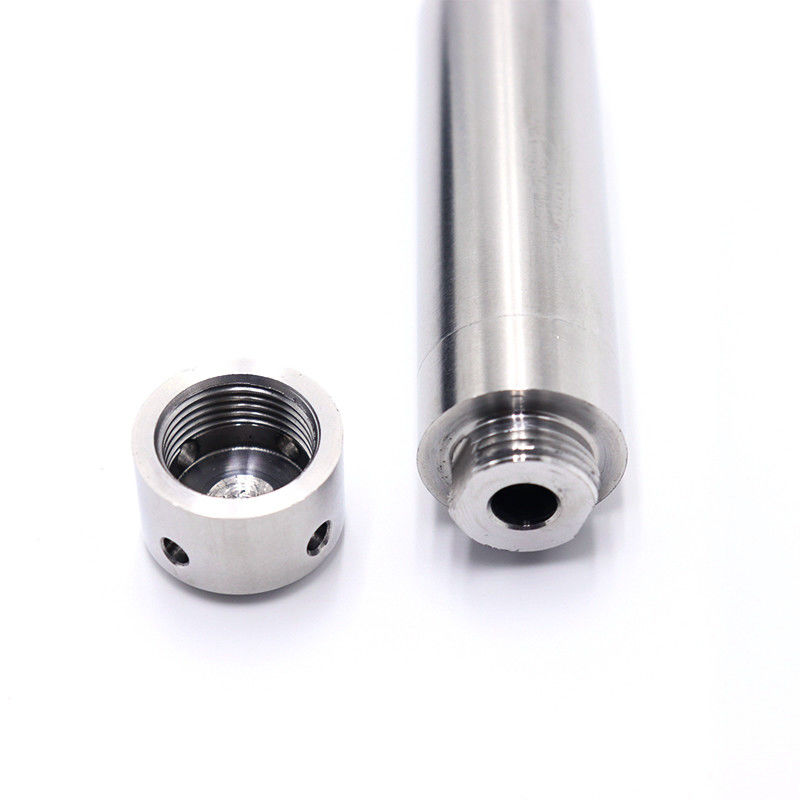

Housing material Stainless steel
Cable material Polyvinyl Fluoride, PTFE
Power supply 24V DC
Ambient temperature -20~85
Process temperature -20~85
Compensation temperature -20~85℃
Protection class IP68

Product Dimension & Installation

24V Voltage Submersible Level Sensor Stainless Steel Housing Material For Tank / Deep Well 0

Ordering sheet
IP68 1-5V 4-20mA Submersible Liquid Level Sensor for Water Tank-Factory Price
Packaging & Shipping

4-20mA Industrial Liquid Water Piezo Hydraulic Pressure Sensor



Company Information

4-20mA Industrial Liquid Water Piezo Hydraulic Pressure Sensor

4-20mA Industrial Liquid Water Piezo Hydraulic Pressure Sensor



FAQ

Q: Are you manufacturer or trading company?

A: We are professional pressure/level/temperature measurement manufacturer with more than 14 years of experience.



Q: What’s your quality control system?

A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.



Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.



Q: What is yor MOQ?

A: We have no MOQ limits,1 pc for testing is acceptable.
