Product Details:
Payment & Shipping Terms:
|
| Input: | RTD, T/C | Output: | 4-20mA 2 Wire |
|---|---|---|---|
| Temperature Range: | -200~800 ℃ | Display: | No |
| Power Supply Range: | 24V (standard) | Accuracy: | 0.5% |
| High Light: | high accuracy temperature transmitter,field mounted temperature transmitter |
||

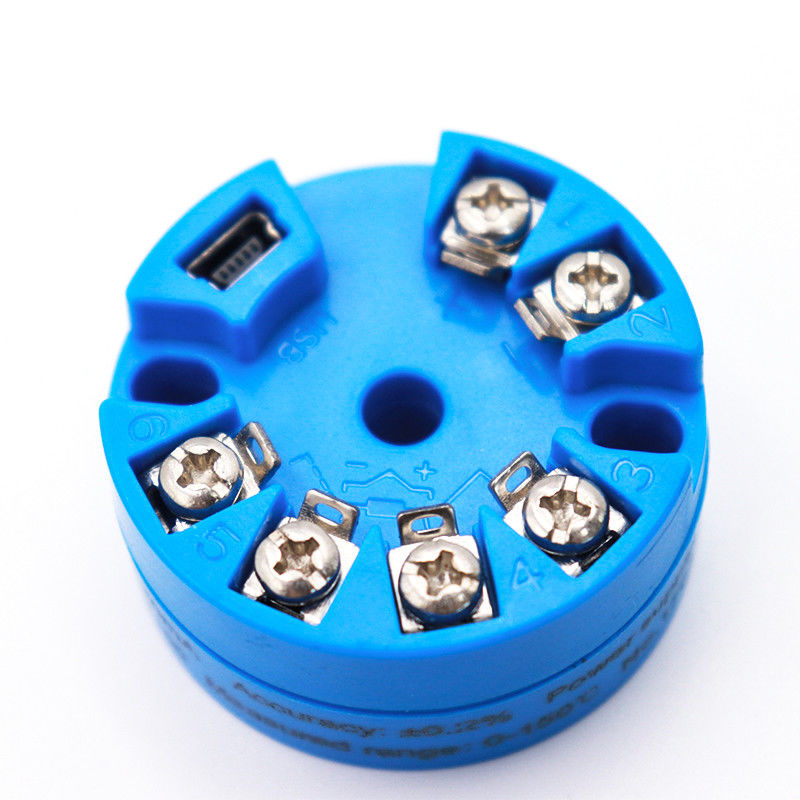

Smart 4-20mA Head Mounted Temperature Transmitter with Universal Input
Instruction
WNK621 4~20mA two-wire integrated circuit board is specifically designed for intelligent temperature transmitters. With microprocessor as the core of its highly-integrated circuit, it reliably achieves thermal resistance/thermocouple signal acquisition, processing and loop output, and also provides single bus digital interface and dedicated configurator to achieve full digital debugging and calibrating. it particularly well-suited for producing and manufacturing two-wire intelligent temperature transmitters.
Features
Technical Data
| Power supply: | DC 8～36V( Recommend DC 24V ) |
| Signal Range: | Pt100 (-200～650℃) Pt1000 (-50～300℃) |
| Cu50 (-50～150℃) Cu100 (-50～150℃) | |
| K(-250～1300℃),S(-50～1700℃) | |
| R(-50～1700℃), B(0～1800℃) | |
| N(-250～1000℃),E(-250～800℃) | |
| J(-200～1100℃),T(-250～400℃) | |
| ±20mV,±60mV(Linear voltage,Resolution 0.002mV) | |
| ±500.0mV(Linear voltage,Resolution 0.1mV) | |
| R400(0～400Ω Linear resistance,Resolution 0.01Ω) | |
| R2000(0～2000Ω Linear resistance,Resolution 0.1Ω) | |
| Temperature resolution: | Thermocouple 0.1℃(Measuring and Transmitting) / Thermal Resistance 0.01℃(Measuring and Transmitting) |
| Sampling Rate: | 5 times/second |
| Current output resolution: | 2uA |
| Output accuracy | ±0.2％ |
| Temperature drift: | <50ppm/℃ |
| Operating temperature: | Temperature－20～+80℃ Humidity <85%RH. |
| Power Consumption: | Less than 0.2W |
| Dimension: | Diameter 44mm,Height 20mm,Mounting hole 33~36mm |
