RTD 20mA Hart Resistance Pt100 Temperature Sensor

RTD 20mA Hart Resistance Pt100 Temperature Sensor

Hart Resistance Pt100 Temperature Sensor

RTD Pt100 Temperature Sensor

44mm Pt100 Temperature Transmitter

Place of Origin:

China

Brand Name:

WNK

Certification:

CE

Model Number:

WNK65

Contact Us
Request A Quote
Product Details
Output Signals:
4-20mA Hart
Power Supply:
9-32V
Input:
Thermocouple, RTD, MV, Resistive Sensor
Dimension:
44mm(diameter)
Accuracy:
0.5%FS
Temperature Range:
-40℃~+85℃
Housing Material:
Plastic
Measured Media:
Liquid Gas Steam
Highlight:

Hart Resistance Pt100 Temperature Sensor

,

RTD Pt100 Temperature Sensor

,

44mm Pt100 Temperature Transmitter

Payment & Shipping Terms
Minimum Order Quantity
1 Piece
Packaging Details
Neutral carton packing or as per your requirement.
Delivery Time
5-8 Work Days
Payment Terms
D/P, T/T, Western Union,Paypal
Supply Ability
6000Piece/ Month
Product Description

4-20mA/Hart Resistance Type PT100 Smart Temperature Transmitter Module



Product Description

Universal Input Isolation Smart Temperature Transmitter
WNK65 is suitable for four types of thermal resistors including Cu50, Cu100, PT100, PT1000 and eight types of thermocouple including E, J, B, K, N, R, S, T type. And it supports measurement of minivolt signal of -10~100mV and-100~1000mV, and resistive signal of 0~400Ω and 0~4000Ω. Isolation voltage is DC1000V.

1. Supply power:DC9V~32V;
2. Output signal 4-20mA with HART protocol digital communication ( two-wire ), HART communication does not influent 4-20mA
analog output;
3. Communicator or PC configuration and debugging software can do remote management;
4. Code end compensation of thermalcouple can choose internal temperature sensor, external temperature sensor, fixed temperature
value and forbide code end compensation;
5. Internal code end compensation accuracy: ±0.5ºC
6. Damp: 0-64 seconds adjustable;
7. Data refreshing frequency: 4times/second;
8. Stability: ±0.2%/year;
9. Woring ambient temperature range: -40ºC~+85ºC;
10. Dimensions: φ44mm;
11. Mounting hole distance: 33mm;
12. Anti mechanical vibration: 10~60HZ,0.21mm sine wave;
13. Anti radio frequency interference: IEC61000-4-3, 20V/M,80~1000MHZ

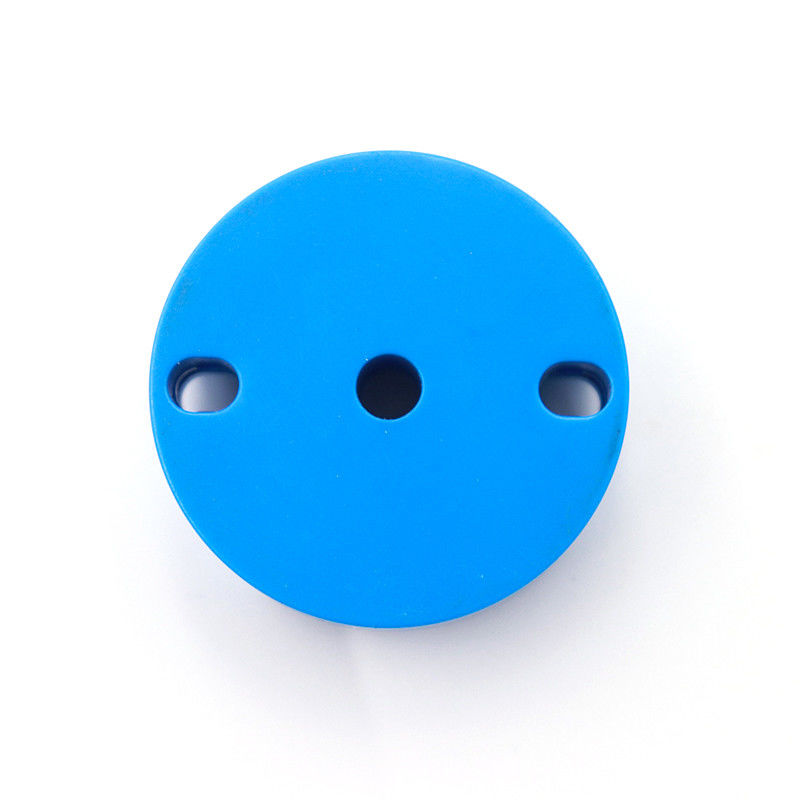

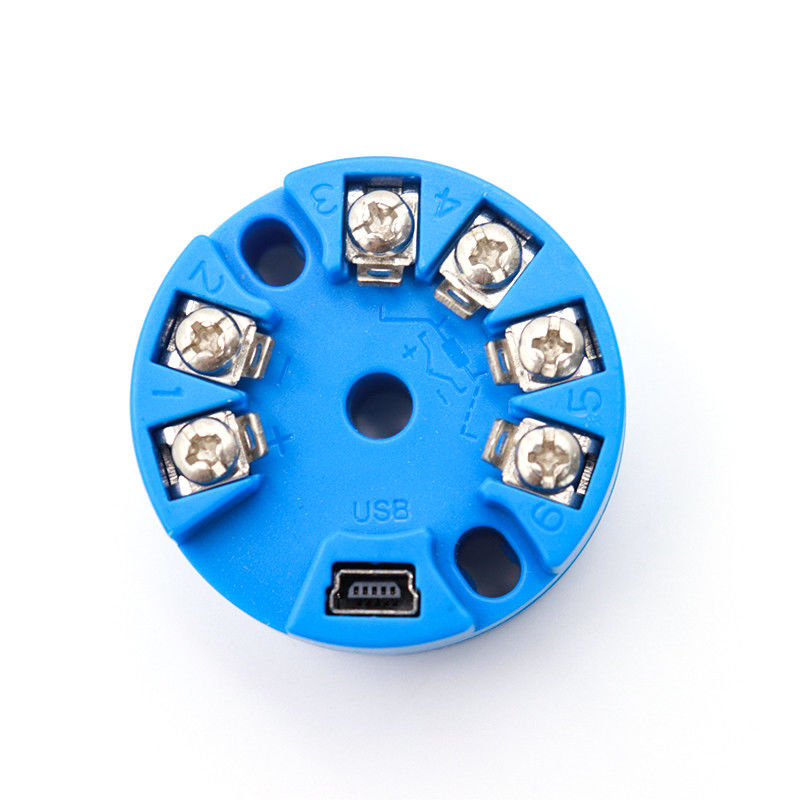

RTD 20mA Hart Resistance Pt100 Temperature Sensor 0RTD 20mA Hart Resistance Pt100 Temperature Sensor 1RTD 20mA Hart Resistance Pt100 Temperature Sensor 2
