| Housing Material: | Stainless Steel 304 | Output: | 0.5-4.5v, 4-20mA, I2C |
|---|---|---|---|
| Accuracy: | 0.5%FS 1%FS | Compensation Temperature: | -20-70C |
| Protection: | IP65/ IP67 | Supply Voltage: | 5V/ 24V |
| Working Temperature: | -45-85C | Ambient Temperature: | -45-85C |
| Pressure Type: | Gauge Pressure, Sealing Pressure, Absolute Pressure | Pressure Range: | 0-20Kpa-50Mpa |
| High Light: | 20mA IOT Pressure Sensor,Diffused Silicon IOT Pressure Sensor,IP67 IOT Pressure Sensor |
||

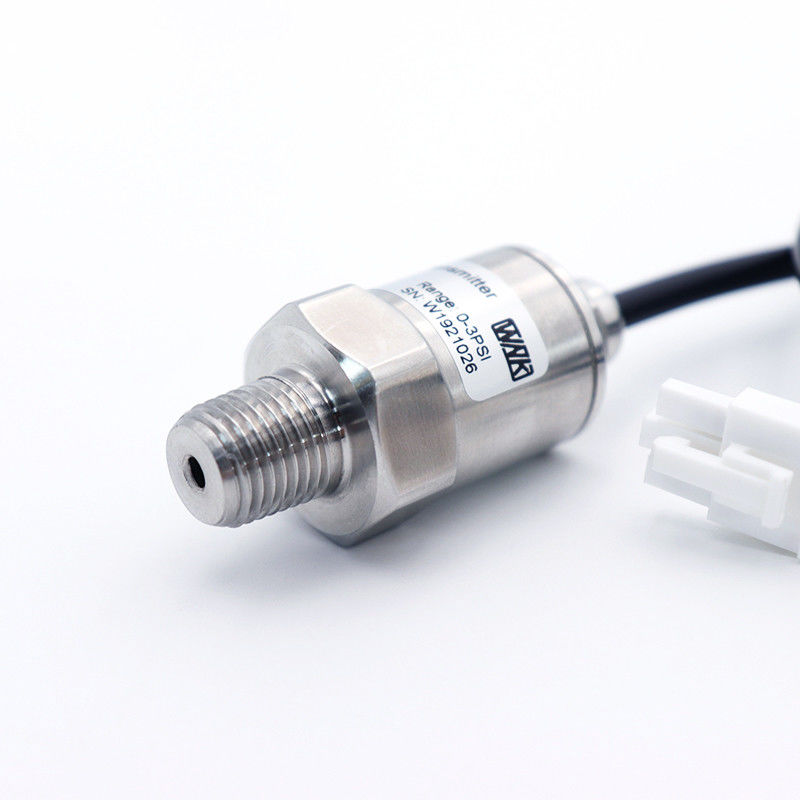

Low cost Diffused Silicon Oil Water Air Pressure Sensor 4-20mA
Product Description
WNK81MA is a series of high performance compact pressure transmitter by using ASIC
signal conditioning chip and diffused silicon oil filled pressure sensor. It has features of
anti-corrosion, anti-wear, shock resistance and vibration resistance. In addition to general
ranges of normal sensors, its most outstanding characteristic is the positive and negative
gauge pressure function. With high output and wide range, WNK81MA is especially suitable
for manufacturing of high-performance industrial control pressure transmitter and harsh
environment pressure measurement
| Pressure Type | gauge pressure, sealing pressure, absolute pressure |
| Output | 0.5-4.5V, 4-20MA, I2C |
| Accuracy | 0.5%FS, 1%FS |
| Compensation temperature | -20-70C |
| Protection | IP65/IP67 |
| Housing material | stainless steel 304 |
| Electrial connector | Packard,M12*4P,Cable outlet,Mini DIN 43650,GX12-3 |
| Process connector | G1/4,1/4-18NPT,1/8-27NPT,M14×1.5,M12×1.5,1/4-19PT,7/16-20UF(female) |
