Piezoresistive IP68 Oil Filled Diffusion Silicon Sensor

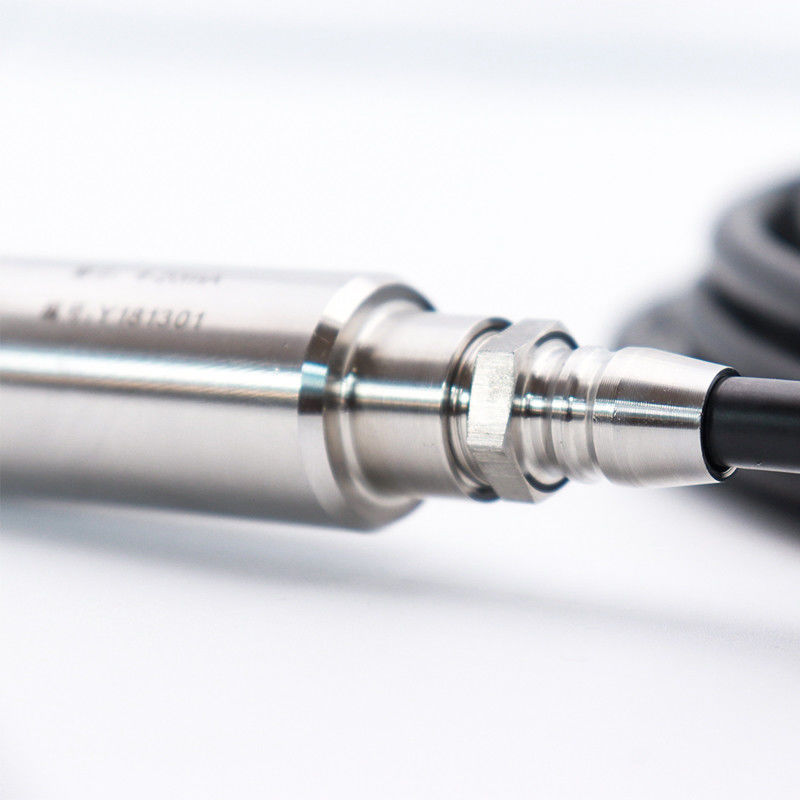

Large Image : Piezoresistive IP68 Oil Filled Diffusion Silicon Sensor

Product Details:

Place of Origin:	China
Brand Name:	WNK
Certification:	CE
Model Number:	WNK8010-TT

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Packaging Details:	standard export package
Delivery Time:	5-8 working days
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	3000 pieces per month.

Contact Now

Detailed Product Description

Analog:	4-20mA, 1-5V, 0.5-4.5, 0-5V, 0-10V, I2C	Digital:	Hart, RS485 Etc
Measure Range:	0-1~200mH2O	Media:	Liquid, Water
Accuracy:	±0.5% FS/year, ±1% FS/year	Housing Material:	Stainless Steel
Power Supply:	24V/12V/5V/3.3V	Protection:	IP68
Highlight:	SS Diffusion Silicon Sensor , IP68 Diffusion Silicon Sensor , Diffused Silicon Piezoresistive Pressure Sensor

Sea Water Flow Sensor Meter Adopting Diffusion Silicon Oil-filled Sensor

Product Description

1. Our WNK8010 liquid leve sensor with high performance diffused silicon piezoresistive pressure sensor as the measuring element.
2. This product comes with compact profile, easy to install,it can measure the level height directly when through into the liquor.

Output signals
Output	4-20mA, 0-10mA, 0-5V, 1-5V,Customization
Measured range
Measured range	0-0.5~200mH₂O
Max overload	150% of sensor range
Parameters
Applicable media	Liquid, Water
Accuracy	±1% FS/year, ±0.5% FS/year
Stability	±0.25% FS/year
Housing material	Stainless steel
Cable material	Polyvinyl Fluoride, PTFE
Power supply	24V DC
Ambient temperature	-20~85℃
Process temperature	-20~85℃
Compensation temperature	-20~85℃
Protection class	IP68

Piezoresistive IP68 Oil Filled Diffusion Silicon Sensor 0

Packaging & Shipping

4-20mA Industrial Liquid Water Piezo Hydraulic Pressure Sensor

Company Information

FAQ

Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer with more than 14 years of experience.

Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.

Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.

Q: What is yor MOQ?
A: We have no MOQ limits,1 pc for testing is acceptable.
