| Output: | 4~20mA, 0-10mA, 0-5V, 1-5V | Level Range: | 0-200m H2O |
|---|---|---|---|
| Overload: | 1.5 Times | Measuring Medium: | Liquid Compatible With Ss316 |
| Accuracy: | 0.2%FS, 0.5%FS | Stability: | ±0.25%FS |
| Housing Material: | Stainless Steel 304 | Cable Material: | Polyvinyl Fluoride, PTFE |
| Power Supply: | 24VDC | Ambient Temp: | -20~85℃ |
| High Light: | 20mA Liquid Level Sensor,SS304 Liquid Level Sensor,24VDC Liquid Level Sensor |
||
High Accuracy 4-20ma Level Transmitter Level Sensor Liquid Tank Level Meter

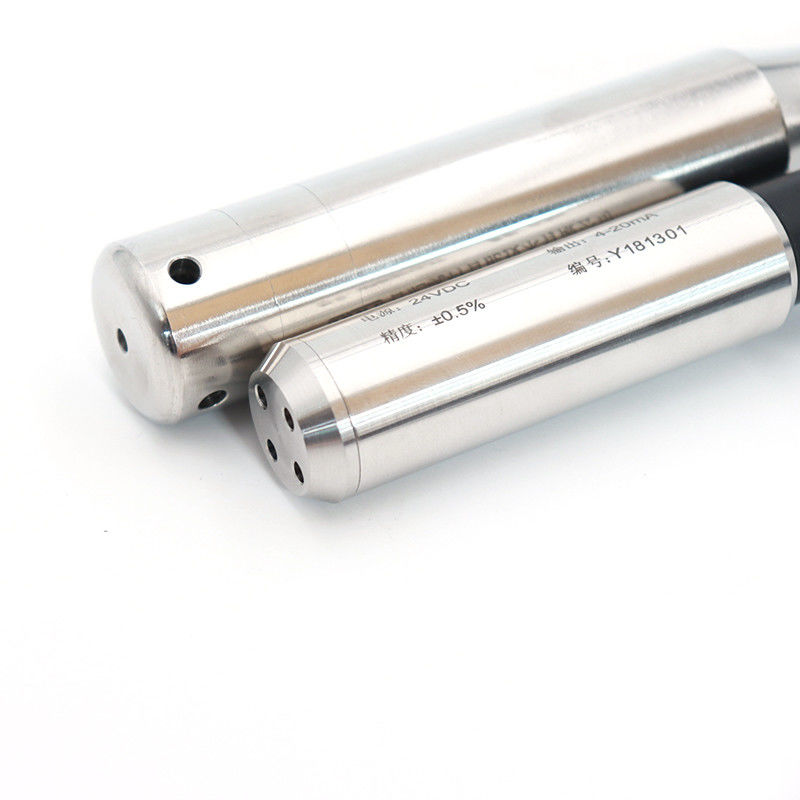

WNK8010 is a submersible water level sensor transducer suitable for liquid level or pressure and depth measurement. It is made of stainless steel housing. Its all stainless steel, suitable for immersion in most industrial liquids and oils.The welded housing is tested in-house via a helium leak tester to ensure proper protection. Each submersible pressure transducer features a removable nose cone at the sensor which protects the diaphragm from damage.Ventilation tube in the cable automatically compensates for changes in atmospheric pressure above the tank.
Quick information:
Application: water level, fuel level and other liquid level; well depth; groundwater level; bore well, underground water, river etc,.
Detailed Technical Info:
| Submersible Level Sensor | |
| Adopting diffusion silicon oil-filled sensor | |
| Output | 4~20mA, 0-10mA, 0-5V, 1-5V and others |
| Level range | 0-0.5~200mH2O |
| Overload | 150% of sensor range |
| Measuring medium | Liquid |
| Accuracy | ±0.2%FS, ±0.5%FS |
| Stability | 0.25%FS/ year |
| Housing material | Stainless steel |
| Cable material | Polyvinyl Fluoride, PTFE |
| Power Supply | 24VDC |
| Ambient temperature | -20~85℃ |
| Process temperature | -20~85℃ |
| Compensation temperature | -20~85℃ |
| Protection class | IP68 |
Competitive Advantages:
1. Founded in 2004, over 13 year professional research, developing and production experience;
2. Experienced and professional R&D team to provide customization services;
3. Producing transmitter core elements- PCB, supplying PCB for transmitter producers;
4. Highest accuracy up to 0.05%FS;
5. Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs;
6. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
Product Show
Company Information
FAQ
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
A: 12 month from shipment date, for non-man-made damages.
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea.
