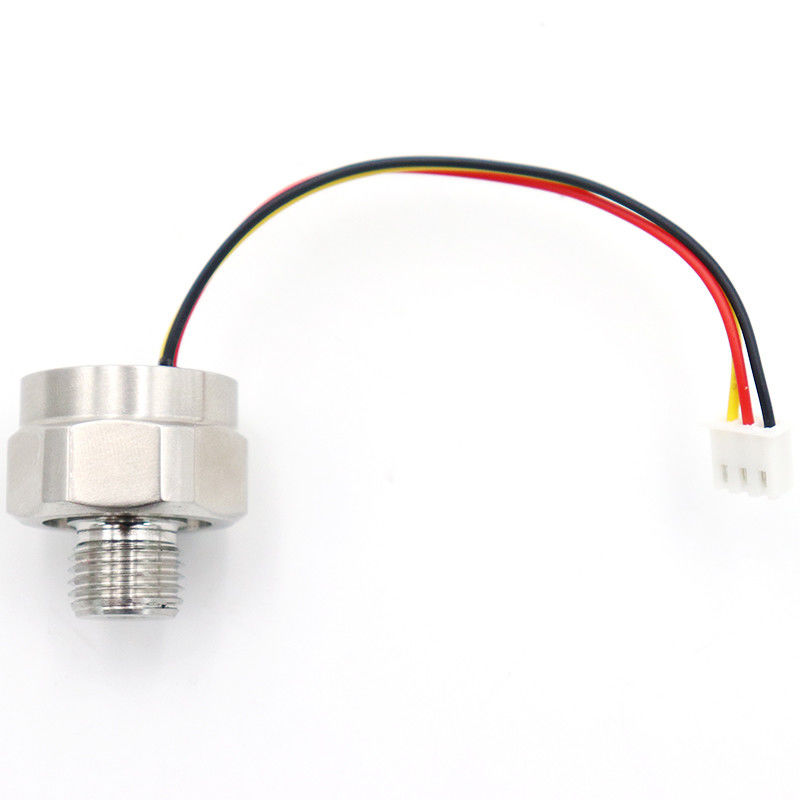

Ceramic Capacitive IP67 70MPa IOT Pressure Sensor

China Hefei WNK Smart Technology Co.,Ltd certification
China Hefei WNK Smart Technology Co.,Ltd certification
I'm Online Chat Now

Ceramic Capacitive IP67 70MPa IOT Pressure Sensor

Ceramic Capacitive IP67 70MPa IOT Pressure Sensor
Ceramic Capacitive IP67 70MPa IOT Pressure Sensor Ceramic Capacitive IP67 70MPa IOT Pressure Sensor

Large Image :  Ceramic Capacitive IP67 70MPa IOT Pressure Sensor

Product Details:
Place of Origin: Hefei, CN
Brand Name: WNK
Certification: CE, SGS, ISO9001
Model Number: WNK811
Payment & Shipping Terms:
Minimum Order Quantity: 5 pieces
Price: Negotiation
Packaging Details: Sea-Worthy Packing or Air-Worthy Packing
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 8000pcs per month
Detailed Product Description
Output: 4~20mA, I2C, SPI, 0.2-2.9V, 0-5V And Customization Pressure Range: 0-70MPa
Accuracy: 0.5%FS, 1%FS, 2%FS Operation Temperature: -40~150℃
Ingress Protection: IP67 Respond Time: ≥1ms
OEM: OEM, ODM Welcome Overload: 2x FS
Proof Pressure: 3x FS Housing Material: SS304
Sensor Type: Ceramic Capacitive Sensor, Diffused Silicon Sensor
High Light:

70MPa IOT Pressure Sensor

,

Ceramic Capacitive IOT Pressure Sensor

,

IP67 IOT Pressure Sensor



Low Cost IOT Pressure Sensor with Spi I2c 0.2-2.9V 4~20mA Output



WNK811 is a series of high performance mini pressure transducer by using ASIS signal conditioning chip and 316L diaphragm diffused silicon oil filled pressure sensor .It has features of anti-corrosion ,anti-wear ,shock resistance and vibration resistance.With precise temperature characteristic compensation, it can be used reliably and stably.

Application

WNK811 is solution for below applications
•Pressure measurement of gas, vapor or liquid in various areas;
•Liquid level, volume or mass measurement;
•Integrated in a variety of user-defined solutions;
•Smart water and gas management, smart fire controlling, automotive electronics controlling, air compressor, HVAC, pump, valve and etc



Detailed Technical Info:



IOT Mini Pressure Sensor
Pressure range  0~15MPa
Pressure type Gauge, Absolute, Sealing gauge
Overpressure 300%F.S. (≤70kPa) 200%F.S.(≤25MPa)
Output signals 0.2-2.9V, SPI, I2C, 0.5-4.5V, 1-5V, 0-5V, 0~10V, 4~20mA
Accuracy ±0.5%FS, ±1%FS
Compensation Temp. -20~70℃
Operation Temp. -40~125℃
Storage Temp. -40~125℃
Zero Temp. Drift ±1.5%FS Max (-20~85℃)
Full Scale Temp. Drift ±1.5%FS Max (-20~85℃)
Pressure Connection G1/4, 7/16-SAE, NPT, and other outputs
Ingress Protection IP67
Housing SS316, SS304





Competitive Advantages:

1. Founded in 2004, over 13 year professional research, developing and production experience;
2. Experienced and professional R&D team to provide customization services;
3. Producing transmitter core elements- PCB, supplying PCB for transmitter producers;
4. Highest accuracy up to 0.05%FS;
5. Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs;
6. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.


Product Show

Ceramic Capacitive IP67 70MPa IOT Pressure Sensor 0Ceramic Capacitive IP67 70MPa IOT Pressure Sensor 1

Company Information

Ceramic Capacitive IP67 70MPa IOT Pressure Sensor 2

FAQ



Q: Are you manufacturer or trading company?

A: We are professional pressure/level/temperature measurement manufacturer with more than 13 years of experience. Our factory address is: 4/F,Bldg #6, No.168, Xiangzhang Road, High-tech District, 230088, Hefei, Anhui province, China.



Q: What’s your quality control system?

A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.



Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.



Q: Can we use our logo on the products? Do you provide customized products?

Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome



Q: What is yor MOQ?

A: We have no MOQ limits, small quantity order is acceptable.



Q: What's the transport?

A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
