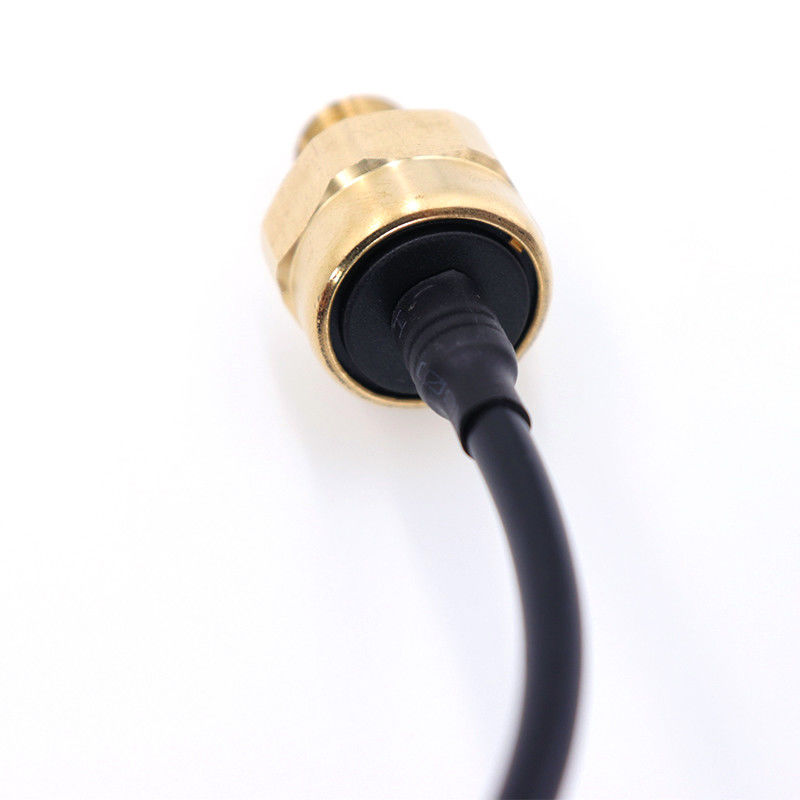

4.5v Brass Water Gas Steam Pressure Sensor For HVAC

4.5v Brass Water Gas Steam Pressure Sensor For HVAC

Water Gas Steam Pressure Sensor

Brass Steam Pressure Sensor

HVAC Steam Pressure Sensor

Place of Origin:

China (Mainland)

Brand Name:

WNK

Certification:

CE

Model Number:

WNK83MA

Contact Us
Request A Quote
Product Details
Accuracy:
1%
Measured Media:
Liquid, Gas And Steam
Pressure Range:
0-2000kPa
Output Signal:
0.5-4.5 VDC
Power Supply:
4.75-5.25 VDC
Operating Temperatures:
-20 To 70 ℃
Material:
Brass
Process Connection:
1/4NPT
Electrical Connection:
Cable Outlet
Highlight:

Water Gas Steam Pressure Sensor

,

Brass Steam Pressure Sensor

,

HVAC Steam Pressure Sensor

Payment & Shipping Terms
Minimum Order Quantity
1Piece
Price
Negotiation
Packaging Details
standard export carton box
Delivery Time
5-8 work day
Payment Terms
T/T, Western Union
Supply Ability
5000+Piece+perMonth
Product Description


0.5-4.5v Output Brass Water Gas Steam Pressure Sensor For HVAC

Product Description
WNK83mA quarter NPT pressure tranmitter as a practical pressure transmitter made of brass has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its supply voltage is 4.75-5.25v DC and the maximum supply current is 15mA. It can withstand strong working pressures up to 2000kpa. It can act on gas, water or liquid and has strong stability.



Applicable media Liquid, gas and steam
Pressure range 0-2000kPa
Cell Ceramic capacitive pressure sensor
Pressure measurment Gauge Pressure, Sealing pressure
Output 0.5-4.5V
Power supply 4.75-5.25 VDC
Accuracy(linearity,Hysteresis and Repeatability) 1%F.S.
Compensation temperature -20~70ºC
Ambient temperature -40~110ºC
Working temperature -40~110ºC
Temperature drift(zero) ±0.15% F.S. (-20~70ºC)
Temperature drift(full range) ±0.15% F.S. (-20~85ºC)
Electrical connection Cable Outlet
Mechanical connection 1/4 NPT
Housing material Brass

NPT .jpg


Product Display

4.5v Brass Water Gas Steam Pressure Sensor For HVAC 14.5v Brass Water Gas Steam Pressure Sensor For HVAC 2




Company Information

pressure transducer 4-20 ma

Factory

pressure transducer 4-20 ma

Exhibition

pressure transducer 4-20 ma

Our Certificate

pressure transducer 4-20 ma

FAQ

Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer since 2004.

Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.

Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.

Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome

Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.

Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
