Product Details:
Payment & Shipping Terms:
|
| Model Number: | WNK268/WNK808B | Pressure Type: | Gauge Pressure, Differential Pressure |
|---|---|---|---|
| Media: | Air, Gas | Output Signal: | 4- 20mA |
| Pressure Range: | -100Kpa ~ 60MPa | Accuracy: | 0.2% , 0.5% FS |
| Operating Temperature: | -40~85 ℃ | Working Temperature: | -10~70℃ |
| Net Weight: | 347.5g | Place Of Origin: | China |
| High Light: | 20mA Differential Pressure Transmitter,60MPa Differential Pressure Transmitter,Aluminum Intelligent Pressure Transmitter |
||
Product Discription

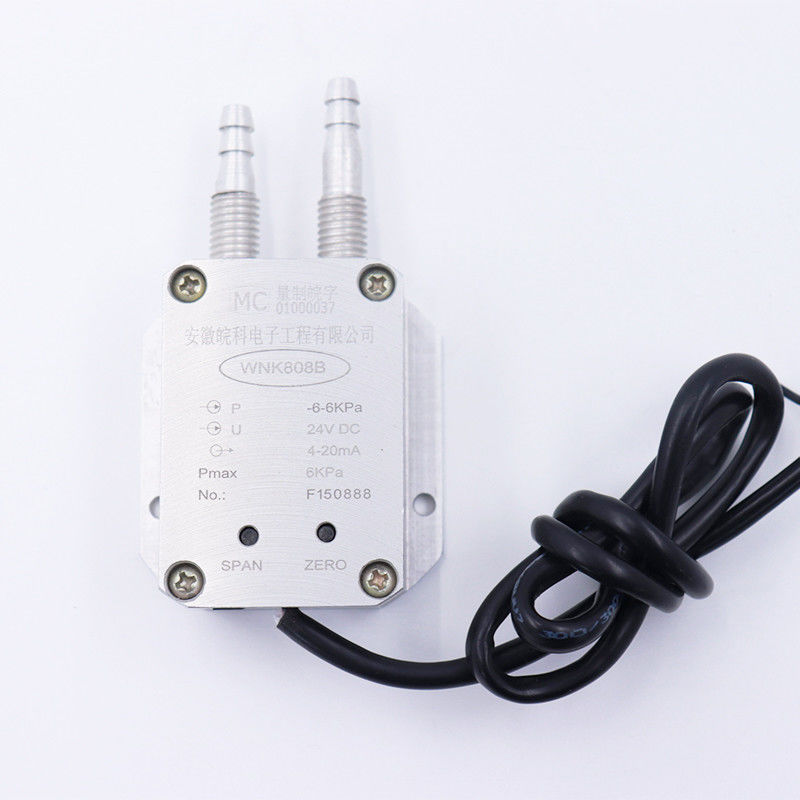

WNK808B intelligent pressure transmitter is assembled with aluminum housing and stress isolation technology. Integrated structure design lead to compact layout. With intelligent compensation technology, it is suitable for wind pressure,wind speed & flow measurement. It is widely used in various industrial fields as well as intelligent building and other construction projects, such as power plant boiler primary air,secondary air measuring, mine ventilation,indoor ventilation, boiler air, pressure of fan, air duct pressure, Metro wind pressure and environment wind pressure test.
WNK268 intelligent pressure transmitter is assembled with aluminum housing and stress isolation technology. Integrated structure design lead to compact layout. With intelligent compensation technology, it is suitable for wind pressure, wind speed & flow measurement.
| 4-20mA Wind Micro Differential Pressure Transmitter/Transducer for HAVC | ||||
| Applicable media | Gas, Steam | |||
| Pressure Measurement | Gauge pressure, Differential pressure | |||
| Pressure range | -10Pa~100Pa, -100kPa~+100kPa | |||
| Accuracy | 0.2%, 0.5% | |||
| Stability | 0.8%F.S./Year | |||
| Maximum static pressure | 70 KPa | |||
| Max overload | 250% of sensor range | |||
| Output signals | 4~20mA | |||
| Housing material | Aluminum14 | |||
| Power Supply | EEX ia:10.5~30 V DC | |||
| Non-explosion: 10.5~45V DC | ||||
| Ambient temperature | -40~85ºC | |||
| Compensation temperature | -10~70ºC | |||
| Working temperature | -10~70ºC | |||
Company Profile
FAQ:
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient
pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test
before shipment.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
