Product Details:
Payment & Shipping Terms:
|
| Pressure Range: | 0-0.2 ~ -100kPa; 0~60MPa | Accuracy: | ±0.2%FS, ±0.5%FS, ±1.0%FS |
|---|---|---|---|
| Output: | 4~20mA; 1~5V, 0-10V And Other Analog Outputs | Long-term Stability: | ±0.25% FS/ Year |
| Temp. Compensation: | -10 ~ 70 Deg C | Working Temperature: | -40 ~ 85 Deg C |
| Clamp Outer Diameter: | 50.5mm Or 64mm | Pressure Type: | Gauge, Absolute, Vacuum, Negative Pressure |
| Media: | Medium Compatible With SS304 And SS316L | Explosion Proof: | Intrinsically Safe |
| Electrical Connector: | DIN43650, M12 And Others | ||
| High Light: | 64mm Clamp Sanitary Pressure Sensor,Intrinsically Safe Sanitary Pressure Sensor,SS316L Sanitary Pressure Sensor |
||
4-20ma Sanitary Pressure Sensor For Food And Medical Application

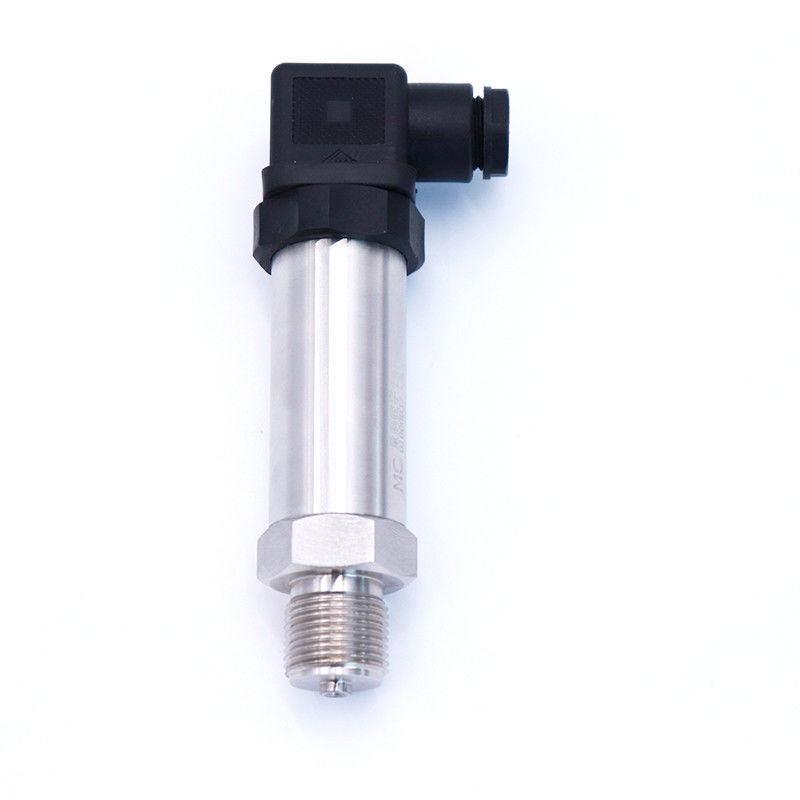

WNK has 13-year professional research, developing and producing experience. Its WNK805 compact pressure transmitter uses high accuracy and high stability chips, each pressure transmitter is well temperature compensated. Diffused silicon strain gage bridge is put on sensitive chips, thus switching of pressure and power is in one and same device, ensuring compact and reliable structure.

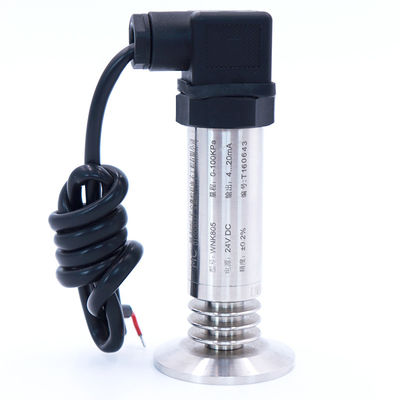

Sanitary type WNK805 is specially designed for food and medical application. It has standard 50.5mm and 64mm outer diameter, connecting with process sanitary pipe directly and easily. Sanitary clamp type pressure transmitter is widely used in food, pharmaceutical, wine making, fermentation and other industries. It is divided in normal sanitary, high temperature cooling type, digital display types.
Features:
Application fields:
1.Food hygiene industry；
2.Paper industry；
3.Sewage level measurement；
4.Beverage tank level measurement；
5.Pipeline level measurement；
6.Pharmaceutical and biological products processing
Detailed Technical Info:
| Compact Pressure Transmittter with SS304 Housing | ||||
| Pressure range | 0-0.2 ~ -100kPa; 0-0.2 ~ 1000kPa 60000kPa | |||
| Rangedown | 100:1 | |||
| Permissible temperature | Compensation Temperature | Media Temperature | Environment Temperature | Storage Temperature |
| -30~70℃ | -20~85℃ | -20~85℃ | -45~85℃ | |
| Accuracy | 0.1%FS, 0.25%FS, 0.5%FS, 1.0%FS | |||
| Output signals | 4~20mA, 0~5V, 1~5V, 0~10V | |||
| Long-term stability | 0.25%FS/year | |||
| Power supply | 24VDC | |||
| Protection class | IP65 | |||
| Electrical connection | DIN43650, M12, Direct lead, Small Hirschman | |||
| Mechanical connection | G1/2, M20*1.5,1/2NPT,1/4NPT,customization | |||
| Repeat | 0.05, 0.1%FS | |||
| Overload | 1.5~2 times | |||
| Housing material | SS304 | |||
Competitive Advantages:
1. Founded in 2004, over 13 year professional research, developing and production experience;
2. Experienced and professional R&D team to provide customization services;
3. Producing transmitter core elements- PCB, supplying PCB for transmitter producers;
4. Highest accuracy up to 0.05%FS;
5. Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs;
6. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
Company Information
Certifications
FAQ
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient
pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test
before shipment.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea.
