IP68 4-20mA Submersible Pressure Transmitter For Level Measurement

China Hefei WNK Smart Technology Co.,Ltd certification
China Hefei WNK Smart Technology Co.,Ltd certification
I'm Online Chat Now

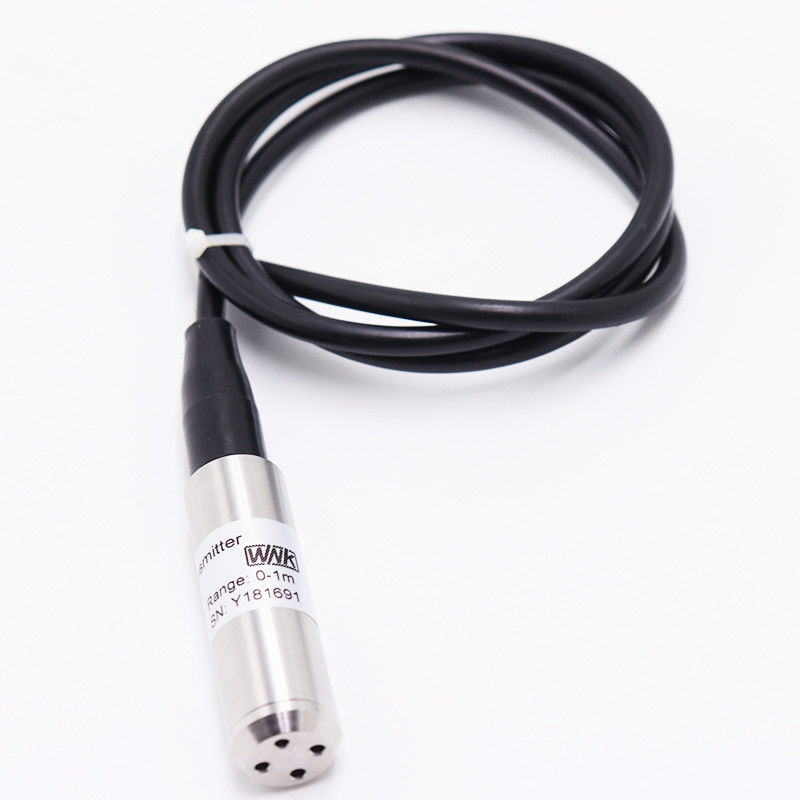

IP68 4-20mA Submersible Pressure Transmitter For Level Measurement

IP68 4-20mA Submersible Pressure Transmitter For Level Measurement
IP68 4-20mA Submersible Pressure Transmitter For Level Measurement IP68 4-20mA Submersible Pressure Transmitter For Level Measurement

Large Image :  IP68 4-20mA Submersible Pressure Transmitter For Level Measurement

Product Details:
Place of Origin: China
Brand Name: WNK
Certification: ISO, CE
Model Number: WNK8010-TT
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: Standard export carton box or according to your requirement
Delivery Time: 5-7 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000 Piece/Pieces per Month
Detailed Product Description
Accuracy: 0.5%F.S Output: 4-20mA, 1-5V,0-10V,0.5-4.5V, I2C
Pressure Range: 0-0.5~200mH2O Power Supply: 24V/12V/5V/3.3V
Measured Media: Water, Liquid Housing Material: Stainless Steel
IP Rating: IP68 Max Overload: 150% Of Sensor Range
Application: For Tank, Pool, River, Underwater Etc Open Vessel Measurement
High Light:

20mA submersible hydrostatic level transmitter

,

20mA submersible water level transmitter

,

IP68 submersible hydrostatic level transmitter

4-20mA Output Liquid Level Gauge Submersible Level Sensor Water Level Sensor Transmitter



Product Description



- Our WNK8010 liquid leve sensor with high performance diffused silicon piezoresistive pressure sensor as the measuring element,

- With the reliable amplified circuit and precision temperature compensation, to transfer the gauge or absolute pressure of measurement medium to standard voltage or current signal.

- This product comes with compact profile, easy to install, it can measure the level height directly when through into the liquor.



Applications



Water tank level measurement and control.

Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).

Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.

Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)



Features



Adopting diffusion silicon oil-filled sensor

Max measure range up to 200 meters or more

High Stability, provide 0.1, 0.2, 0.5 accuracy for option

Factory direct price





Specifications



Output 4-20ma, 0-10ma,0-5v, 1-5v, 0.5-4.5v, customization
level range 0-0.5-200mH2O
overload 150% of sensor range
measuring medium liquid water
accuracy 0.5%fs
stability 0.5%/ year
housing material stainless steel
cable material polyvinyl fluoride, PTFE
power supply 24V DC
ambient temperature -20-85C
process temperature -20-85C
compensation temperature -20-85C
protection class IP68







IP68 4-20mA Submersible Pressure Transmitter For Level Measurement 0







IP68 4-20mA Submersible Pressure Transmitter For Level Measurement 1IP68 4-20mA Submersible Pressure Transmitter For Level Measurement 2

Company Information



IP68 4-20mA Submersible Pressure Transmitter For Level Measurement 3IP68 4-20mA Submersible Pressure Transmitter For Level Measurement 4IP68 4-20mA Submersible Pressure Transmitter For Level Measurement 5IP68 4-20mA Submersible Pressure Transmitter For Level Measurement 6IP68 4-20mA Submersible Pressure Transmitter For Level Measurement 7IP68 4-20mA Submersible Pressure Transmitter For Level Measurement 8




FAQ


Q: Are you manufacturer or trading company?

A: We are professional pressure/level/temperature measurement manufacturer since 2004.



Q: What’s your quality control system?

A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.



Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.



Q: Can we use our logo on the products? Do you provide customized products?

Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome



Q: What is yor MOQ?

A: We have no MOQ limits, small quantity order is acceptable.



Q: What's the transprt?

A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
