|Pressure Range:||0-15Mpa||Output:||I2C, SPI, 0.5-4.5V, 4-20ma And Customization|
|Respond Time:||≥1ms||Overload Pressure:||3-5 Times|
|Working Temperature:||-40 -135°C||Warranty:||12 Months|
|Compensation Temperature:||-20 -70°C||Housing Material:||Stainless Steel 304|

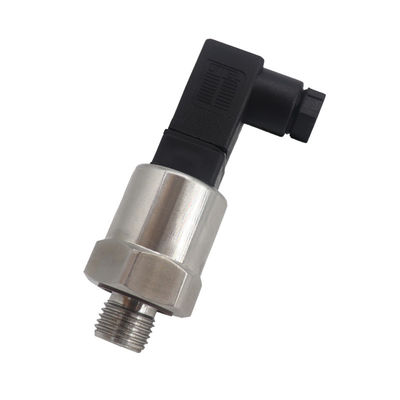

4-20MA IOT Pressure Sensor,
IP65 hydraulic oil pressure sensor,
4-20MA hydraulic oil pressure sensor
|Applicable media||Liquid, Gas, Steam|
|Cell||Ceramic Capacitive Pressure Sensor|
|Pressure measurement||Gauge Pressure, AbsolutePressure, Sealing Pressure|
|Temperature drift(zero)||±0.15% F.S. (-20~85ºC)|
|Temperature drift(full range)||±0.15% F.S. (-20~85ºC)|
|Electrical connection||mini DIN43650|
|Mechanical connection||G1/4, 1/4NPT,1/8NPT, M12*1.5, 7/16-20UNF (female), customazation|
WNK80MA is solution for below applications:
Pressure measurement of gas, vapor or liquid in various areas;
Liquid level, volume or mass measurement;
Integrated in a variety of user-defined solutions;
Smart driking water and nature gas controlling system, samrt fire controlling. automotive electronics controlling, air compressor, HVAC, pump, valve and etc;
