Product Details:
Payment & Shipping Terms:
|
| Analog: | 4-20mA, 1-5V, 0.5-4.5, 0-5V, 0-10V, I2C | Digital: | Hart, RS485 Etc |
|---|---|---|---|
| Measure Range: | 0-1~200mH2O | Media: | Liquid, Water |
| Accuracy: | ±0.25% FS/year, ±0.5% FS/year | Housing Material: | Stainless Steel |
| Power Supply: | 24V/12V/5V/3.3V | Protection: | IP68 |
| High Light: | RS485 12V water level indicator,RS485 water tank automatic sensor,IP68 water tank automatic sensor |
||

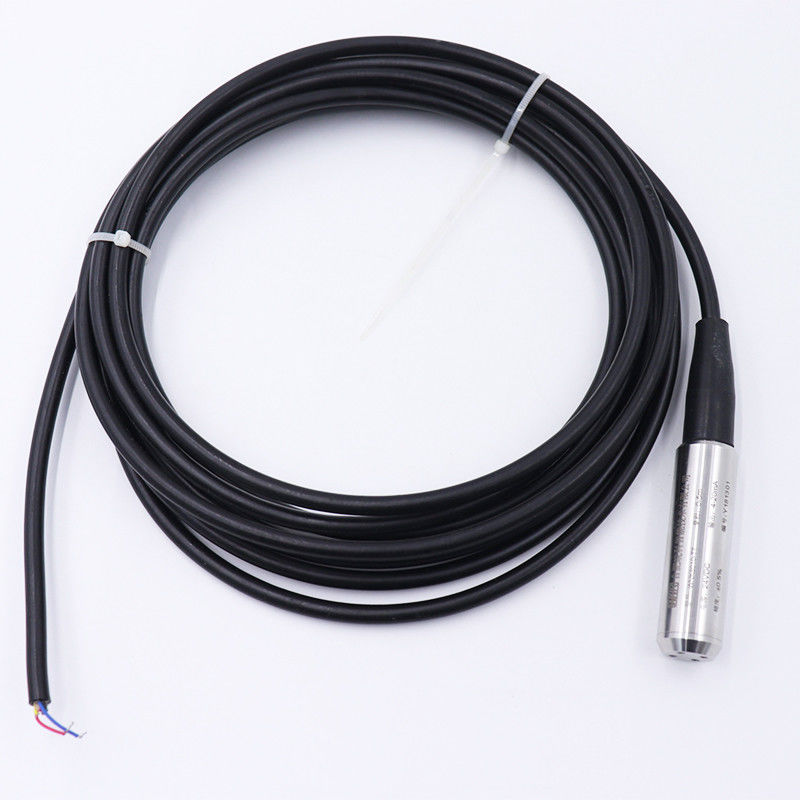

Anti-corrosive 4-20ma Underwater River Water Tank Level Sensor
Product Description
WNK8010 liquid leve sensor with high performance diffused silicon piezoresistive pressure sensor as the measuring element,
- This product comes with compact profile, easy to install, it can measure the level height directly when through into the liquor.
• Adopting diffusion silicon oil-filled sensor
• Max measure range up to 200 meters or more
• High Stability, provide 0.1, 0.2, 0.5 accuracy for option
• Factory direct price
Product Specification
| Output signals | |
| Output | 4-20mA,,0-5V, 1-5V,Customization |
| Measured range | |
| Measured range | 0-0.5~200mH2O |
| Max overload | 150% of sensor range |
| Parameters | |
| Applicable media | Liquid, Water |
| Accuracy | ±0.2% FS/year, ±0.5% FS/year |
| Stability | ±0.25% FS/year |
| Housing material | Stainless steel |
| Cable material | Polyvinyl Fluoride, PTFE |
| Power supply | 24V DC |
| Ambient temperature | -20~85℃ |
| Process temperature | -20~85℃ |
| Compensation temperature | -20~85℃ |
| Protection class | IP68 |
Company Information
Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer with more than 14 years of experience.
Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: What is yor MOQ?
A: We have no MOQ limits,1 pc for testing is acceptable.
