OLED RS485 Electronic Digital Water Level Switch With M12 Connector

China Hefei WNK Smart Technology Co.,Ltd certification
China Hefei WNK Smart Technology Co.,Ltd certification
I'm Online Chat Now

OLED RS485 Electronic Digital Water Level Switch With M12 Connector

OLED RS485 Electronic Digital Water Level Switch With M12 Connector
OLED RS485 Electronic Digital Water Level Switch With M12 Connector OLED RS485 Electronic Digital Water Level Switch With M12 Connector

Large Image :  OLED RS485 Electronic Digital Water Level Switch With M12 Connector

Product Details:
Place of Origin: Anhui, China
Brand Name: WNK
Certification: UL
Model Number: WNK-SLS
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: Standard export carton packing, customized packing
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 5000 pcs per month
Detailed Product Description
Output: 4-20mA, 0-5V, 0-10V, RS485 Accuracy: ≤0.5%FS
Measuring Range: 0...1mH2O To 100mH2O Long-term Stability: ±0.3%FS/year
Power Supply: 12...30V DC Display: OLED
Ingress Protection: IP65 Electrical Connector: M12
Switching: PNP/NPN
High Light:

OLED Electronic Digital Level Switch

,

OLED digital water level sensor

,

RS485 digital float switch



4-20ma 0-5v RS485 Output Liquid Oil Water Tank Level Switch



Description:



The level switch SLS takes the high integrated ARM industrial-grade MCU as the core. The SLS ensures fast-speed and precise level measurement and switch movement by carefully adjustment and combining high-precision AD switch and high stabile pressure sensor. The setup using the three big back-lighted buttons and the display on machine make it very easy for on-site parameters setting.





Features:

  • Liquid and oil media level measurement
  • PNP switching, voltage and current outputs
  • Support MODBUS communication
  • Switching points settable
  • Switching can be set normally open / normally closed
  • Supporting Switching delay
  • Analog output span settable
  • High light switch indicating
  • OLED self-luminous display
  • Display turnable 180°
  • Housing with electrical connection against process connection rotatable 330°
  • Media density settable



Technical Data:

Product name SLS Electronic Smart Level Switch
Measuring range 01mH2O to100mH2O
Accuracy ≤0.5%FS
Supply power 12-30V DC
Temp. Error ±0.02% URL/ºC (Zero/ Full Span)
Long-term Stability ≤±0.3%FS/Year
Analog output accuracy ≤±0.2%FS
Measuring media Water, mineral-based hydraulic fluid and Synthetic oil
Wetted material Stainless steel, Nitrile Butadiene Rubber and PTFE
Output configurations 2×PNP + 0v~5VDC/10VDC + MODBUS
2×PNP + 0mA/4mA~20mADC + MODBUS
Switch current 1.0A(Max.)
Switching type Normally open / closed (settable)
Reponse time < 10ms
Switching motion mode Delay or windows mode
Analog signal output and max ohmic load RL Current output 0/4...20mA, 20...4mA RL≤0.5k
Voltage output 0...5/10v, 5/10...0v RL>10k
Screen display OLED
Menu language Chinese and English
Displaying units kPa, mm, cm, m
Working temperature -30-80ºC
Media temperature 0ºC~60ºC
Storage temperature -40ºC~80ºC
Electromagnetism compatible GB/T 17626.2/3/4-2006
shock resistance ≤10g/10Hz...500Hz(IEC 60068-2-6-2007)
vibration resistance ≤50g/11ms(IEC 60068-2-27-2008)
Protection class IP65| IP68 (Switch body| level detector)

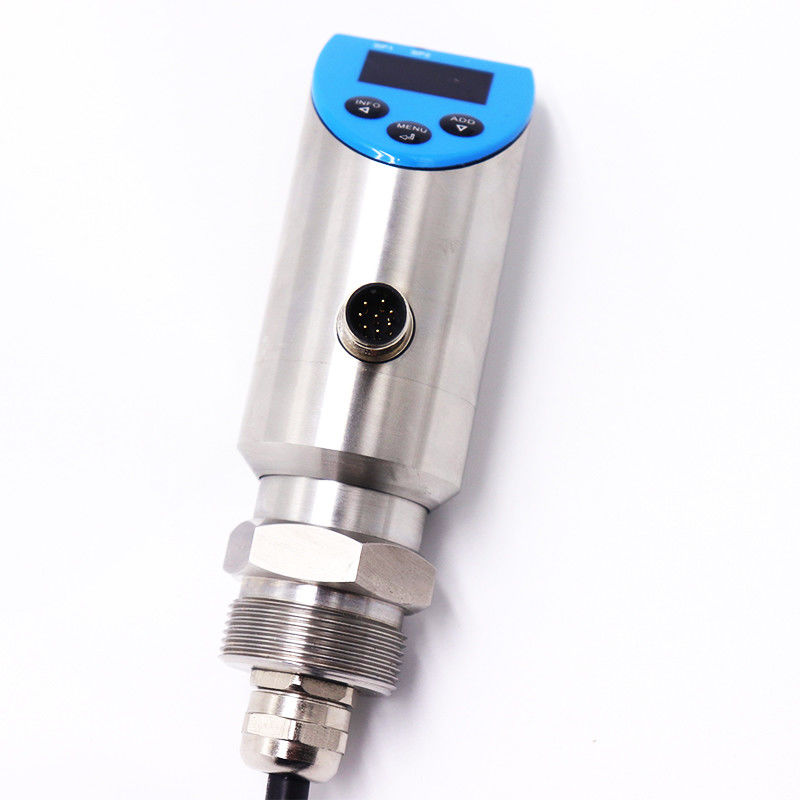

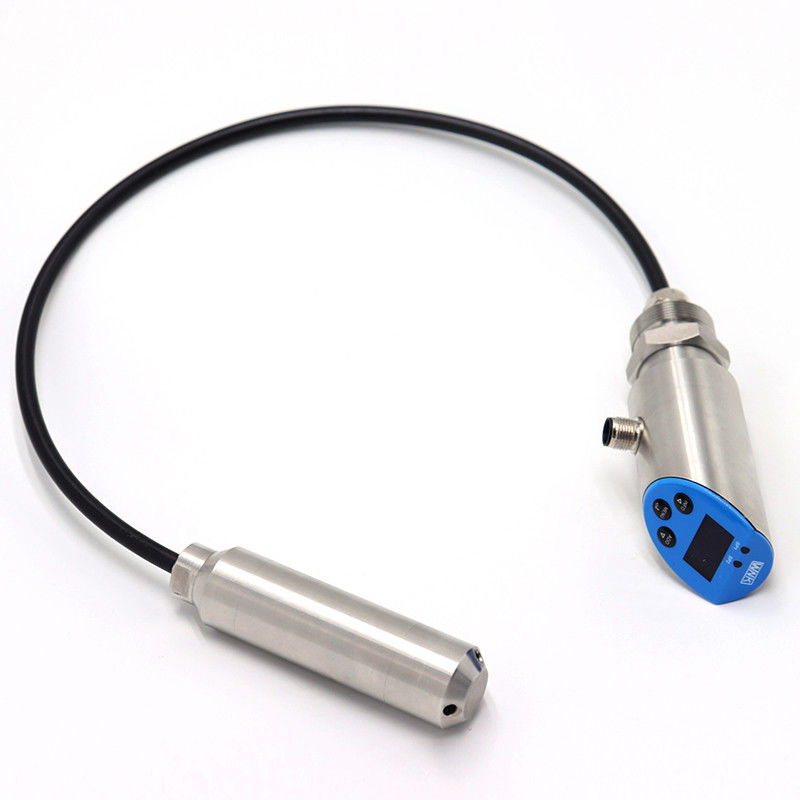

Product Show

OLED RS485 Electronic Digital Water Level Switch With M12 Connector 0OLED RS485 Electronic Digital Water Level Switch With M12 Connector 1

Ordering sheet:

OLED RS485 Electronic Digital Water Level Switch With M12 Connector 2

.Company Information

OLED RS485 Electronic Digital Water Level Switch With M12 Connector 3OLED RS485 Electronic Digital Water Level Switch With M12 Connector 4
