| Analog: | 4-20mA, 1-5V, 0.5-4.5, 0-5V, 0-10V, I2C | Digital: | Hart, RS485 Etc |
|---|---|---|---|
| Measure Range: | 0-1~200mH2O | Media: | Liquid, Water |
| Accuracy: | ±0.25% FS/year, ±0.5% FS/year | Housing Material: | Stainless Steel |
| Power Supply: | 24V/12V/5V/3.3V | Protection: | IP68 |
| High Light: | 200m submersible water level sensor,200m submersible water level transmitter,IP68 submersible water level transmitter |
||

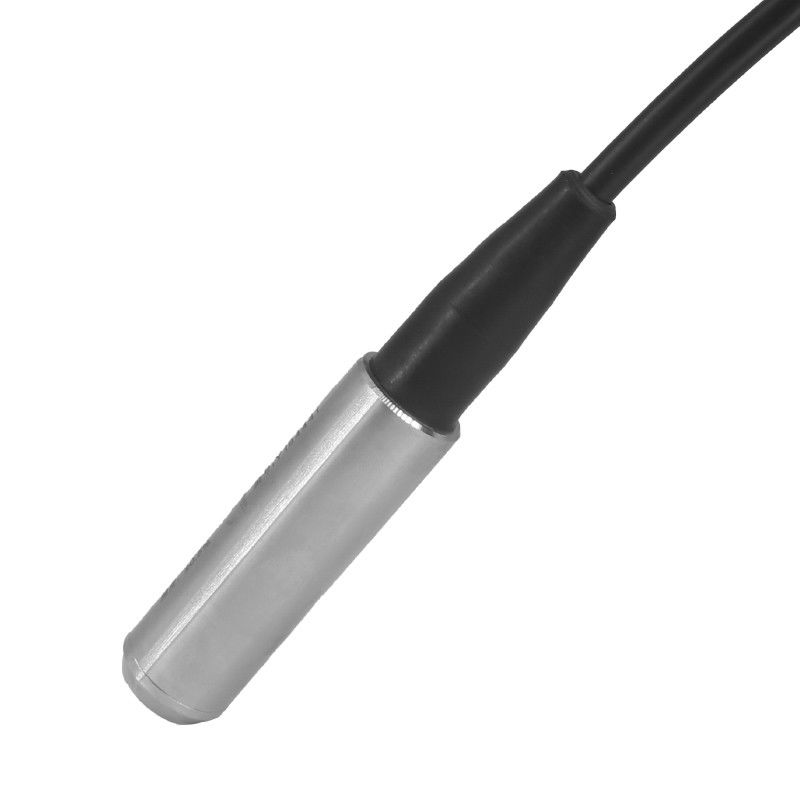

4-20MA 0.5-4.5V I2C Water Level Sensor Submersible Level Sensor Tank
Product Description
WNK8010 liquid leve sensor comes with compact profile, easy to install, it can measure the level height directly when through into the liquor.
• Adopting diffusion silicon oil-filled sensor
• Max measure range up to 200 meters or more
• High Stability, provide 0.1, 0.2, 0.5 accuracy for option
• Factory direct price
Product Specification
| Output signals | 4-20MA, 0-5v, 1-5V, Customization |
| Measured range | 0-0.5-200mH2O |
| Max overload | 150% of sensor range |
| Applicable media | Liquid/ Water |
| Accuracy | ±0.2% FS/year, ±0.5% FS/year |
| Stability | ±0.25% FS/year |
| Housing material | 304SST/ 316SST |
| Cable material | Polyvinyl Fluoride, PTFE |
| Power supply | 12-30V, 5V, 3.3-5V, |
| Protection class | IP68 |
Product Show
Company Information
Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer with more than 14 years of experience.
Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: What is yor MOQ?
A: We have no MOQ limits,1 pc for testing is acceptable.
