Product Details:
Payment & Shipping Terms:
|
| Pressure Range: | 0~600bar | Accuracy: | ±0.2%FS, ±0.5%FS, ±1.0%FS |
|---|---|---|---|
| Output: | 4~20mA; 1~5V, 0-10V And Other Analog Outputs | Long-term Stability: | ±0.25% Full Scale Per Year |
| Temp. Compensation: | -10 ~ 70 Deg C | Working Temperature: | -40 ~ 85 Deg C |
| Explosion Proof: | Intrinsically Safe | Electrical Connector: | DIN43650 (Hirschman), M12, Direct Cable Outlet And Others |
| Media: | Medium Compatible With SS304 And SS316L | Clamp Outer Diameter: | 50.5mm Or 64mm |
| Pressure Type: | Gauge, Absolute, Vacuum, Negative Pressure | Housing Material: | SS304 |
| High Light: | DN25 smart differential pressure transmitter,IP65 smart differential pressure transmitter,DN25 smart pressure transducer |
||

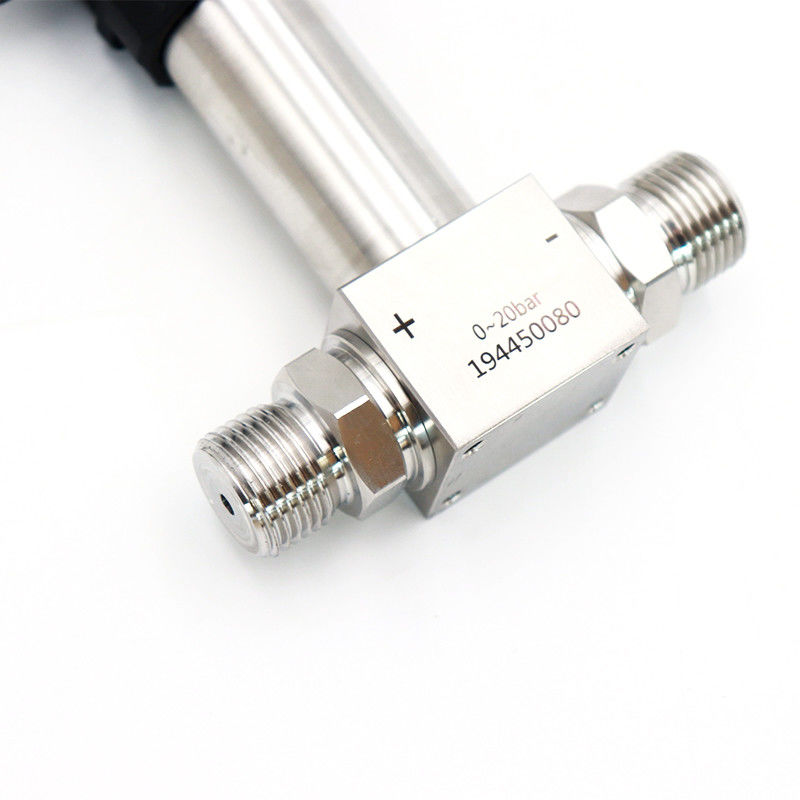

4-20MA 1-5V 1-10V Differential Pressure Sensor Transmitter For Corrosive Media
Product Description
Application fields:
1.Food hygiene industry；
2.Paper industry；
3.Sewage level measurement；
4.Beverage tank level measurement；
5.Pipeline level measurement；
6.Pharmaceutical and biological products processing
Product Spec
| Applicable media | medium compatible with SS304 and SS316L |
| Output | 4-20ma/1-5v/0-10v |
| Power supply | 24V |
| Accuracy | ±0.2%FS, ±0.5%FS, ±1.0%FS |
| Long-term Stability | ±0.25% full scale per year |
| Temp. compensation | -10 ~ 70 Deg C |
| Explosion proof | Intrinsically safe |
| Pressure type | gauge, absolute, vacuum, negative pressure |
| Clamp outer diameter | 50.5mm or 64mm |
| Housing material | SS304 |
Product show
Company Information
FAQ
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient
pressure/level/temperature measuring instruments.
Q: WHAT'S YOUR QUALITY CONTROL SYSTEM?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
Q: WHAT IS THE WARRANTY OF YOUR PRODUCTS?
A: 12 month from shipment date, for non-man-made damages.
Q: SHIPPING AND DELIVERY
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
Send us inquiry message at the bottom of this page to get reply within 2 hours
If any urgent inquiry, please use the below contact
Tel: 86-551-65369667
Fax: 86-551-65369655
