Place of Origin:
China
Brand Name:
WNK
Certification:
SGS
Model Number:
WNK3000

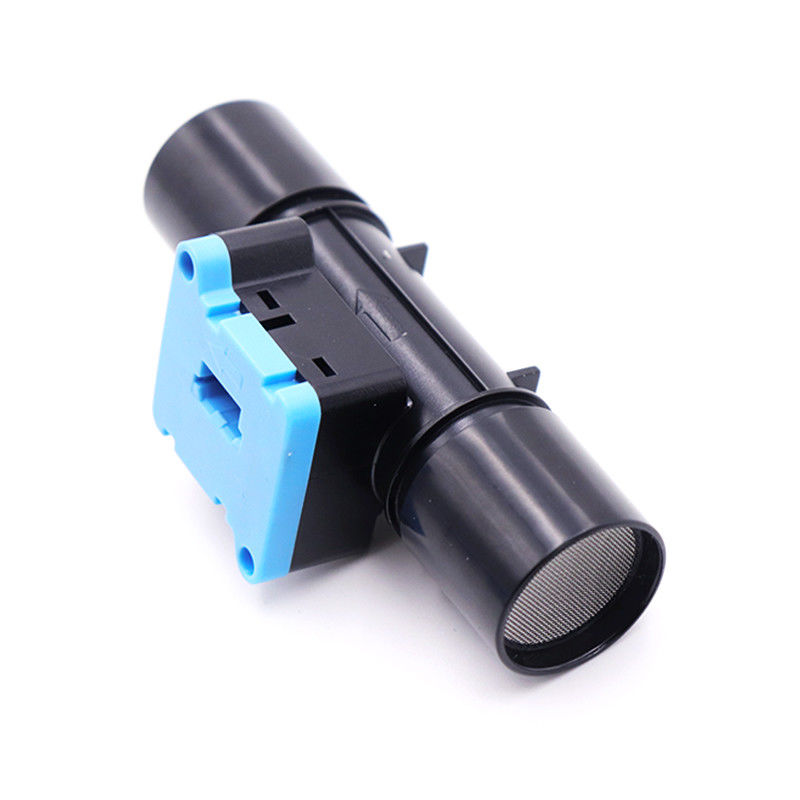

200SLM I2C Output Medical Air Oxygen Flow Sensor For Ventilator
Characteristic
* Low pressure loss
* Flow range: ± 200slm (bidirectional)
* Accuracy 1.5% reading (typical value)
* Full calibration and temperature compensation
* Zero drift
Product description
WNK3000 is specially designed for ventilator applications. It measures the flow of air, oxygen and other non-aggressive gases with superb accuracy. The special design in the air duct makes the pressure loss of the flow body passing through the sensor very low, making its performance suitable for various demanding application scenarios, such as medical ventilation and respiratory applications.
Application range
Medical, process automation, burner control, fuel cell control, spectroscopy, environmental
monitoring, laboratory.
Spec
Temperature Compensation | yes |
Flow range | 0-200slm |
Test Media | Air, N2. 02, non-corrosive gas |
Material | PPE+PS |
Accuracy | 1.5%FS typical value |
Power supply | 5VDC |
Ouput | I2C |
Type | Air Flow Sensor |
Dimensions of WNK3000
Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer with more than 13 years of experience. Our factory address is: 4/F,Bldg #6, No.168, Xiangzhang Road, High-tech District, 230088, Hefei, Anhui province, China.
Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome
Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.
Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
