|Digital Output:||I2C, SPI||Analog Output:||4~20mA, 0.2-2.9V, 0.5-4.5V ,0-5V|
|Accuracy:||0.5%FS, 1%FS, 2%FS||Operation Temperature:||-40~125℃|
|Housing:||SS304, SS316||Overload:||2.5x FS|
|Proof Pressure:||3x FS||OEM:||OEM, ODM Welcome|
Packard Diffused Silicon Water Pressure Sensor,
Packard I2C Water Pressure Sensor,
I2C Silicon Pressure Sensor

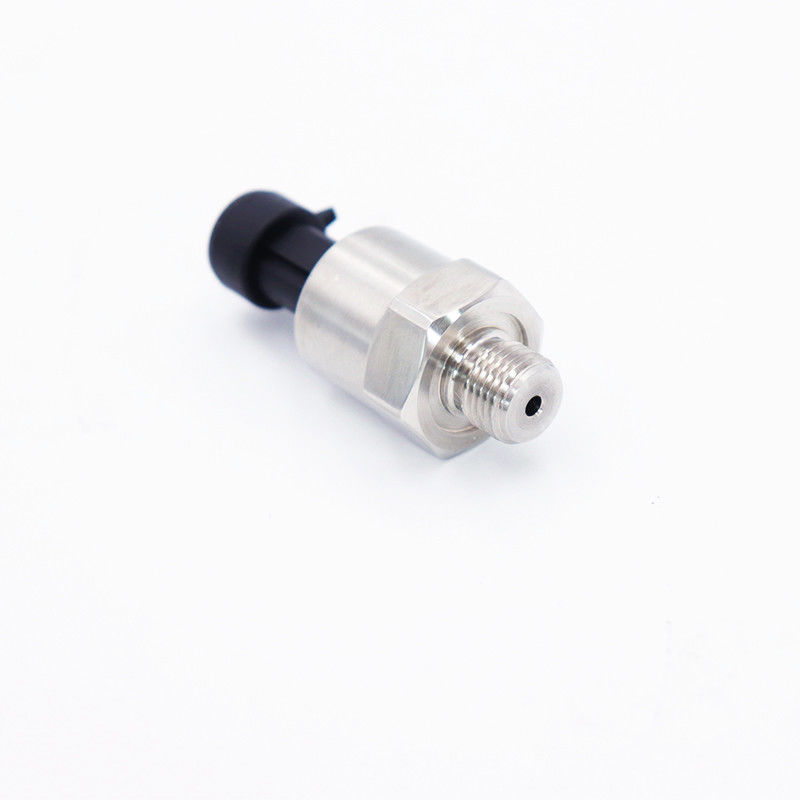

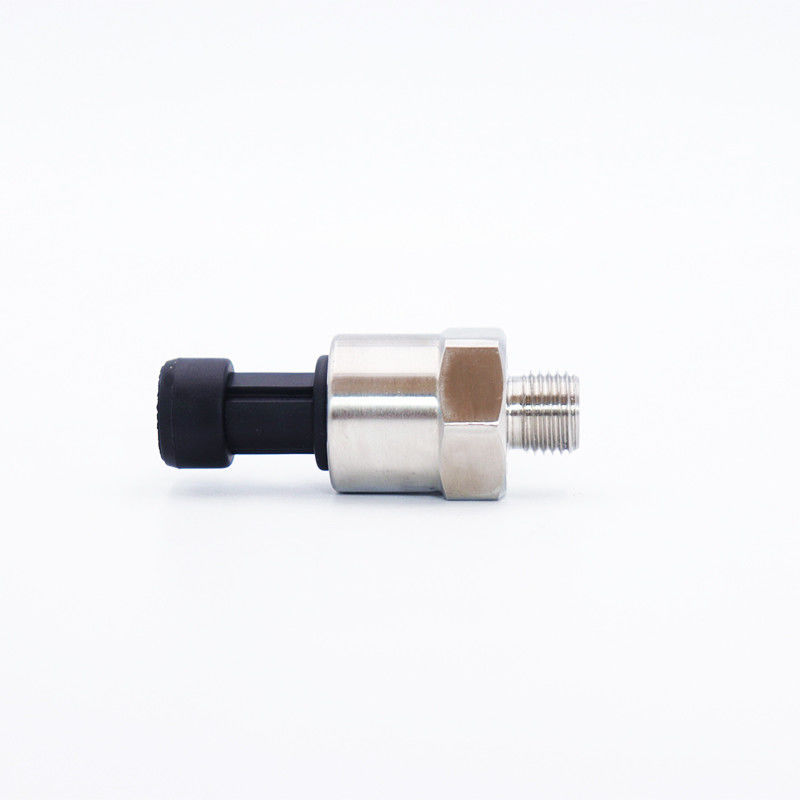

Packard 0.5-4.5v 4-20ma i2c Diffiused Silicon Pressure Sensor For Water Liquid Air
WNK81MA pressure transmitter is a high stable pressure transmitter by using specific ASIC signal conditioning chip and high performance SS316L diaphragm diffused silicon pressure sensor. The internal specific ASIC integrated circuit transforms milivolt signal to standard voltage, current or frequancy signal. It can easily connect with PC interface card, controlling instruments, smart gauges or PLC. It is compact designed, light and stainless steel sealing structure, which enable it capability of working in corrosive environment.
• Ceramic capacitive and diffused silicon sensors are available;
• Accuracy choices ±0.5%FS, ±1%FS, ±2%FS;
• Stainless steel 304,SS316 and brass housing;
• 0.5…4.5V, 4…20mA, 1...5V and 0...10V analog output or I2C and SPI digital output;
• Fast respond, no hysteresis ;
• Various process thread or other customization port acceptable;
• Electrical connectors including small DIN43650, M12, Parkard and others
• OEM, ODM and customization
• Pressure measurement of gas, vapor or liquid in various areas;
• Liquid level, volume or mass measurement;
• Integrated in a variety of user-defined solutions;
• Smart water and gas management system, smart fire controlling, automotive electronics controlling, air compressor, HVAC, pump, valve and etc;
|Pressure type||Gauge pressure, sealing pressure, absolute pressure|
|Analog||0.5…4.5V, 4…20mA, 1...5V, 0...10V|
|0.2%||Linearity, hysteresis, repetitiveness:＜0.2% sensor full range|
|0.5%||Linearity, hysteresis, repetitiveness:＜0.5% sensor full range|
|2.5X pressure sensor full scale|
|Housing Material||SS 304, Cu, Al|
|Supply voltage||5V 24VDCregulated power supply,|
|Supply voltage effect||
5V supply voltage effect: min.3V/max.5.5V
1. Founded in 2004, over 13 year professional research, developing and production experience;
2. Experienced and professional R&D team to provide customization services;
3. Producing transmitter core elements- PCB, supplying PCB for transmitter producers;
4. Highest accuracy up to 0.05%FS;
5. Various outputs I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other analog outputs;
6. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer with more than 13 years of experience. Our factory address is: 4/F,Bldg #6, No.168, Xiangzhang Road, High-tech District, 230088, Hefei, Anhui province, China.
Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome
Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.
Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
