Payment & Shipping Terms:
|Pressure Range:||0-2MPa,0-20bar,0-2000kPa||Output:||0.5-4.5V DC|
|Power Supply:||4.75-5.25V DC||Material:||Brass|
|Process Connector:||1/4 NPT||Electrical Connector:||Cable Outlet|
1/4NPT Air Pressure Sensor,
2MPa Air Pressure Sensor,
1/4NPT brass pressure sensor
Customized Cable Outlet 1/4G 0.5 - 4.5V DC Output Air Pressure Sensor

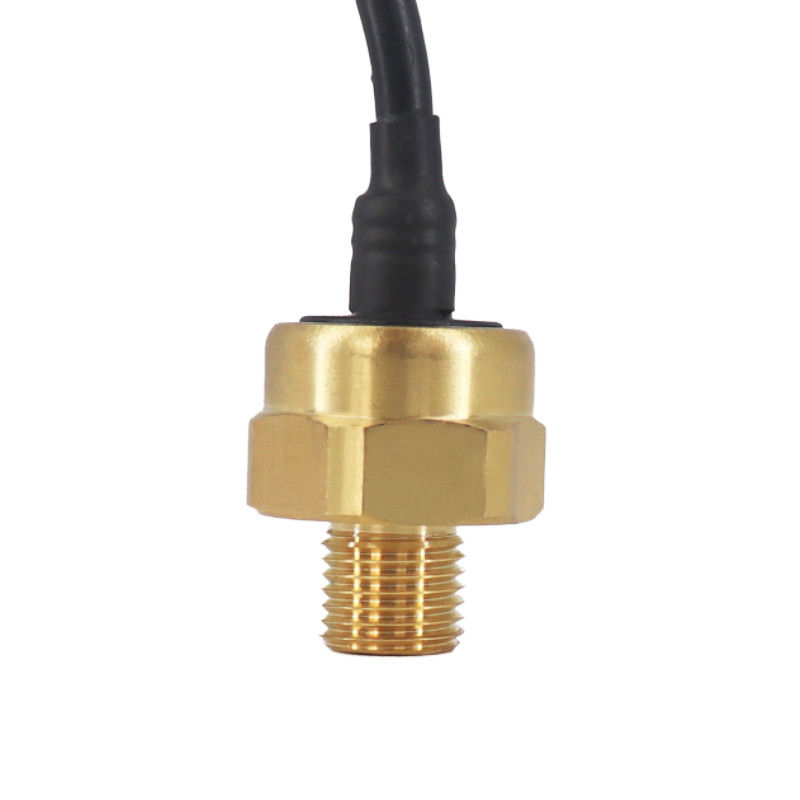

Mini brass pressure sensor suitable for air oil water
|Applicable media||Liquid, gas and steam|
|Cell||Ceramic capacitive pressure sensor|
|Pressure measurment||Gauge Pressure, Sealing pressure|
|Power supply||4.75-5.25 VDC|
|Accuracy(linearity,Hysteresis and Repeatability)||1%F.S.|
|Temperature drift(zero)||±0.15% F.S. (-20~70ºC)|
|Temperature drift(full range)||±0.15% F.S. (-20~70ºC)|
|Electrical connection||Cable Outlet|
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
A: 12 month from shipment date, for non-man-made damages.
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea.
Contact Person: Leo Zhang
