Home > products > Air Pressure Sensor >

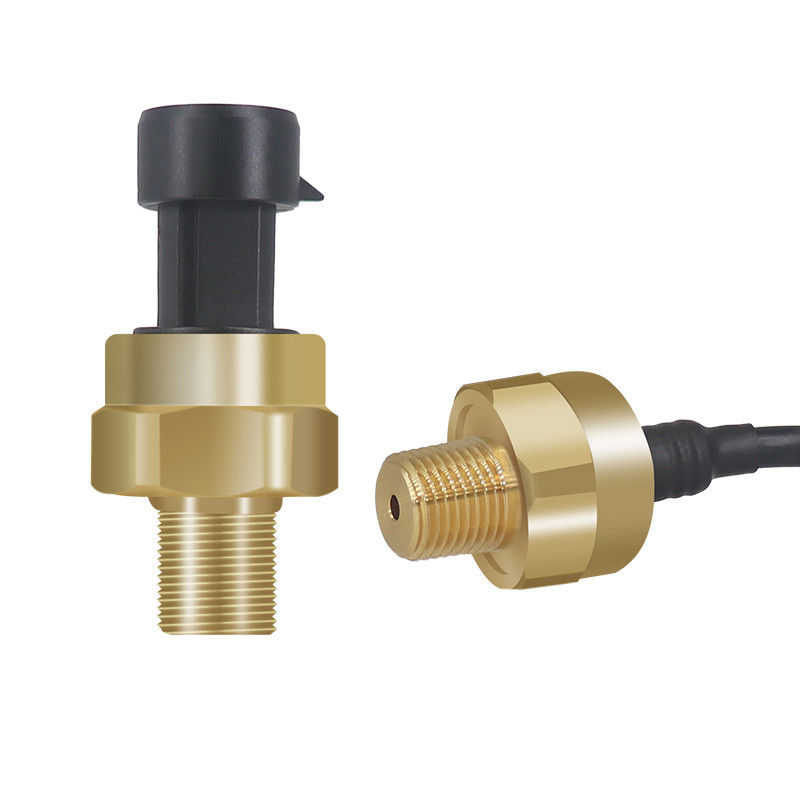

ISO 1/4NPT Air Compressor Pressure Sensor 0-1000Kpa Range

ISO 1/4NPT Air Compressor Pressure Sensor 0-1000Kpa Range

1/4NPT Air Compressor Pressure Sensor

1/4NPT compressed air pressure sensor

ISO Air Compressor Pressure Sensor

Place of Origin:

China

Brand Name:

WNK

Certification:

ISO, CE

Model Number:

WNK83MA

Contact Us
Request A Quote
Product Details
Accuracy:
1%F.S
Output:
0.5-4.5V
Pressure Range:
0-1000Kpa
Power Supply:
4.75-5.25VDC
Work Temperature:
-20~70°C
Measured Media:
Liquid, Gas, Steam
Housing Material:
Brass
Electrical Connection:
Cable Outlet/Packard
Highlight:

1/4NPT Air Compressor Pressure Sensor

,

1/4NPT compressed air pressure sensor

,

ISO Air Compressor Pressure Sensor

Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Negotiation
Packaging Details
Standard export carton box or according to your requirement
Delivery Time
5-7 working days
Payment Terms
L/C, T/T, Western Union, MoneyGram
Supply Ability
5000 Piece/Pieces per Month
Product Description

1%FS Packard Cable Outlet Air Compressor Pressure Sensor 0.5 - 4.5V Output



Parameter



Applicable media Liquid, gas, steam
Pressure range 0-1000Kpa
Pressure measurement Gauge pressure, sealing pressure
Output 0.5-4.5V
Power Supply 4.75-5.25VDC
Accuracy(lineraity, hysteresis, repeatability) 1%FS
Work temperature -20~70°C
Storage temperature -40~110°C
Temp drift(zero) ±0.15%FS(-20~70°C)
Temp drift(full range) ±0.15%FS(-20~85C)
Electrical connection Parkard/Cable outlet
Mechanical connection 1/4NPT/G1/4
Housing material Brass









Mechanical Dimension



ISO 1/4NPT Air Compressor Pressure Sensor 0-1000Kpa Range 0







ISO 1/4NPT Air Compressor Pressure Sensor 0-1000Kpa Range 1

ISO 1/4NPT Air Compressor Pressure Sensor 0-1000Kpa Range 2





Company Information



ISO 1/4NPT Air Compressor Pressure Sensor 0-1000Kpa Range 3


Factory


ISO 1/4NPT Air Compressor Pressure Sensor 0-1000Kpa Range 4




Exhibition


ISO 1/4NPT Air Compressor Pressure Sensor 0-1000Kpa Range 5





Our Certificate
ISO 1/4NPT Air Compressor Pressure Sensor 0-1000Kpa Range 6





Packing
ISO 1/4NPT Air Compressor Pressure Sensor 0-1000Kpa Range 7

FAQ


Q: Are you manufacturer or trading company?

A: We are professional pressure/level/temperature measurement manufacturer since 2004.



Q: What’s your quality control system?

A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.



Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.



Q: Can we use our logo on the products? Do you provide customized products?

Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome



Q: What is yor MOQ?

A: We have no MOQ limits, small quantity order is acceptable.



Q: What's the transport?

A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
