0-60bar 4-20ma I2C CNG Pressure Sensor Wear Resistant IP65 Protection

China Hefei WNK Smart Technology Co.,Ltd certification
China Hefei WNK Smart Technology Co.,Ltd certification
I'm Online Chat Now

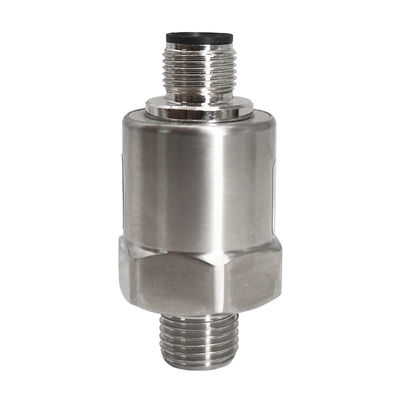

0-60bar 4-20ma I2C CNG Pressure Sensor Wear Resistant IP65 Protection

0-60bar 4-20ma I2C CNG Pressure Sensor Wear Resistant IP65 Protection
0-60bar 4-20ma I2C CNG Pressure Sensor Wear Resistant IP65 Protection 0-60bar 4-20ma I2C CNG Pressure Sensor Wear Resistant IP65 Protection

Large Image :  0-60bar 4-20ma I2C CNG Pressure Sensor Wear Resistant IP65 Protection

Product Details:
Place of Origin: Anhui, China
Brand Name: WNK
Certification: CE ISO9001
Model Number: WNK80MA
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: Sea-Worthy Packing or Air-Worthy Packing
Delivery Time: 5-8 work days
Payment Terms: D/A, L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000 Piece/Pieces per Month
Detailed Product Description
Pressure Range: 0-60bar Output: I2C, 0.5-4.5V, 4-20ma And Customization
Respond Time: ≥1ms Overload Pressure: 3-5 Times
Sensor Type: Iot Pressure Sensor Working Temperature: -40 -135°C
Warranty: 12 Months Ingress Protection: IP67
Accuracy: 1% Compensation Temperature: -20 -70°C
Housing Material: Stainless Steel 304
High Light:

I2C CNG Pressure Sensor

,

20ma CNG Pressure Sensor

,

I2C natural gas pressure sensor

0-60bar 4-20ma I2C Low Cost Capacitiance Pressure Sensor For Liquid Gas Water

WNK80MA is a series of high performance compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance.



With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.



Applicable media Liquid, gas and steam
Pressure range 0-20kPa~50MPa
Cell Ceramic capacitive pressure sensor
Pressure measurment Gauge Pressure, absolute pressure and sealing pressure
Output 4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C
Power supply 24VDC/12VDC/5VDC/3.3V
Accuracy(linearity,Hysteresis and Repeatability) 1%F.S.
Compensation temperature -20~85ºC
Ambient temperature -40~125ºC
Working temperature -40~125ºC
Temperature drift(zero) ±0.15% F.S. (-20~85ºC)
Temperature drift(full range) ±0.15% F.S. (-20~85ºC)
Electrical connection Parkard, Cable outlet, M12, mini DIN43650
Mechanical connection G1/4, 1/4NPT,1/8NPT, M12*1.5, 7/16-20UNF (female), customazation
Housing material 304 stainless steel(316SS for inner core)
Protection IP65






Electrical connection



0-60bar 4-20ma I2C CNG Pressure Sensor Wear Resistant IP65 Protection 0





Application:



WNK80MA is solution for below applications:

Pressure measurement of gas, vapor or liquid in various areas;

Liquid level, volume or mass measurement;

Integrated in a variety of user-defined solutions;

Smart driking water and nature gas controlling system, samrt fire controlling. automotive electronics controlling, air compressor, HVAC, pump, valve and etc;



0-60bar 4-20ma I2C CNG Pressure Sensor Wear Resistant IP65 Protection 10-60bar 4-20ma I2C CNG Pressure Sensor Wear Resistant IP65 Protection 2

Company

0-60bar 4-20ma I2C CNG Pressure Sensor Wear Resistant IP65 Protection 30-60bar 4-20ma I2C CNG Pressure Sensor Wear Resistant IP65 Protection 40-60bar 4-20ma I2C CNG Pressure Sensor Wear Resistant IP65 Protection 5





FAQ

Q: Are you manufacturer or trading company?

A: We are professional pressure/level/temperature measurement manufacturer with more than 14 years of experience.



Q: What’s your quality control system?

A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.



Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.



Q: What is yor MOQ?

A: We have no MOQ limits,1 pc for testing is acceptable.
