Product Details:
Payment & Shipping Terms:
|
| Pressure Range: | 0-600bar | Output: | I2C, SPI, 0.5-4.5V, 4-20ma And Customization |
|---|---|---|---|
| Respond Time: | ≥1ms | Overload Pressure: | 3-5 Times |
| Sensor Type: | Iot Pressure Sensor | Working Temperature: | -40 -135°C |
| Warranty: | 12 Months | Ingress Protection: | IP67 |
| Accuracy: | 1% | Compensation Temperature: | -20 -70°C |
| Housing Material: | Stainless Steel 304 | ||
| High Light: | 20MA air flow pressure sensor,SPI air flow pressure sensor,SPI hvac pressure sensor |
||
Founded in 2004, Hefei WNK Smart Technology Co Ltd is a professional national high-tech enterprise specializing in the development, manufacturing, sales and service of various type of advanced and reliable pressure sensors and pressure transmitters. We are committed to providing our customers with pressure sensors, pressure transmitters and technical solutions in various type of applications
The company's main products include pressure sensors and transmitters, temperature transmitters and other measuring instruments. The company's products and services are widely applied in internet of things and smart cities such as: smart water, smart gas and smart fire.
Parameter:
| Applicable media | Liquid, gas and steam |
| Pressure range | 0-20kPa~50MPa |
| Cell | Ceramic capacitive pressure sensor |
| Pressure measurment | Gauge Pressure, absolute pressure and sealing pressure |
| Output | 4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C |
| Power supply | 24VDC/12VDC/5VDC/3.3V |
| Accuracy(linearity,Hysteresis and Repeatability) | 1%F.S. |
| Compensation temperature | -20~85ºC |
| Ambient temperature | -40~125ºC |
| Working temperature | -40~125ºC |
| Temperature drift(zero) | ±0.15% F.S. (-20~85ºC) |
| Temperature drift(full range) | ±0.15% F.S. (-20~85ºC) |

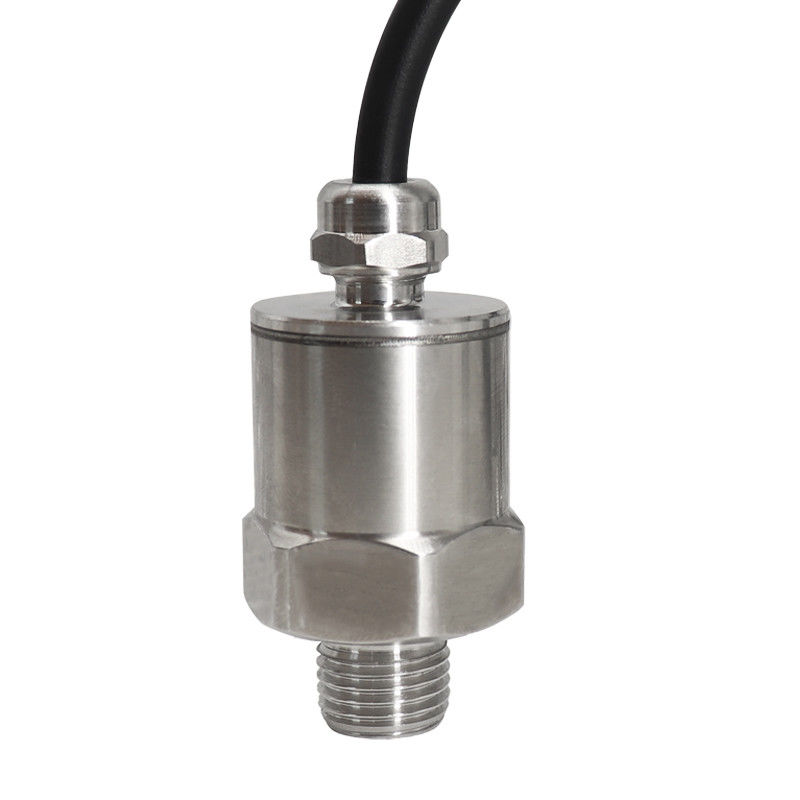

| Electrical connection | Parkard, Cable outlet, M12, mini DIN43650 |
| Mechanical connection | G1/4, 1/4NPT,1/8NPT, M12*1.5, 7/16-20UNF (female), customazation |
| Housing material | 304 stainless steel(316SS for inner core) |
| Protection | IP65 |
Electrical connection
Application:
WNK80MA is solution for below applications:
Pressure measurement of gas, vapor or liquid in various areas;
Liquid level, volume or mass measurement;
Integrated in a variety of user-defined solutions;
Smart driking water and nature gas controlling system, samrt fire controlling. automotive electronics controlling, air compressor, HVAC, pump, valve and etc;
