Brass 0.5-4.5V Air Pressure Sensor Parkard Electrical Connection

China Hefei WNK Smart Technology Co.,Ltd certification
China Hefei WNK Smart Technology Co.,Ltd certification
I'm Online Chat Now

Brass 0.5-4.5V Air Pressure Sensor Parkard Electrical Connection

Brass 0.5-4.5V Air Pressure Sensor Parkard Electrical Connection
Brass 0.5-4.5V Air Pressure Sensor Parkard Electrical Connection Brass 0.5-4.5V Air Pressure Sensor Parkard Electrical Connection

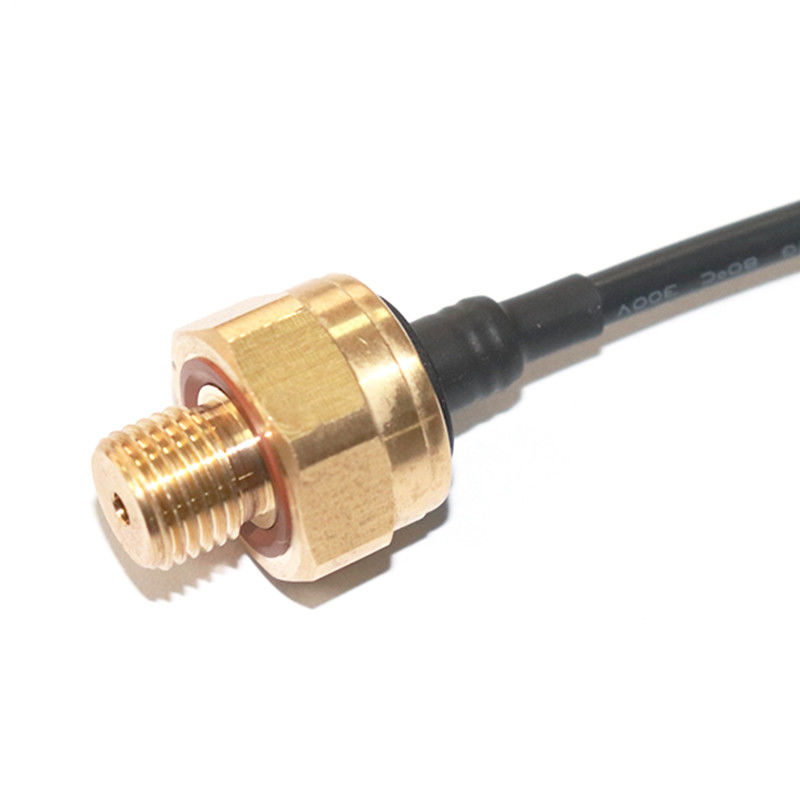

Large Image :  Brass 0.5-4.5V Air Pressure Sensor Parkard Electrical Connection

Product Details:
Place of Origin: China
Brand Name: WNK
Certification: ISO, CE
Model Number: WNK83MA
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: Standard export carton box or according to your requirement
Delivery Time: 5-7 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000 Piece/Pieces per Month
Detailed Product Description
Accuracy: 1%F.S Output: 0.5-4.5V
Pressure Range: 0-1000Kpa Power Supply: 4.75-5.25VDC
Work Temperature: -20~70°C Measured Media: Liquid, Gas, Steam
Housing Material: Brass Electrical Connection: Cable Outlet
High Light:

4.5V Air Pressure Sensor

,

Brass Air Pressure Sensor

,

Brass air pressure transducer

Brass Low Cost Micro Pressure Sensor With 0.5 - 4.5V Output For Arduino

Parameter



Applicable media Liquid, gas, steam
Pressure range 0-1000Kpa
Pressure measurement Gauge pressure, sealing pressure
Output 0.5-4.5V
Power Supply 4.75-5.25VDC
Accuracy(lineraity, hysteresis, repeatability) 1%FS
Work temperature -20~70°C
Storage temperature -40~110°C
Temp drift(zero) ±0.15%FS(-20~70°C)
Temp drift(full range) ±0.15%FS(-20~85C)
Electrical connection Parkard
Mechanical connection Cable outlet
Housing material Brass









Mechanical Dimension



Brass 0.5-4.5V Air Pressure Sensor Parkard Electrical Connection 0





Brass 0.5-4.5V Air Pressure Sensor Parkard Electrical Connection 1Brass 0.5-4.5V Air Pressure Sensor Parkard Electrical Connection 2







Company Information



Brass 0.5-4.5V Air Pressure Sensor Parkard Electrical Connection 3


Factory


Brass 0.5-4.5V Air Pressure Sensor Parkard Electrical Connection 4




Exhibition


Brass 0.5-4.5V Air Pressure Sensor Parkard Electrical Connection 5





Our Certificate
Brass 0.5-4.5V Air Pressure Sensor Parkard Electrical Connection 6





Packing
Brass 0.5-4.5V Air Pressure Sensor Parkard Electrical Connection 7

FAQ


Q: Are you manufacturer or trading company?

A: We are professional pressure/level/temperature measurement manufacturer since 2004.



Q: What’s your quality control system?

A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.



Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.



Q: Can we use our logo on the products? Do you provide customized products?

Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome



Q: What is yor MOQ?

A: We have no MOQ limits, small quantity order is acceptable.



Q: What's the transport?

A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
