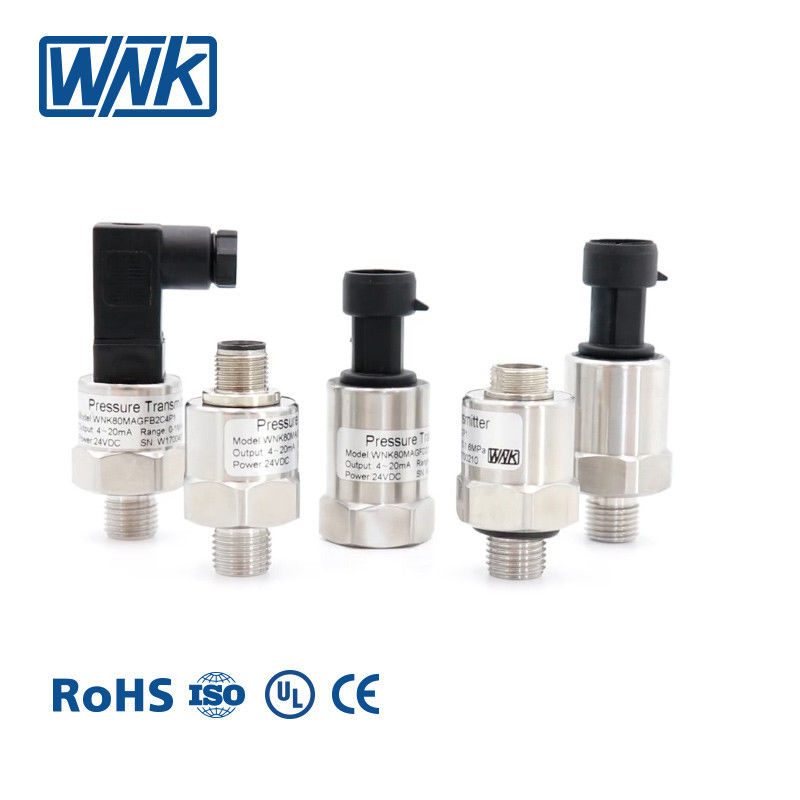

IP65 4-20ma Smart Water SS304 Barometric HVAC Air Pressure Sensor

IP65 4-20ma Smart Water SS304 Barometric HVAC Air Pressure Sensor

IP65 hvac air pressure sensor

SS304 HVAC air pressure sensor

SS304 barometric air pressure sensor

Place of Origin:

CHINA

Brand Name:

WNK

Certification:

CE/ROHS

Model Number:

WNK80ma

Contact Us
Request A Quote
Product Details
Pressure Range:
0-60bar
Output:
I2C, SPI, 0.5-4.5V, 4-20ma And Customization
Sensor Type:
Iot Pressure Sensor
Accuracy:
0.2%, 0.5% , 1.0% FS
Compensation Temperature:
-20 -70°C
Housing Material:
Stainless Steel 304
Type:
Gauge, Absolute, Seal, Vacuum
Highlight:

IP65 hvac air pressure sensor

,

SS304 HVAC air pressure sensor

,

SS304 barometric air pressure sensor

Payment & Shipping Terms
Minimum Order Quantity
1 PRICE
Price
Negotiation
Delivery Time
5-8 work days
Payment Terms
T/T, Western Union
Supply Ability
5000 Piece/Pieces per Month Pressure Transmitter
Product Description

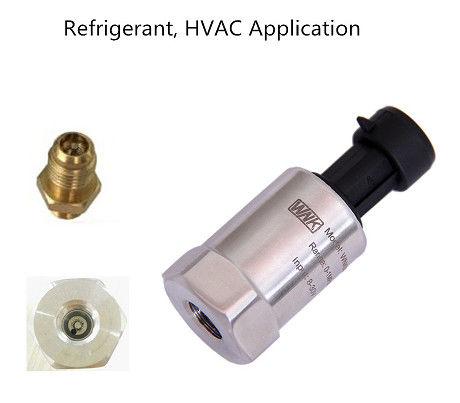

Low Cost 4-20ma Smart Water Air Pressure Sensor For Refrigerant HVAC





WNK80MA Gauge/Absolute/Sealing Pressure Transmitter
Applicable media
Liquid, Gas
Pressure range
0-7kPa~350bar
Pressure measurment
Gauge Pressure, Absolute pressure, Sealing pressure
Output
4-20mA/0.5-4.5V/1 -5V/0-10V/I2C
Accuracy(linearity,Hysteresis and Repeatability)
0.5%F.S.(Typical)
Power supply
24VDC/12VDC/5VDC/3.3V
Compensation temperature
-20~85ºC
Ambient temperature
-40~125ºC
Working temperature
-40~125ºC
Temperature drift(zero)
±0.15% F.S. (-20~85ºC)
Temperature drift(full range)
±0.15% F.S. (-20~85ºC)
power(electrical) connect
Parkard, M12, DIN43650, Cable outlet
Mechanical connection
G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize
Housing material
304 stainless steel(inner core is 316 stainless steel)
Protection
IP65





Air Compressor Pressure Sensor Applications



Air Compressor Pressure Sensors are pressure-sensitive electrical sensing devices used to control the operation of an air compressor. The main function of the sensor is to start the Air Compressor when the pressure in its holding tank drops below a set low point and to stop it when the pressure reaches a set maximum. This allows the compressor to maintain a constant working charge in the system, an essential criteria for industries that are heavily reliant on compressed air. The Air Compressor pressure sensor is typically mounted on the compressor assembly or in another easily accessible location, with the Air Compressor control circuit wired through its internal contacts.





Description of air compressor pressure sensors

Typically, an Air Compressor pressure sensor is used to measure the pressure of fluids (gases or liquids). Pressure is an expression of the force required to stop a fluid from expanding, and is usually stated in terms of force per unit area. A pressure sensor generates an electrical signal relating to the pressure imposed. Such a signal is normally digital or analogue, although optical, visual and auditory signals are also common.



>>> Applications
- Automobile, Compressor and Refrigeration Industry
- Engineering machinery
- Pressure control and monitor
- Water treatment system
- Hydraulic and Pneumatics
- HAVC and BAS Control
- Pump, fitness equipment, household appliances
- Factory Automation
- Fluid Control and Instrumentation Systems
80mA specs 2.png











Product Show

IP65 4-20ma Smart Water SS304 Barometric HVAC Air Pressure Sensor 1IP65 4-20ma Smart Water SS304 Barometric HVAC Air Pressure Sensor 2IP65 4-20ma Smart Water SS304 Barometric HVAC Air Pressure Sensor 3
