Accuracy: | 0.25%, 0.5% , 1.0% FS | Pressure Range:: | 0-200 Meter |
---|---|---|---|
Power Supply:: | 24VDC 12-30VDC | Material: | 304 SS, 316L |
Media: | Water, Liquid, Waste Water, Sea Water | Type: | Level Sensor, Level Transmitter |
IP Rating:: | IP68 | Ex-Proof: | Exia CT4 |
Output: | 4-20mA 05-4.5V I2C RS485 | ||
High Light: | 4-20ma Submersible Level Sensor,4-20ma submersible pressure transducer,316L Submersible Level Sensor |

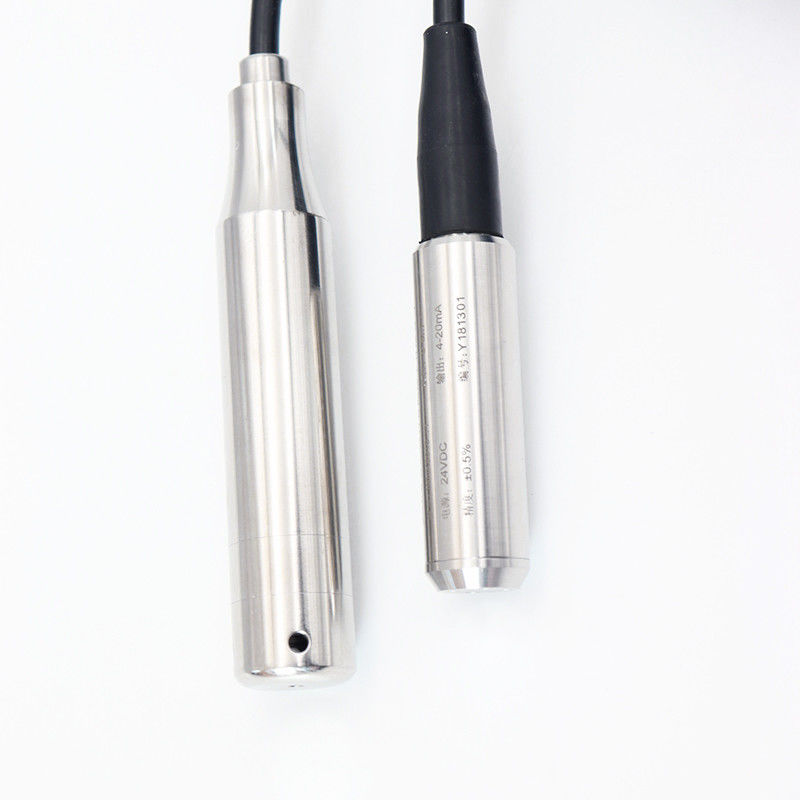

4-20mA 0-5V 0-10V Output Submersible Level Transmitter For Liquid Water
Output | 4-20mA, 0-5V, 1-5V, customization |
Measured range | 0-0.5~200mH2O |
Max overload | 150% of sensor range |
Applicable media | Liquid, Water |
Accuracy | ≤ ±0.2%FS, |
Long Term Stability | ±0.25% FS/year |
Housing material | Stainless steel |
Cable material | Polyvinyl Fluoride, PTFE |
Power supply | 24V DC |
Operating temperature | -30~85℃ |
Compensation temperature | -20~70℃ |
Protection class | IP68 |
