1/4NPT Output 10bar Gas Pressure Sensor Transducer Explosion Proof

China Hefei WNK Smart Technology Co.,Ltd certification
China Hefei WNK Smart Technology Co.,Ltd certification
I'm Online Chat Now

1/4NPT Output 10bar Gas Pressure Sensor Transducer Explosion Proof

1/4NPT Output 10bar Gas Pressure Sensor Transducer Explosion Proof
1/4NPT Output 10bar Gas Pressure Sensor Transducer Explosion Proof 1/4NPT Output 10bar Gas Pressure Sensor Transducer Explosion Proof

Large Image :  1/4NPT Output 10bar Gas Pressure Sensor Transducer Explosion Proof

Product Details:
Place of Origin: China (Mainland)
Brand Name: WNK
Model Number: WNK83MA
Payment & Shipping Terms:
Minimum Order Quantity: 1Piece
Price: Negotiation
Packaging Details: standard export carton box
Delivery Time: 5-8 work day
Payment Terms: T/T, Western Union
Supply Ability: 5000+Piece+perMonth
Detailed Product Description
Accuracy: 1% Measured Media: Liquid, Gas And Steam
Pressure Range: 0-2000kPa Output Signal: 0.5-4.5 VDC
Power Supply: 4.75-5.25 VDC Material: Brass

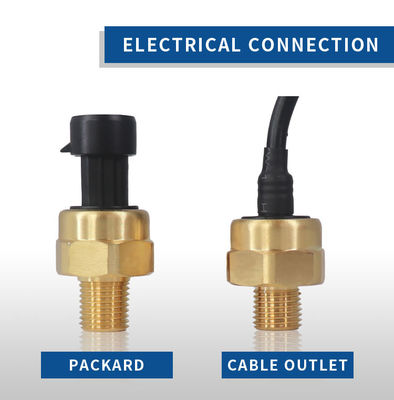

Process Connection: G1/4,1/4NPT Electrical Connection: Packard/ Cable Outlet
High Light:

1/4NPT gas pressure transmitter

,

1/4NPT gas pressure sensor

,

10bar gas pressure transducer



Ready to ship,Mini brass pressure sensor low cost unit price $6 USD.

Applicable media Liquid, gas and steam
Pressure range 0-1MPa
Cell Ceramic capacitive pressure sensor
Pressure measurment Gauge Pressure, Sealing pressure
Output 0.5-4.5V
Power supply 4.75-5.25 VDC
Accuracy(linearity,Hysteresis and Repeatability) 1%F.S.
Compensation temperature -20~70ºC
Ambient temperature -40~110ºC
Working temperature -40~110ºC
Temperature drift(zero) ±0.15% F.S. (-20~70ºC)
Temperature drift(full range) ±0.15% F.S. (-20~70ºC)
Electrical connection Parkard
Mechanical connection 1/4NPT
Housing material Brass
Product Show
