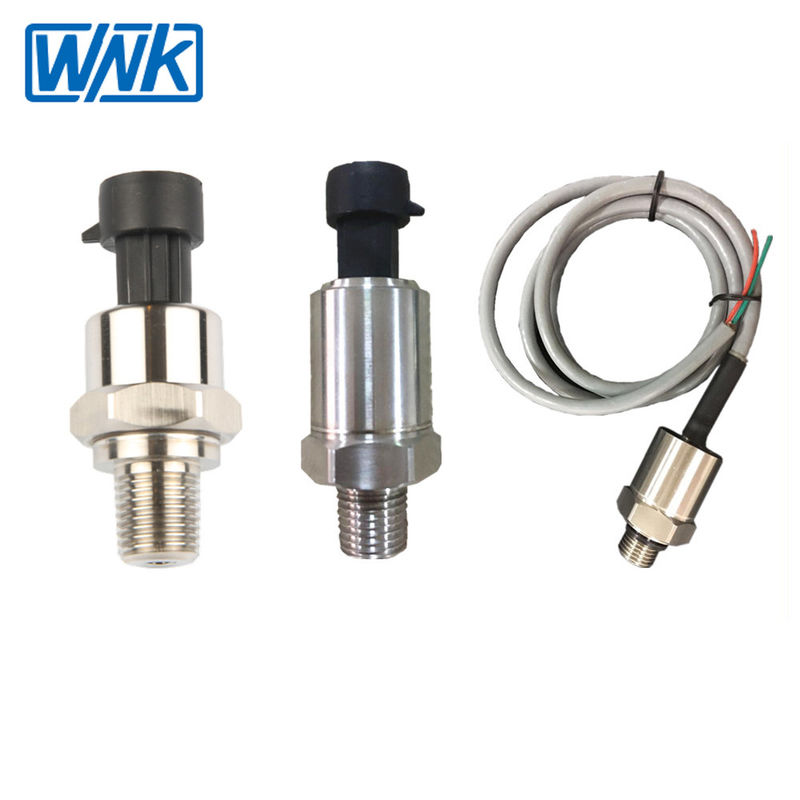

4-20mA 0.5-4.5V 0-60bar Pressure Transducer Sensor For Liquid Gas Steam

4-20mA 0.5-4.5V 0-60bar Pressure Transducer Sensor For Liquid Gas Steam

600bar steam pressure transducer

600bar steam pressure sensor

OEM steam pressure transmitter

Place of Origin:

CN

Brand Name:

WNK

Certification:

CE, ISO9001:2015

Model Number:

WNK81MA

Contact Us
Request A Quote
4-20mA 0.5-4.5V 0-60bar Pressure Transducer Sensor For Liquid Gas Steam
4-20mA 0.5-4.5V 0-60bar Pressure Transducer Sensor For Liquid Gas Steam 4-20mA 0.5-4.5V 0-60bar Pressure Transducer Sensor For Liquid Gas Steam 4-20mA 0.5-4.5V 0-60bar Pressure Transducer Sensor For Liquid Gas Steam
Product Details
Output:
4~20mA, I2C, SPI, 0.2-2.9V, 0.5-4.5V ,0-5V,
Pressure Range:
0-600bar
Accuracy:
0.5%FS, 1%FS, 2%FS
Operation Temperature:
-40~125℃
Ingress Protection:
IP67
Respond Time:
≥1ms
OEM:
OEM, ODM Welcome
Overload:
2.5x FS
Proof Pressure:
3x FS
Housing Material:
SS304, SS316
Highlight:

600bar steam pressure transducer

,

600bar steam pressure sensor

,

OEM steam pressure transmitter

Payment & Shipping Terms
Minimum Order Quantity
5pcs
Price
Negotiation
Packaging Details
Sea-Worthy Packing or Air-Worthy Packing
Delivery Time
5-8 working days
Payment Terms
T/T, Western Union, L/C
Supply Ability
5000pcs per month
RELATED PRODUCTS
Good price Real Time Water Pressure Sensor With Accuracy Of 0.5%FS online Video

Real Time Water Pressure Sensor With Accuracy Of 0.5%FS

Get Best Price
Good price IP65 Waterproof Water Pressure Sensor With -40-125 .C Working Temp And -100kPa 70MPa Range online Video

IP65 Waterproof Water Pressure Sensor With -40-125 .C Working Temp And -100kPa 70MPa Range

Get Best Price
Good price Wide Pressure Range 4-20mA Air Pressure Sensor With IP65 Rating online Video

Wide Pressure Range 4-20mA Air Pressure Sensor With IP65 Rating

Get Best Price
Good price 4-20mA/0.5-4.5V Accuracy Water Pressure Sensor IP65 with 316SS Housing online Video

4-20mA/0.5-4.5V Accuracy Water Pressure Sensor IP65 with 316SS Housing

Get Best Price
Contact Us
86-551-65369655
Contact Now
Product Description

WNK has introduced the new robust, small size and programmable pressure sensors of WNK80MA & WNK811 series, suitable for domestic drinking water system, air-conditioning, machinery andrefrigeration plant engineering, hydraulic and pneumatic systems, process industries and environmental technology.

WNK80MA and WNK811 have various outputs including 4~20mA, I2C, 0~5V, 0.5~4.5V and etc. And OEM, ODM & customization service are available for this product.

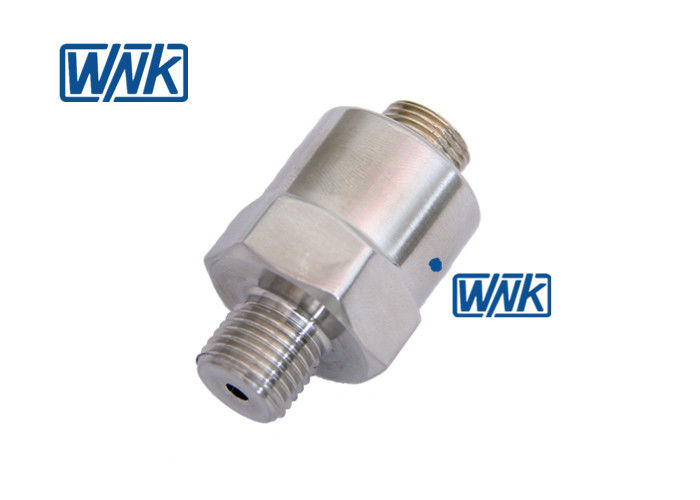

WNK80MA Gauge/Absolute/Sealing Pressure Transmitter
Applicable media
Liquid, Gas
Pressure range
0~60bar
Pressure measurment
Gauge Pressure, Sealing pressure
Output
4-20mA/0.5-4.5V/1 -5V/0-10V/I2C
Accuracy(linearity,Hysteresis and Repeatability)
0.5%F.S.(Typical)
Power supply
24VDC/12VDC/5VDC/3.3V
Compensation temperature
-20~85ºC
Ambient temperature
-40~125ºC
Working temperature
-40~125ºC
Temperature drift(zero)
±0.15% F.S. (-20~85ºC)
Temperature drift(full range)
±0.15% F.S. (-20~85ºC)
power(electrical) connect
Parkard, M12, DIN43650, Cable outlet
Mechanical connection
G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize
Housing material
304 stainless steel(inner core is 316 stainless steel)
Protection
IP65




80ma

Technical Parameters

4-20mA 0.5-4.5V 0-60bar Pressure Transducer Sensor For Liquid Gas Steam 1

>> Dimensions









4-20mA 0.5-4.5V 0-60bar Pressure Transducer Sensor For Liquid Gas Steam 2
