Product Details:
Payment & Shipping Terms:
|
| Accuracy: | 0.5%F.S | Output: | 4-20mA, 1-5V,0-10V,0.5-4.5V, I2C |
|---|---|---|---|
| Pressure Range: | 0-0.5~200mH2O | Power Supply: | 24V/12V/5V/3.3V |
| Measured Media: | Water, Liquid | Housing Material: | Stainless Steel |
| IP Rating: | IP68 | Max Overload: | 150% Of Sensor Range |
| Application: | For Tank, Pool, River, Underwater Etc Open Vessel Measurement | ||
| High Light: | IP68 wastewater level sensor,200M resistive water level sensor,200 meters submersible level transducer |
||

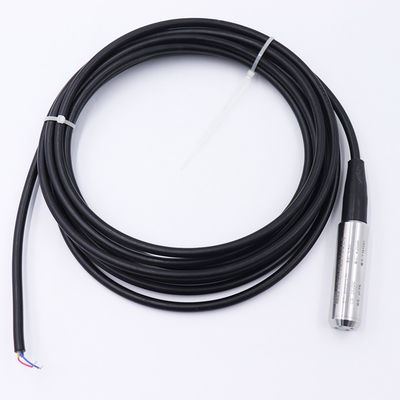

0.5-4.5V 4-20mA Low Cost Water Level Sensor For Deep Well
| Output signals | |
| Output | 4-20mA, 0-10mA, 0-5V, 1-5V, I2C |
| Measured range | 0-200 meters |
| Max overload | 150% of sensor range |
| Applicable media | Liquid, Water |
| Accuracy | ±0.2% FS/year, ±0.5% FS/year |
| Stability | ±0.25% FS/year |
| Housing material | Stainless steel |
| Cable material | Polyvinyl Fluoride, PTFE |
| Power supply | 24V DC |
| Ambient temperature | -20~85℃ |
| Process temperature | -20~85℃ |
| Compensation temperature | -20~85℃ |
| Protection class | IP68 |
Our WNK8010 liquid leve sensor with high performance diffused silicon piezoresistive pressure sensor as the measuring element,
- With the reliable amplified circuit and precision temperature compensation, to transfer the gauge or absolute pressure of measurement medium to standard voltage or current signal.
- This product comes with compact profile, easy to install, it can measure the level height directly when through into the liquor.
Applications
• Water tank level measurement and control.
• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)
Features
• Adopting diffusion silicon oil-filled sensor
• Max measure range up to 200 meters or more
• High Stability, provide 0.1, 0.2, 0.5 accuracy for option
• Factory direct price
Product Dimension & Installation
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
A: 12 month from shipment date, for non-man-made damages.
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
