Product Details:
Payment & Shipping Terms:
|
| Accuracy: | 1% | Measured Media: | Liquid, Gas And Steam |
|---|---|---|---|
| Pressure Range: | 0-2000kPa | Output Signal: | 0.5-4.5 VDC |
| Power Supply: | 4.75-5.25 VDC | Material: | Brass |
| Process Connection: | G1/4,1/4NPT | Electrical Connection: | Packard/ Cable Outlet |
| Keywords: | Water Pressure Sensor/Brass Pressure Sensor | ||
| High Light: | 4.5v Brass Pressure Sensor,1MPa gas pressure transmitter,WNK gas pressure transmitter |
||

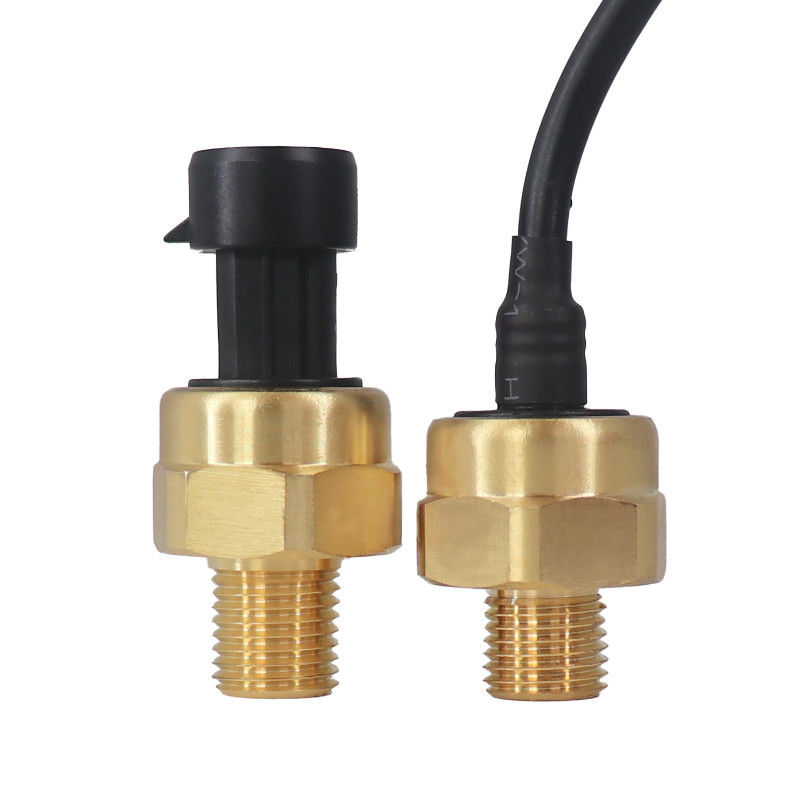

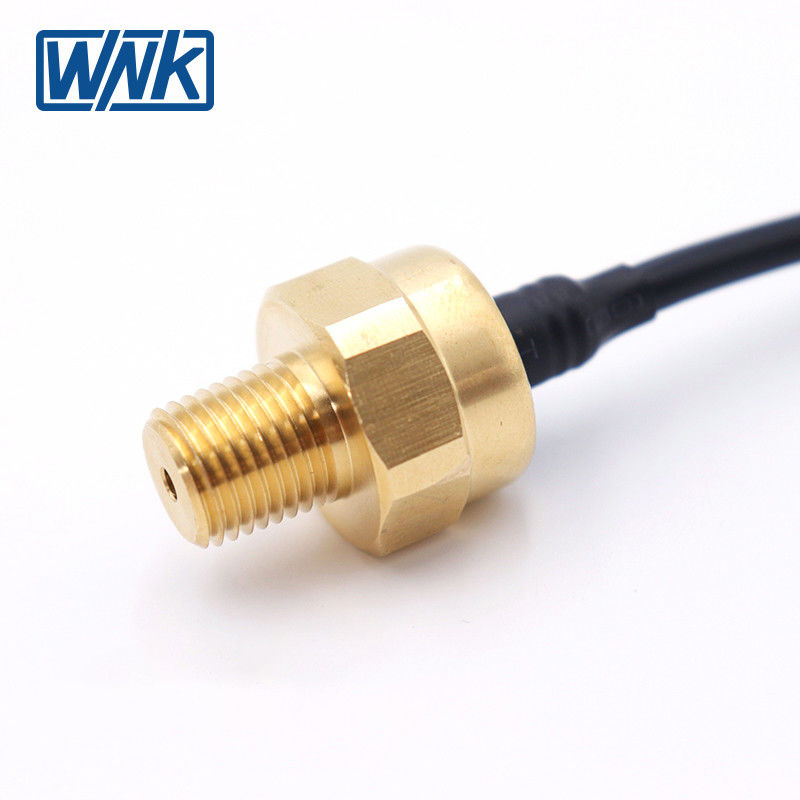

10bar 20bar Brass Pressure Sensor For Liquid Gas
| Applicable media | Liquid, gas and steam |
| Pressure range | 0-1MPa |
| Cell | Ceramic capacitive pressure sensor |
| Pressure measurment | Gauge Pressure, Sealing pressure |
| Output | 0.5-4.5V |
| Power supply | 4.75-5.25 VDC |
| Accuracy(linearity,Hysteresis and Repeatability) | 1%F.S. |
| Compensation temperature | -20~70ºC |
| Ambient temperature | -40~110ºC |
| Working temperature | -40~110ºC |
| Temperature drift(zero) | ±0.15% F.S. (-20~70ºC) |
| Temperature drift(full range) | ±0.15% F.S. (-20~70ºC) |
| Electrical connection | Parkard |
| Mechanical connection | 1/4NPT |
| Housing material | Brass |
