600bar Anti Corrosion Oil Vacuum Pressure Transducer Sensor With 4-20mA Output

China Hefei WNK Smart Technology Co.,Ltd certification
China Hefei WNK Smart Technology Co.,Ltd certification
I'm Online Chat Now

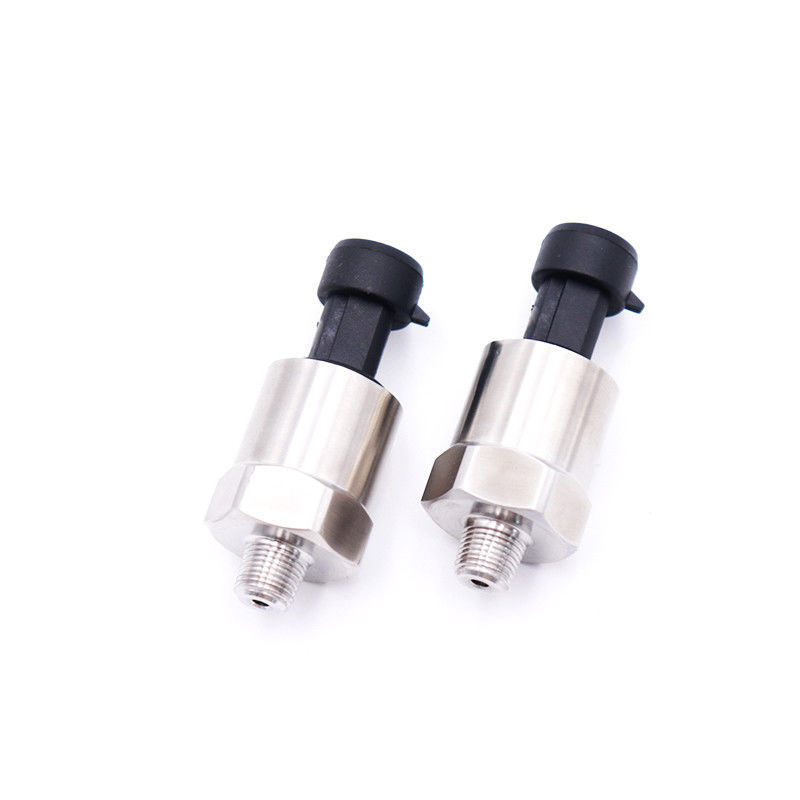

600bar Anti Corrosion Oil Vacuum Pressure Transducer Sensor With 4-20mA Output

600bar Anti Corrosion Oil Vacuum Pressure Transducer Sensor With 4-20mA Output
600bar Anti Corrosion Oil Vacuum Pressure Transducer Sensor With 4-20mA Output 600bar Anti Corrosion Oil Vacuum Pressure Transducer Sensor With 4-20mA Output 600bar Anti Corrosion Oil Vacuum Pressure Transducer Sensor With 4-20mA Output

Large Image :  600bar Anti Corrosion Oil Vacuum Pressure Transducer Sensor With 4-20mA Output

Product Details:
Place of Origin: CN
Brand Name: WNK
Certification: CE, ISO9001:2015
Model Number: WNK81MA
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: Negotiation
Packaging Details: Sea-Worthy Packing or Air-Worthy Packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 5000pcs per month
Detailed Product Description
Output: 4~20mA, I2C, SPI, 0.2-2.9V, 0.5-4.5V ,0-5V, Pressure Range: 0-600bar
Accuracy: 0.5%FS, 1%FS, 2%FS Operation Temperature: -40~125℃
Ingress Protection: IP67 Respond Time: ≥1ms
OEM: OEM, ODM Welcome Overload: 2.5x FS
Proof Pressure: 3x FS Housing Material: SS304, SS316
High Light:

IP67 vacuum pressure sensor

,

IP67 vacuum pressure transducer

,

600bar Pressure Transducer Sensor

Vacuum Pressure Transducer Sensor With 4-20mA Output

Product Description



Input
Pressure Type Gauge Pressure , Absolute Pressure, Sealing Pressure
Pressure Range -100Kpa - 60Mpa
Accuracy 0.2%, 0.5%
Power Supply 5VDC, 12-32VDC
Measuring Media Gas, Steam, Liquid, Oil
Output
Analog 4-20mA, 0.5-4.5V / 1-5V / 0-5V
Digital I2C, SPI
Operation Condition and Temperature
Compensation Temperature -20...75℃
Storage Temperature -45 ... 85℃
Ambient Temperature -45 ... 85℃
Medium Temperature -40 ... 125℃
Material and Protection
Ingress Protection IP65, IP67
Housing Material 304SS, 316L


>>> Applications
- Automobile, Compressor and Refrigeration Industry
- Engineering machinery
- Pressure control and monitor
- Water treatment system
- Hydraulic and Pneumatics
- HAVC and BAS Control
- Pump, fitness equipment, household appliances
- Factory Automation
- Fluid Control and Instrumentation Systems



600bar Anti Corrosion Oil Vacuum Pressure Transducer Sensor With 4-20mA Output 0600bar Anti Corrosion Oil Vacuum Pressure Transducer Sensor With 4-20mA Output 1600bar Anti Corrosion Oil Vacuum Pressure Transducer Sensor With 4-20mA Output 2
