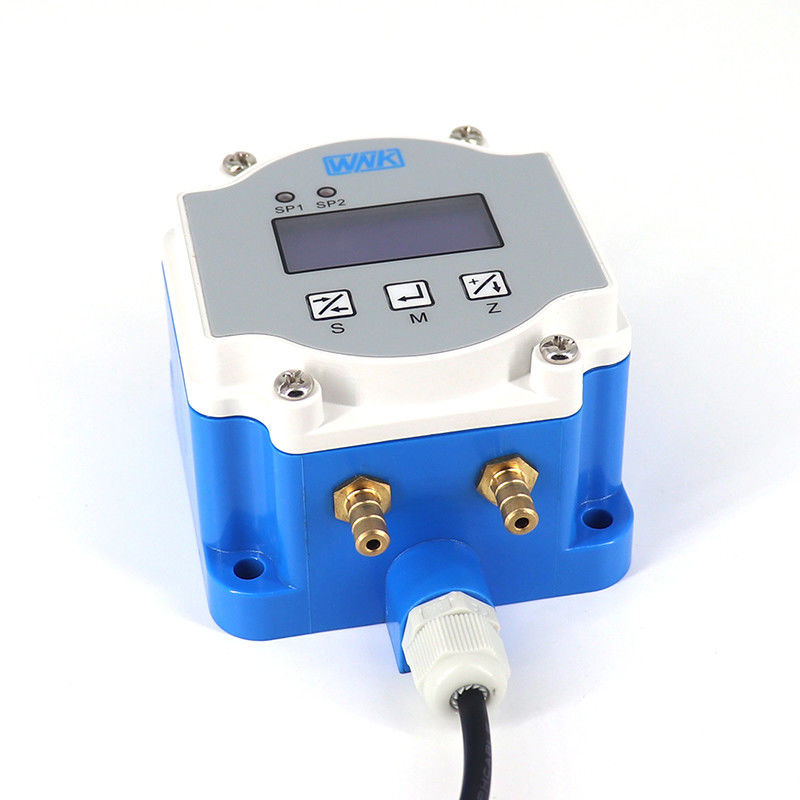

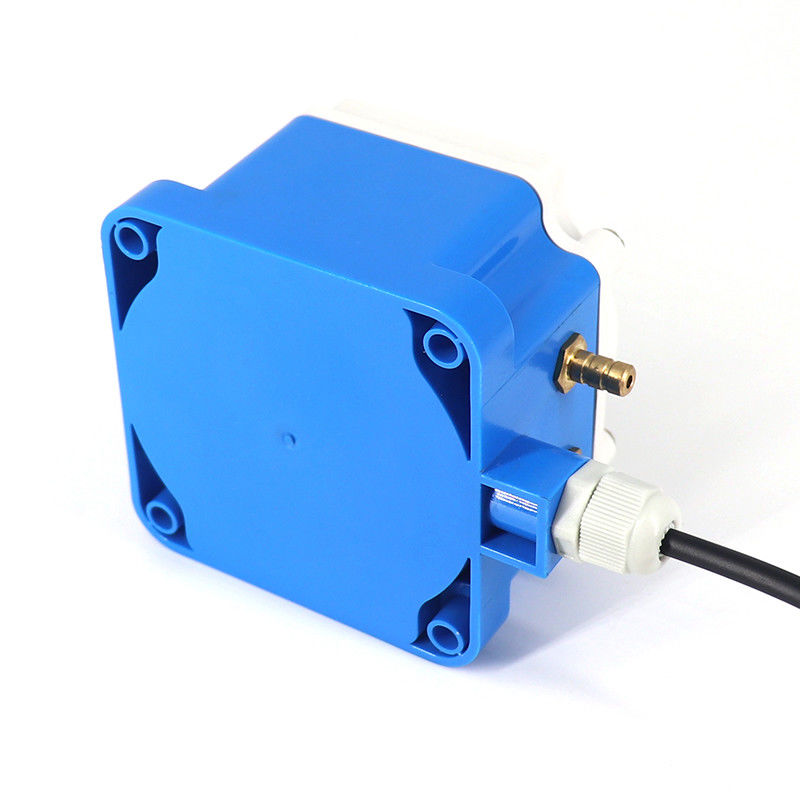

4-20mA Air Water Micro Differential Smart Pressure Transmitter For Gas Steam

4-20mA Air Water Micro Differential Smart Pressure Transmitter For Gas Steam
4-20mA Air Water Micro Differential Smart Pressure Transmitter For Gas Steam 4-20mA Air Water Micro Differential Smart Pressure Transmitter For Gas Steam 4-20mA Air Water Micro Differential Smart Pressure Transmitter For Gas Steam

Large Image :  4-20mA Air Water Micro Differential Smart Pressure Transmitter For Gas Steam

Product Details:
Place of Origin: Anhui,China
Brand Name: WNK
Model Number: WNK808N1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Each set in one individual carton packing with protection
Delivery Time: To be negotiated
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: -45 to 85ºC,-40 to 80ºC for LCD header
Detailed Product Description
Measured Media: Air, Gas Pressure Range: -0.25-0.25kPa/-0.5-0.5kPa/-1-1kPa/-2-2kPa/-7-7kPa/-100-100kPa
Output Signals: 2-Wire 4-20mA/0-10V/RS485/2xPNP Accuracy: ±0.1%FS
Power Supply: 12-32V DC Electrical Connections: Terminal Or M12
External Load: ≥500Ω Name: 4-20mA Air Water Micro Differential Pressure Transmitter
High Light:

Micro Differential smart pressure transducer

,

20mA gas pressure transmitter

,

Micro Differential gas pressure transmitter

Micro Differential Pressure Transmitter

Product Description



Intelligent Macro Differential Pressure Transmitter
Applicable media
Gas, Steam
Pressure Measurement
Gauge pressure, Differential pressure
Pressure range
-0.25-0.25kPa/-0.5-0.5kPa/-1-1kPa/-2-2kPa/-7-7kPa/-100-100kPa
Accuracy
±0.1%FS
Stability
0.8%F.S./Year
Max overload
250% of sensor range
Output signals
2-Wire 4-20mA/0-10V/RS485/2xPNP
Electrical Connections
Terminal or M12

Power Supply
12-32V DC
Compensation Temperature
0-60℃

Outstanding advantages and main selling points of the productHigh precision, slight differential pressure: measuring range is within ±1KPa, accuracy grade is ±0.1% FS.Minimum range: ±50Pa, accuracy grade ±0.5% FS.Real-time display, no lag: response time ≤100ms, real-time display of measurement data, no damping delay.High and low end interchange: Through key operation, the test high and low voltage ports can be interchanged.



Application



It is widely used in various industrial automatic control occasions, involving many industries such as fire protection, environmental protection, medical treatment, aviation, and industrial control. Such as negative pressure ward, central air-conditioning, elevator warehouse and other slight differential pressure measurement.



4-20mA Air Water Micro Differential Smart Pressure Transmitter For Gas Steam 0

Product Show
