Product Details:
Payment & Shipping Terms:
|
| Pressure Range: | 0-2MPa,0-20bar,0-2000kPa | Output: | 0.5-4.5V DC |
|---|---|---|---|
| Power Supply: | 4.75-5.25V DC | Material: | Brass |
| Process Connector: | G1/4 | Electrical Connector: | Cable Outlet |
| Accuracy: | 1% | ||
| High Light: | G1/4 brass pressure sensor,Mini brass pressure transmitter,G1/4 brass pressure transmitter |
||
Ready to ship,Mini brass pressure sensor low cost unit price $6 USD.
| Applicable media | Liquid, gas and steam |
| Pressure range | 0-2MPa |
| Cell | Ceramic capacitive pressure sensor |
| Pressure measurment | Gauge Pressure, Sealing pressure |
| Output | 0.5-4.5V |
| Power supply | 4.75-5.25 VDC |
| Accuracy(linearity,Hysteresis and Repeatability) | 1%F.S. |
| Working temperature | -20~70ºC |
| Ambient temperature | -40~110ºC |
| Temperature drift(zero) | ±0.15% F.S. (-20~70ºC) |
| Temperature drift(full range) | ±0.15% F.S. (-20~70ºC) |
| Electrical connection | Cable Outlet |
| Mechanical connection | G1/4 |
| Housing material | Brass |

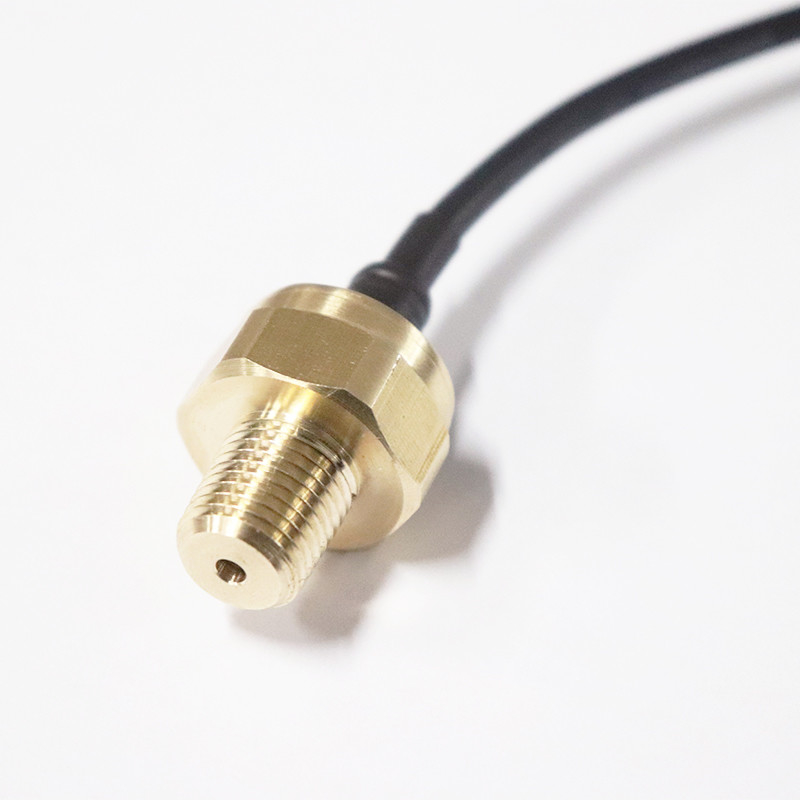

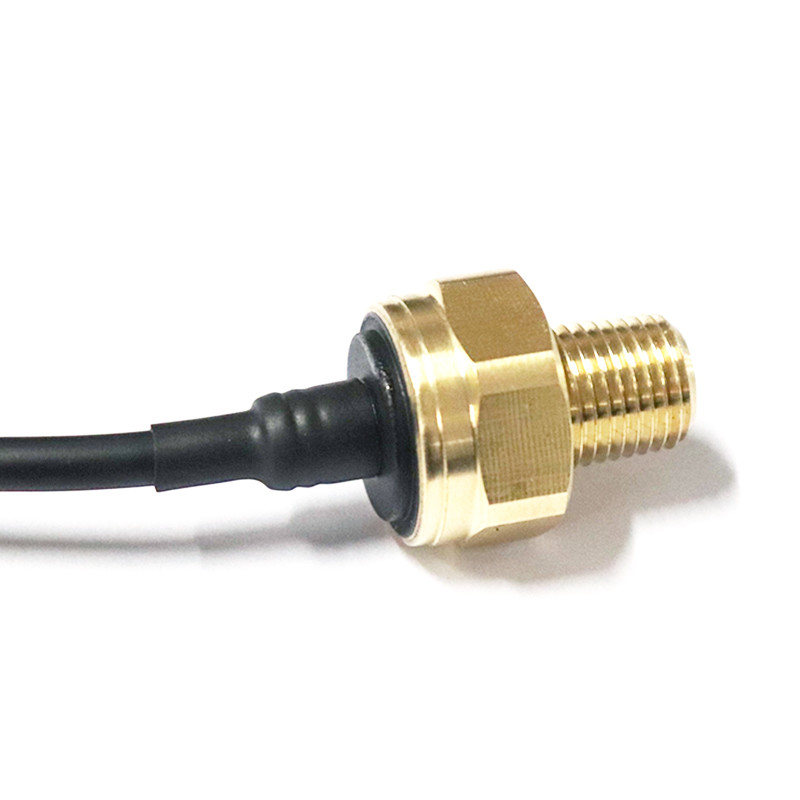

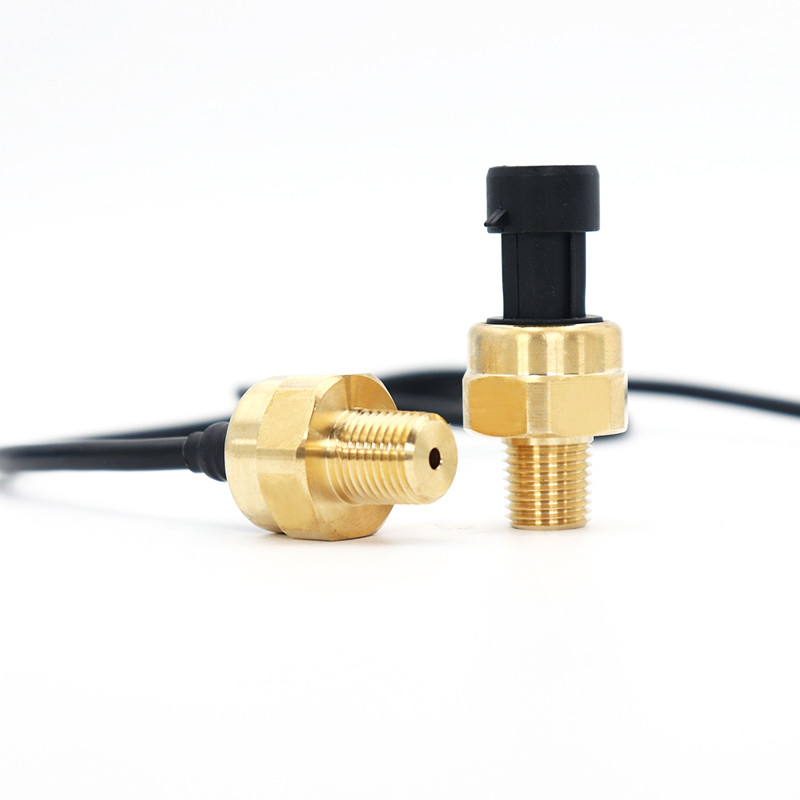

PRODUCT SHOW
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
A: 12 month from shipment date, for non-man-made damages.
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea.
