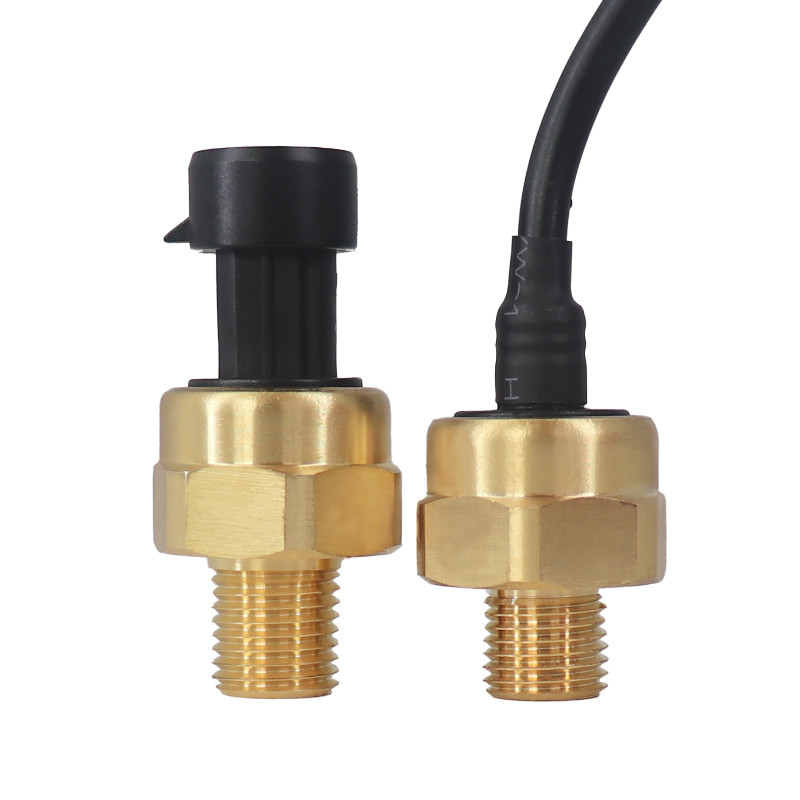

0.5-4.5V I2C Brass Water Pipe Pressure Sensor With Cable Outlet

0.5-4.5V I2C Brass Water Pipe Pressure Sensor With Cable Outlet

I2C water pipe sensor

2000kPa pipe pressure sensor

ASIC signal pipe pressure sensor

Place of Origin:

China

Brand Name:

WNK

Model Number:

WNK83mA

Contact Us
Request A Quote
Product Details
Pressure Range:
0-2MPa,0-20bar,0-2000kPa
Output:
0.5-4.5V DC
Power Supply:
4.75-5.25V DC
Material:
Brass
Process Connector:
G1/4
Electrical Connector:
Cable Outlet
Accuracy:
1%
Product Name:
0.5-4.5V Compact Ceramic Brass Pressure Sensor With Anti-Corrosion Function
Highlight:

I2C water pipe sensor

,

2000kPa pipe pressure sensor

,

ASIC signal pipe pressure sensor

Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Negotiation
Packaging Details
Each piece into individual carton with foam protection,Or as per client's request
Delivery Time
8-10 working days
Payment Terms
D/A, D/P, T/T, Western Union, Paypal
Supply Ability
2000 pcs per week
Product Description
Brass Water Pressure Sensor For Air Gas
WNK83MA is our standard compact pressure Transmitter, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. WNK83MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.







Mechanical Dimension:

Low Cost 10 bar 20bar Brass Water Pressure Sensor With 0.5-4.5V OutputLow Cost 10 bar 20bar Brass Water Pressure Sensor With 0.5-4.5V Output



Applicable media Liquid, gas and steam
Pressure range 0-2MPa
Cell Ceramic capacitive pressure sensor
Pressure measurment Gauge Pressure, Sealing pressure
Output 0.5-4.5V
Power supply 4.75-5.25 VDC
Accuracy(linearity,Hysteresis and Repeatability) 1%F.S.
Working temperature -20~70ºC
Ambient temperature -40~110ºC
Temperature drift(zero) ±0.15% F.S. (-20~70ºC)
Temperature drift(full range) ±0.15% F.S. (-20~70ºC)
Electrical connection Cable Outlet
Mechanical connection G1/4
Housing material Brass



PRODUCT SHOW

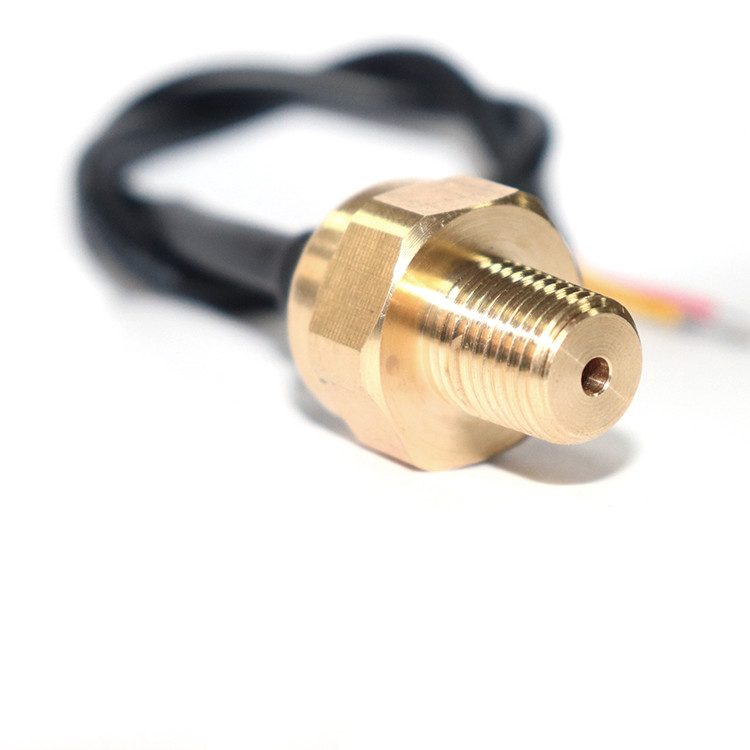

0.5-4.5V I2C Brass Water Pipe Pressure Sensor With Cable Outlet 20.5-4.5V I2C Brass Water Pipe Pressure Sensor With Cable Outlet 30.5-4.5V I2C Brass Water Pipe Pressure Sensor With Cable Outlet 4



Low Cost 10 bar 20bar Brass Water Pressure Sensor With 0.5-4.5V Output





Packaging

0.5-4.5V I2C Brass Water Pipe Pressure Sensor With Cable Outlet 6



5







FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea.
