Hefei WNK Smart Technology Co.,Ltd
Home ProductsElectronic Digital Level Switch

60mpa Digital Electronic Pressure Switch For Sanitary Application

China Hefei WNK Smart Technology Co.,Ltd certification
China Hefei WNK Smart Technology Co.,Ltd certification
I'm Online Chat Now

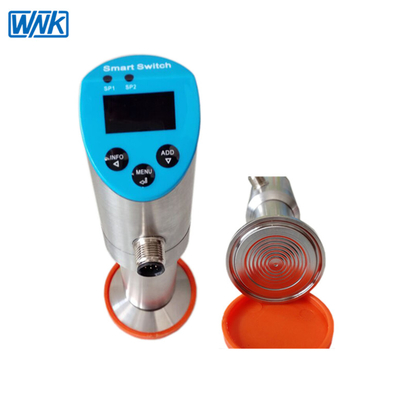

60mpa Digital Electronic Pressure Switch For Sanitary Application

60mpa Digital Electronic Pressure Switch For Sanitary Application
60mpa Digital Electronic Pressure Switch For Sanitary Application 60mpa Digital Electronic Pressure Switch For Sanitary Application 60mpa Digital Electronic Pressure Switch For Sanitary Application

Large Image :  60mpa Digital Electronic Pressure Switch For Sanitary Application

Product Details:
Place of Origin: Hefei, CN
Brand Name: WNK
Certification: SGS, ISO9001:2015
Model Number: SPS
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: Sea-Worthy Packing or Air-Worthy Packing
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 5000pcs per month
Detailed Product Description
Output: 4...20mA/0...5V+PNP+MODBUS Accuracy: ≤0.5%FS
Measuring Range: 0 ~100mH2O Long-term Stability: ±0.3% Full Scale Per Year
Power Supply: 12...30V DC Display: OLED
Working Temp: -30~80 Deg C Media Temp: 0~60 Deg C
Switch Output: PNP Or NPN Switch Type: Normal Open Or Normal Closed
Ingress Protection: IP65 Electrical Connector: M12 5pin Or 8pin
High Light:

60mpa electronic pressure switch

,

Sanitary electronic pressure switch

,

60mpa digital pressure switches

SPS pressure switch is designed for pressure monitoring and measurement in liquid and gaseous media. The SPS is suited for general industrial applications such as in mechanical manufacturing, in machine tool systems, in hydraulic and pneumatic systems, for pressure monitoring and control and for pumps and compressors. It is pressure switch, transmitter and display in one device. In its standard configuration it has optional two switching outputs (PNP or NPN), an analog output signal (0...20mA| 4…20 mA or 0...5V| 0…10 V) as well as with RS485 Link.



Applications
pump control,
storage tank monitor,
liquid level control,
filter blocking and monitor,
leakage surveillance.





Feautures

- Programmable automatic control design

- OLED with back-light display

- Display 180°turnable

- Displaying pressure peak value and environment temperature

- Body 330°rotable

- Industrial touch-sensitive button

- Switch points settable

- PNP/NPN +4~20mA/0-5V output

- Support MODBUS

- Pressure, level and temperature switch

- OEM & Customizable





Production Spec



SPS Intelligent Electronic Pressure Switch with OLED Display
Applicable media
Liquid, Gas, Steam
Pressure measurment
Gauge Pressure, Absolute pressure
Pressure range
-100kPa~60MPa
Output Signal
2×PNP + 0V~5VDC/10VDC + MODBUS(RS485)
2×PNP + 0mA/4mA~20mADC + MODBUS(RS485)
Accuracy
0.5% FS
Stability
±0.3% FS/year
Switch current
1.0A(Max.)
Switching type
Normally open / closed (settable)
Display
OLED (Optional)
Housing material
304 stainless steel
Mechanical connection
M20×1.5; 1/2-18NPT, 1/4NPT, Customize
Storge temperature
-40~80℃
Process temperature
-30~80℃
Protection class
IP65

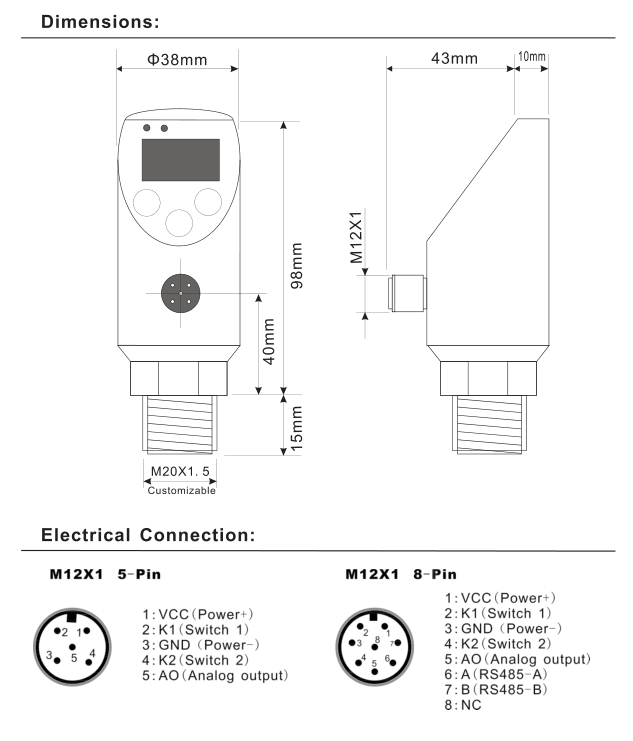

Dimension



60mpa Digital Electronic Pressure Switch For Sanitary Application 0

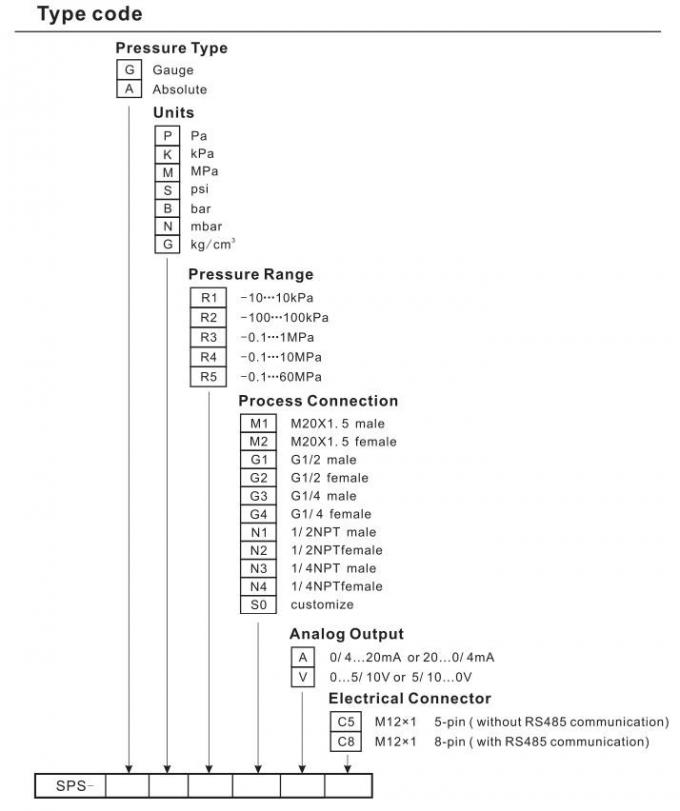

60mpa Digital Electronic Pressure Switch For Sanitary Application 1
Product Show

60mpa Digital Electronic Pressure Switch For Sanitary Application 2Electronic Digital Pressure Switch 10bar 100bar With RS485O OutputElectronic Digital Pressure Switch 10bar 100bar With RS485O Output
