Pressure Range: | -1~600Bar | Output: | I2C, 0.5-4.5V, 4-20ma And Customization |
---|---|---|---|
Sensor Type: | Iot Pressure Sensor | Accuracy: | Accuracy |
Compensation Temperature: | -20 -70°C | Housing Material: | Stainless Steel 304 |
Highlight: | Diffused Silicon I2C water pressure sensor,304 housing I2C water pressure sensor,Diffused Silicon I2C pressure transducer |

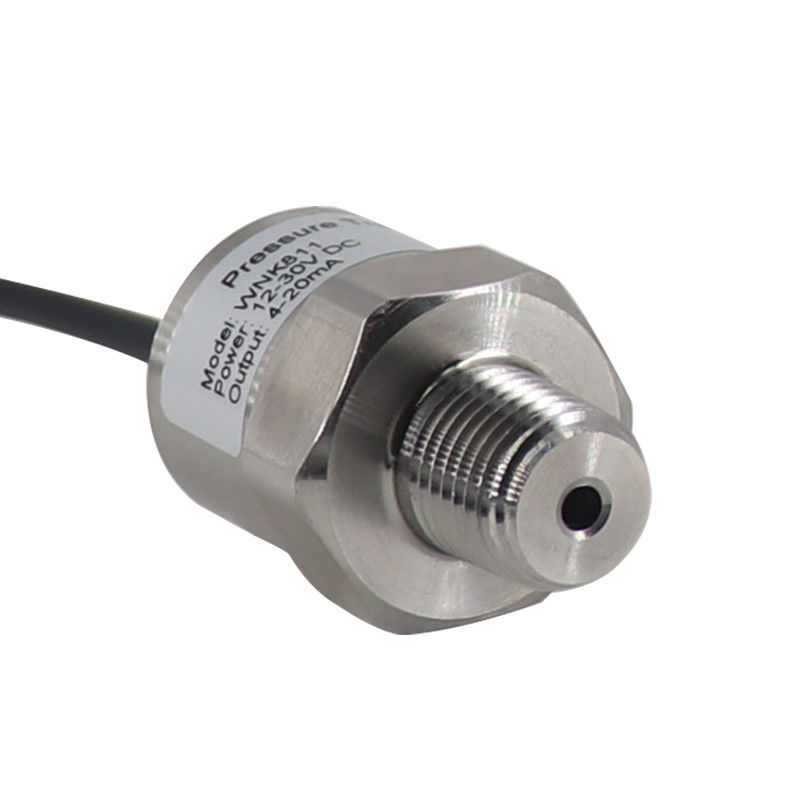

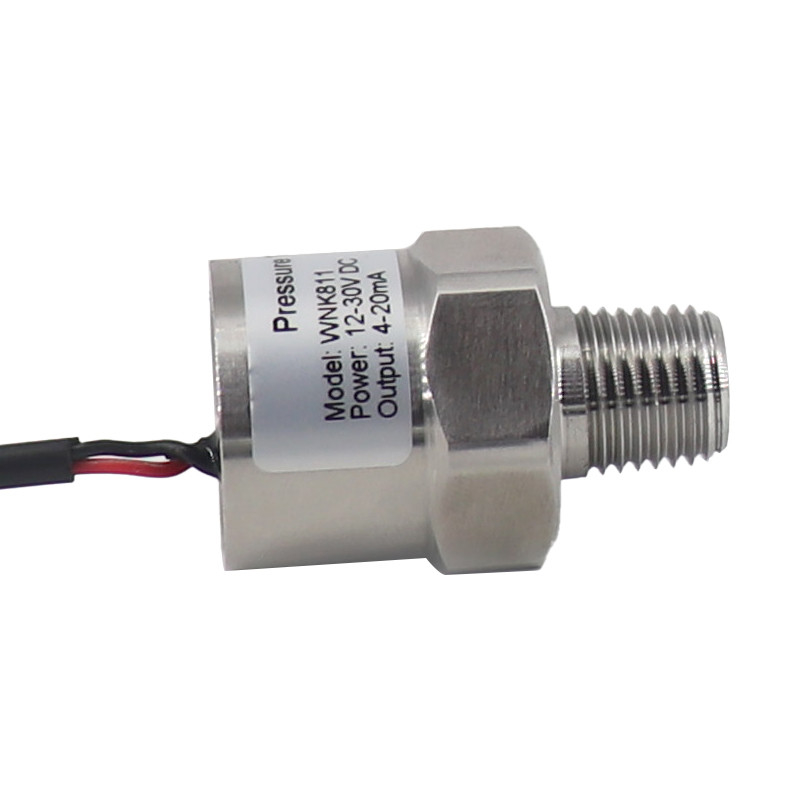

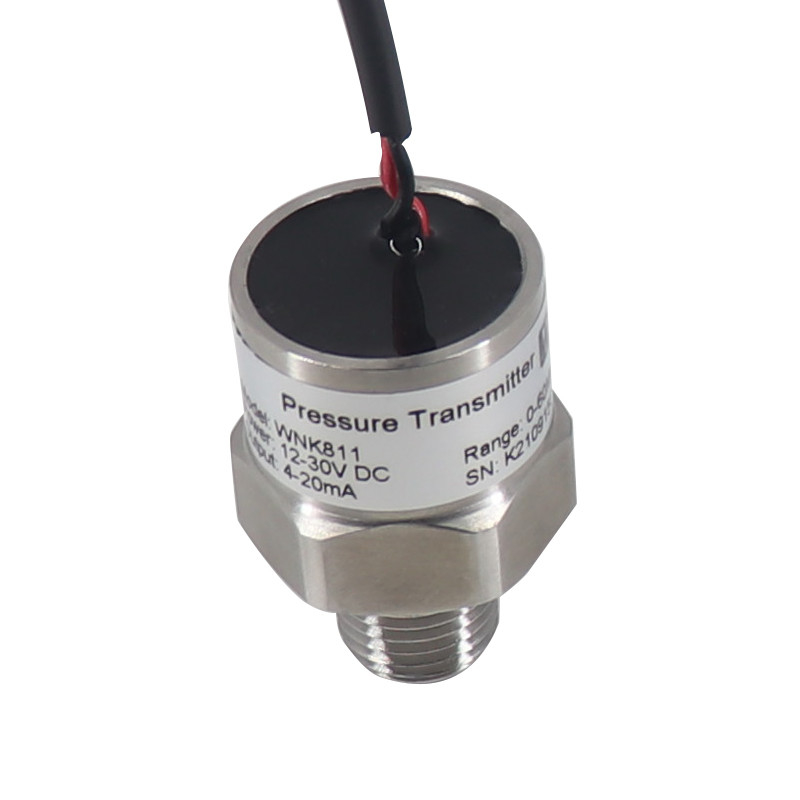

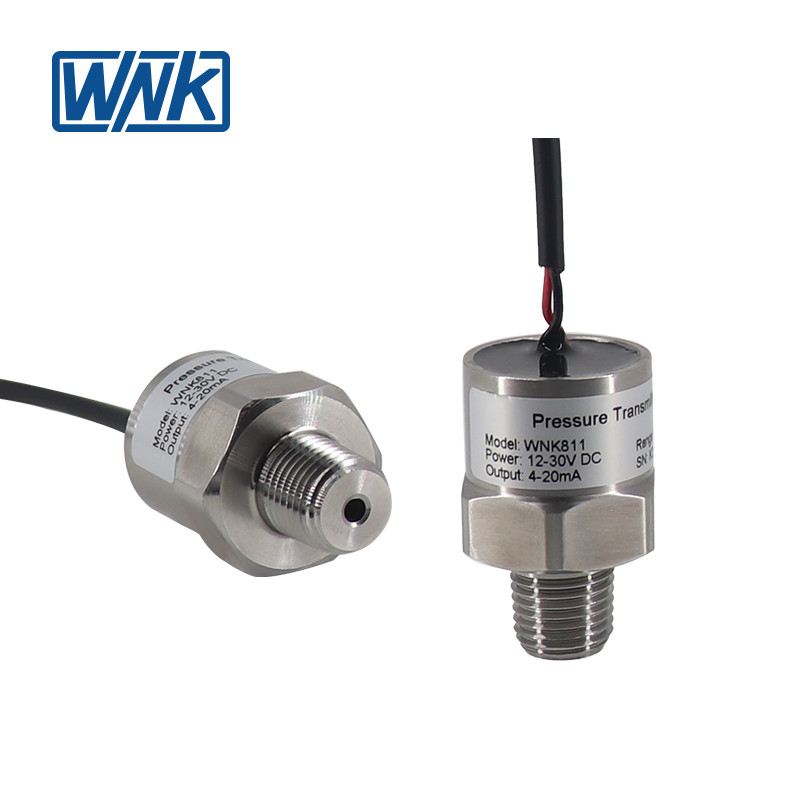

Diffused Silicon Pressure Sensors For Air Oil Water
Specifications
Pressure Type | Gauge Pressure , Absolute Pressure, Sealing Pressure |
Pressure Range | -1 - 60Mpa |
Accuracy | 0.5%FS |
Power Supply | 5VDC, 12-32VDC |
Measuring Media | Gas, Steam, Liquid, Oil |
Output | |
Analog | 4-20mA, 0.5-4.5V, Other |
Digital | I2C, |
Operation Condition and Temperature | |
Compensation Temperature | -40...75℃ |
Medium Temperature | -45 ... 85℃ |
Storage Temperature | -45 ... 85℃ |
Material and Protection | |
Ingress Protection | IP65, IP67 |
Housing Material | 304SS, 316L |
- Automobile, Compressor and Refrigeration Industry |
- Engineering machinery |
- Pressure control and monitor |
- Water treatment system |
- Hydraulic and Pneumatics |
- HAVC and BAS Control |
- Pump, fitness equipment, household appliances |
- Factory Automation |
- Fluid Control and Instrumentation Systems |
Pressure Port
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
A: 12 month from shipment date, for non-man-made damages.
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
