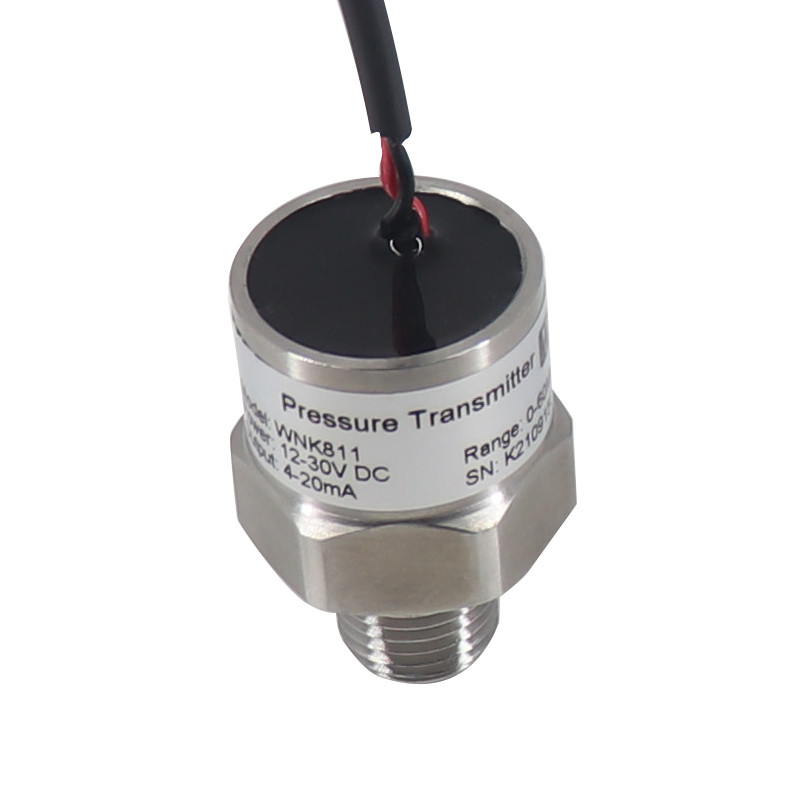

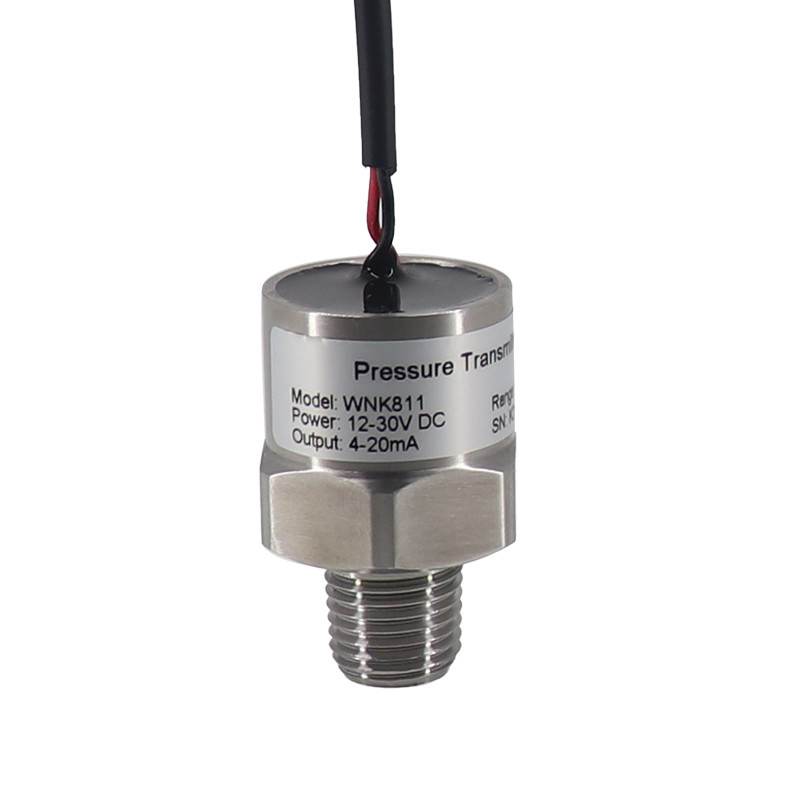

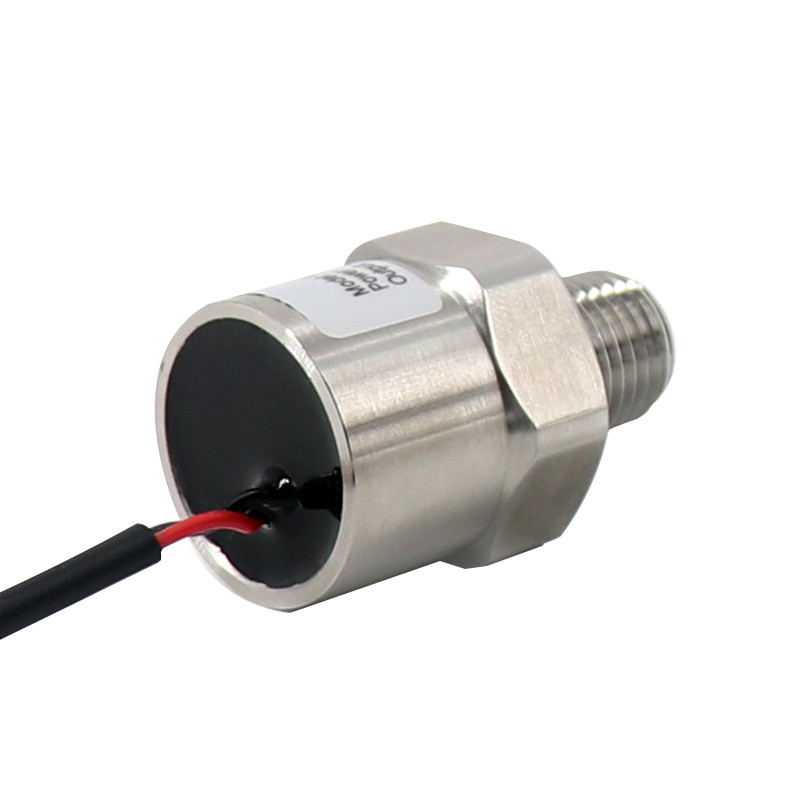

4-20mA Diffused Silicon IOT Water Pressure Sensor G1/4 For Air Gas

4-20mA Diffused Silicon IOT Water Pressure Sensor G1/4 For Air Gas
4-20mA Diffused Silicon IOT Water Pressure Sensor G1/4 For Air Gas 4-20mA Diffused Silicon IOT Water Pressure Sensor G1/4 For Air Gas 4-20mA Diffused Silicon IOT Water Pressure Sensor G1/4 For Air Gas

Large Image :  4-20mA Diffused Silicon IOT Water Pressure Sensor G1/4 For Air Gas

Product Details:
Place of Origin: CHINA
Brand Name: WNK
Certification: CE/ROHS
Model Number: WNK811ma
Payment & Shipping Terms:
Minimum Order Quantity: 1 PRICE
Price: Negotiation
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 5000 Piece/Pieces per Month Pressure Transmitter
Detailed Product Description
Pressure Range: -1~600Bar Output: I2C, 0.5-4.5V, 4-20ma And Customization
Sensor Type: Iot Pressure Sensor Accuracy: Accuracy
Compensation Temperature: -20 -70°C Housing Material: Stainless Steel 304
Pressure Port: G1/4, G1/2 ,1/8NPT, 1/4NPT, Other
High Light:

Diffused Silicon IOT water pressure sensor

,

G1/4 IOT water pressure sensor

,

G1/4 iot proximity sensor

Product Description

Low Cost 4-20mA Diffused Silicon Pressure Sensors



Pressure Type Gauge Pressure , Absolute Pressure, Sealing Pressure
Pressure Range -1 - 60Mpa
Accuracy 0.5%FS
Power Supply 5VDC, 12-32VDC
Measuring Media Gas, Steam, Liquid, Oil
Output
Analog 4-20mA, 0.5-4.5V, Other
Digital I2C,
Operation Condition and Temperature
Compensation Temperature -40...75℃
Medium Temperature -45 ... 85℃
Storage Temperature -45 ... 85℃
Material and Protection
Ingress Protection IP65, IP67
Housing Material 304SS, 316L





Applications

- Automobile, Compressor and Refrigeration Industry
- Engineering machinery
- Pressure control and monitor
- Water treatment system
- Hydraulic and Pneumatics
- HAVC and BAS Control
- Pump, fitness equipment, household appliances
- Factory Automation
- Fluid Control and Instrumentation Systems





WNK811 is a series of high performance compact pressure transducer, by using ASIC signal conditioning chip and dry ceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. Its anti-overload capacity is up to 10 times of the range, completely solved poor overload in small range of other sensors. In addtion to general ranges of normal sensors, its most outstanding characteristic is the positive and negative gauge pressure function. With high output and wide range, WNK80MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement.













Electrical Connections


4-20mA Diffused Silicon IOT Water Pressure Sensor G1/4 For Air Gas 0

Pressure Port

4-20mA Diffused Silicon IOT Water Pressure Sensor G1/4 For Air Gas 1





Product Show

4-20mA Diffused Silicon IOT Water Pressure Sensor G1/4 For Air Gas 24-20mA Diffused Silicon IOT Water Pressure Sensor G1/4 For Air Gas 34-20mA Diffused Silicon IOT Water Pressure Sensor G1/4 For Air Gas 44-20mA Diffused Silicon IOT Water Pressure Sensor G1/4 For Air Gas 54-20mA Diffused Silicon IOT Water Pressure Sensor G1/4 For Air Gas 64-20mA Diffused Silicon IOT Water Pressure Sensor G1/4 For Air Gas 7

Hot Product



4-20mA Diffused Silicon IOT Water Pressure Sensor G1/4 For Air Gas 8



Company Information



company information



Exhibition

4-20mA Diffused Silicon IOT Water Pressure Sensor G1/4 For Air Gas 10





4-20mA Diffused Silicon IOT Water Pressure Sensor G1/4 For Air Gas 13




FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea
