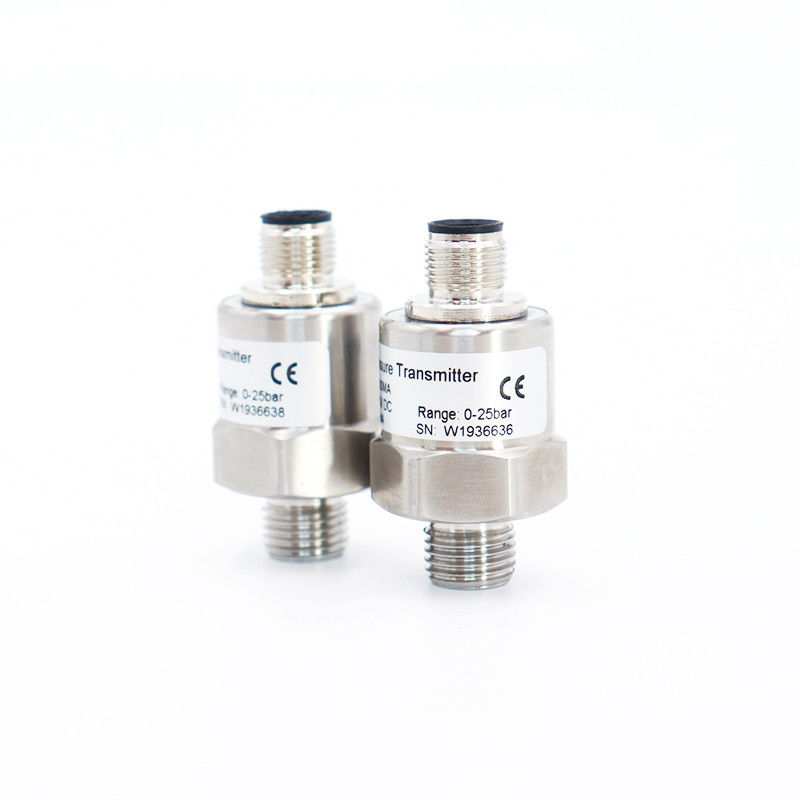

3.3V 5V Power Digital IOT Pressure Sensor For Water Gas Oil Monitoring

3.3V 5V Power Digital IOT Pressure Sensor For Water Gas Oil Monitoring

Digital IOT Pressure Sensor

3.3V IOT Pressure Sensor

Oil Monitoring IOT Pressure Sensor

Place of Origin:

Hefei, China

Brand Name:

WNK

Certification:

CE, SGS, ISO9001 2015

Model Number:

WNK21,WNK811, WNK19D

Contact Us
Request A Quote
Product Details
Pressure Range:
0-60Mpa
Accuracy:
0.5
Output:
4~20mA, I2C, SPI, 0.2-2.9V, 0.5-4.5V And Customization
Respond Time:
≥1ms
Overload Pressure:
3-5 Times
Material:
304SS
Sensor Type:
Eramic Capacitive Sensor, Diffused Silicon Sensor
Working Temperature:
-40 -135C
Warranty:
12 Months
Ingress Protection:
IP67
Highlight:

Digital IOT Pressure Sensor

,

3.3V IOT Pressure Sensor

,

Oil Monitoring IOT Pressure Sensor

Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Negotiation
Packaging Details
Sea-Worthy Packing or Air-Worthy Packing
Delivery Time
7-10 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
8000 pcs per month
Product Description

3.3V 5V Power Digital IOT Pressure Sensor For Water Gas Oil Monitoring



3.3V 5V Power Low Cost Digital IOT Pressure Sensor For Water Gas Oil Monitoring



WNK has 13-year experience of research, development, production and sales of sensors. With the concept of smart water management system, smart fire control, sponge city, smart city, and internet of things, WNK quickly seizes opportunities to develop low cost, low power, small size, with temperature measurement function ceramic capacitive pressure sensor.

Our sensor outputs including 4~20mA, SPI, I²C, 0.2~2.9V, 1~5V, 0~5V, 0.5~4.5V, 0~10v and etc. And OEM, ODM & customization service are available for this product.



Applications: Gas Water Steam Oil Measurement, Monitoring, Process Control





Features :



1. Temperature range: -40 to 70ºC;

2. Wide operation temperature range -40~125ºC;

3. High performance ceramic capacitive pressure sensor;

4. Various 4~20mA/0.5~4.5V/1~5V/ 0~5V/ SPI/ I²C outputs available;

5. Small dimensions, dimension customizble;

6. Optional packard, M12, Small Hirschman connectors;

7. OEM, ODM, customization service available;





Technical Data


IOT Pressure Sensor For Water Gas Oil Monitoring
Pressure range  -100kpa~70MPa
Pressure type Gauge, Absolute, Seal, Vacuum
Overpressure 300%F.S. (≤70kPa) 200%F.S.(≤25MPa)
Output signals 0.2-2.9V, SPI, I2C, 0.5-4.5V, 1-5V, 0-5V, 0~10V, 4~20mA
Accuracy ±0.5%FS, ±1%FS
Compensation Temp. -20~70℃
Operation Temp. -40~125℃
Storage Temp. -40~125℃
Zero Temp. Drift ±1.5%FS Max (-20~85℃)
Full Scale Temp. Drift ±1.5%FS Max (-20~85℃)
Pressure Connection G1/4, 7/16-SAE, NPT, and other outputs
Ingress Protection IP67 IP65
Housing SS316, SS304





 Advantages:

1. Founded in 2004, over 13 year professional research, developing and production experience;
2. Experienced and professional R&D team to provide customization services;
3. Producing transmitter core elements- PCB, supplying PCB for transmitter producers;
4. Highest accuracy up to 0.05%FS;
5. Various outputs supported I2C, SPI, 4~20mA, Hart, Modbus, Profibus-Pa, 0.5-4.5V, 0.2-2.9V and other
6. Our products have been exported to most of the EU countries, North America, South East Aisia and other countries and regions.

3.3V 5V Power Digital IOT Pressure Sensor For Water Gas Oil Monitoring 0
