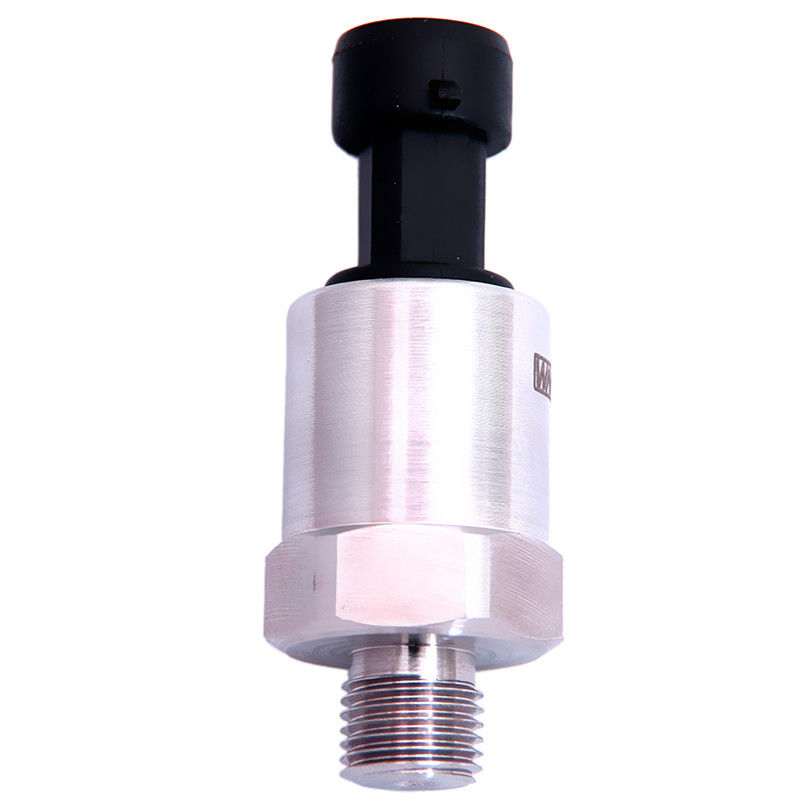

Name: Iot Air Pressure Sensor For Sealing Pressure 4 - 20mA 0.5 - 4.5V
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK80ma
Price: 20.00 USD
Availability: InStock

Home > Products > Air Pressure Sensor >

Iot Air Pressure Sensor For Sealing Pressure 4 - 20mA 0.5 - 4.5V

Air Pressure Sensor 4.5V

Iot Air Pressure Sensor

Stainless Steel 304 Air Pressure Sensor

Place of Origin:

CHINA

Brand Name:

WNK

Certification:

CE/ROHS

Model Number:

WNK80ma

Request A Quote

Iot Air Pressure Sensor For Sealing Pressure 4 - 20mA 0.5 - 4.5V

Product Details

Pressure Range:

0-60bar

Output:

I2C, SPI, 0.5-4.5V, 4-20ma And Customization

Sensor Type:

Iot Pressure Sensor

Accuracy:

Compensation Temperature:

-20 -70°C

Housing Material:

Stainless Steel 304

Highlight:

Air Pressure Sensor 4.5V

Iot Air Pressure Sensor

Stainless Steel 304 Air Pressure Sensor

Payment & Shipping Terms

Minimum Order Quantity

1 PRICE

Price

Negotiation

Delivery Time

5-8 work days

Payment Terms

T/T, Western Union

Supply Ability

5000 Piece/Pieces per Month Pressure Transmitter

Liquid / Gas Air Pressure Sensor Differential Pressure 0.5 - 4.5VDC Brass Housing Material

Get Best Price

Video

Fuel Pressure Regulator Air Pressure Sensor -20 - 70°C Work Temperature For Trailblazer

Get Best Price

Video

Brass Housing Material Air Pressure Sensor Sealing Pressure 1%FS Accuracy

Get Best Price

Video

Mini Gas Pressure Transmitter Air Pressure Transducer With Customized Electrical Connection

Get Best Price

86-551-65369655

Contact Now

Product Description

4-20mA 0.5-4.5V Air Pressure Sensor For Sealing Pressure

Water Pressure Sensor For Air Gas

Product Description

Input
Pressure Type	Gauge Pressure , Absolute Pressure, Sealing Pressure
Pressure Range	0-60bar
Accuracy	0.2%, 0.5%
Power Supply	5VDC, 12-32VDC
Measuring Media	Gas, Steam, Liquid, Oil
Output
Analog	4-20mA, 0.5-4.5V / 1-5V / 0-5V
Digital	IC, SPI
Operation Condition and Temperature
Compensation Temperature	-20...75℃
Storage Temperature	-45 ... 85℃
Ambient Temperature	-45 ... 85℃
Medium Temperature	-40 ... 125℃
Material and Protection
Ingress Protection	IP65, IP67
Housing Material	304SS, 316L

>>> Applications

- Automobile, Compressor and Refrigeration Industry

- Engineering machinery

- Pressure control and monitor

- Water treatment system

- Hydraulic and Pneumatics

- HAVC and BAS Control

- Pump, fitness equipment, household appliances

- Factory Automation

- Fluid Control and Instrumentation Systems
