Food Grade Sanitary Flush Industrial Pressure Transmitter 4-20mA Output

Food Grade Sanitary Flush Industrial Pressure Transmitter 4-20mA Output

Hygienic Industrial Pressure Transmitter

Food Grade Sanitary Pressure Sensor

4-20mA Industrial Pressure Transmitter

Place of Origin:

Hefei, CN

Brand Name:

WNK

Certification:

CE, SGS, ISO9001, NEPSI

Model Number:

WNK805

Contact Us
Request A Quote
Food Grade Sanitary Flush Industrial Pressure Transmitter 4-20mA Output
Food Grade Sanitary Flush Industrial Pressure Transmitter 4-20mA Output Food Grade Sanitary Flush Industrial Pressure Transmitter 4-20mA Output
Product Details
Applicable Medium:
Gas, Water, Liquid
Range:
0-0.2 ~ -100kPa; 0-0.2 ~ 1000kPa 60000kPa
Linear Accuracy:
0.5%FS 0.25%FS
Type:
Gauge, Absolute, Negative
Working Temperature:
-40 ～ 85 ℃
Electrical Connection:
Hirschmann Connector
Proof:
IP67
Power:
24VDC, 12-32V
Highlight:

Hygienic Industrial Pressure Transmitter

,

Food Grade Sanitary Pressure Sensor

,

4-20mA Industrial Pressure Transmitter

Payment & Shipping Terms
Minimum Order Quantity
1 piece
Price
Negotiable
Packaging Details
Sea-Worthy Packing or Air-Worthy Packing
Delivery Time
5-8 work days
Payment Terms
T/T, Western Union
Supply Ability
5000pcs per month
RELATED PRODUCTS
Good price Sanitary Tri-clamp Compact Pressure Sensor With Open SS316L Diaphragm online Video

Sanitary Tri-clamp Compact Pressure Sensor With Open SS316L Diaphragm

Get Best Price
Good price Food Grade Sanitary Flush Industrial Pressure Transmitter 4-20mA Output online Video

Food Grade Sanitary Flush Industrial Pressure Transmitter 4-20mA Output

Get Best Price
Good price Intrinsically Safe 64mm Clamp Sanitary Pressure Sensor online Video

Intrinsically Safe 64mm Clamp Sanitary Pressure Sensor

Get Best Price
Good price 4-20ma 2''Clamp Sanitary Pressure Sensor For Food With Flush Membrane online Video

4-20ma 2''Clamp Sanitary Pressure Sensor For Food With Flush Membrane

Get Best Price
Contact Us
86-551-65369655
Contact Now
Product Description
4-20mA Output Food Grade Sanitary Flush Diaphragm Hygienic Industrial Pressure Transmitter
Food Grade Sanitary Flush Diaphragm Pressure Transmitter
Specifications
The Series WNK805 Sanitary Pressure Transmitter is designed to meet the applications in food, dairy, beverage and pharmaceutical processing, liquid level control, and sanitary pipelines. The unit is fully sealed to withstand high pressure wash-down in Clean-in-Place and Sterilize-in-Place installations.

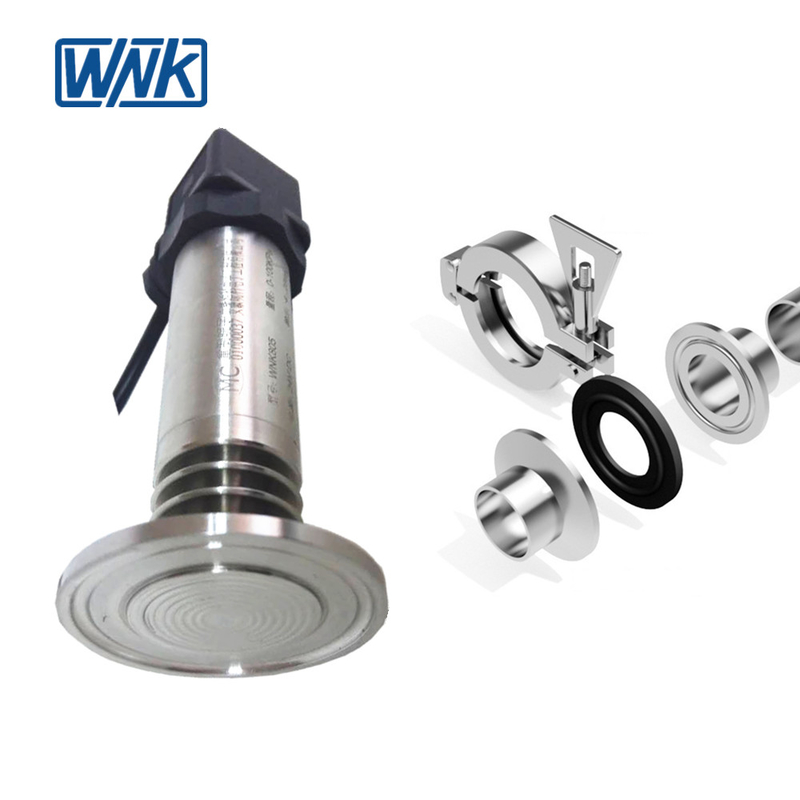

Tri-clamps are one of the most common types of pipe connections in the food, beverage, biotech, and pharmaceutical industries. This type of connection consists of a gasket compressed between two tri-clamp ferrules or flanges which are mechanically compressed in place with a clamp. Tri-clamp fittings are available in a variety of sizes, can be constructed from either steel or plastic, and can be either permanent or temporary. The clamp itself also comes in a variety of designs for ease of disassembly and cleaning.

It is therefore essential to select the right type of tri-clamp fitting to ensure the connection operates effectively in a given application. Choosing the right size and type of fitting can help minimize or eliminate contamination, bacterial growth, leaks, and deterioration of the connection material.
4-20mA Output Food Grade Sanitary Flush Diaphragm Hygienic Industrial Pressure Transmitter
4-20mA Output Food Grade Sanitary Flush Diaphragm Hygienic Industrial Pressure Transmitter
4-20mA Output Food Grade Sanitary Flush Diaphragm Hygienic Industrial Pressure Transmitter
High Temperature Sanitary Clamp Flush Type Pressure Transmitter
Applicable media
Liquid, Gas, Steam
Pressure measurment
Gauge Pressure, Absolute pressure, Negative pressure, Sealing pressure
Pressure range
0-0.2 ...100kPa, 0-0.2 ...1000kpa, 60 MPa
Output signals
Typical output 4...20mA, 0.5...4.5VDC, For option: 1-5V, 0-5V, 0-10V DC
Accuracy
0.25%, 0.5%, 1.0%FS
Stability
±0.25% FS/year
Zero drift
50% of full range span.
Max overload
200% of sensor range
Display
LED (Optional)
Housing material
304SS, 316L
Mechanical connection
Clamp,Flush and Flange

Power supply
Non-explosion: 10.5~45V DC
EEX ia:10.5~30 V DC
Ambient temperature
-40~85℃
Process temperature
-40~85℃



Features
- Standard ranges from vacuum to 60Mpa
- Accuracy up to ±0.25%
- 4-20 mA 2-wire output signal, others available
- Highly resistant to pressure spikes and vibration
- Stainless steel case and wetted parts
- Full range of process and electrical connections
- Assemble to diaphragm seals for special applications
- Suitable for gas, liquid, steam pressure measurement
- Intelligent digital circuit with precise temperature characteristic compensation
- Tantalum sensor contact for option for pressure measurement with corrosive media

Food Grade Sanitary Flush Industrial Pressure Transmitter 4-20mA Output 3Food Grade Sanitary Flush Industrial Pressure Transmitter 4-20mA Output 4
