Payment & Shipping Terms:
|Accuracy:||1%||Measured Media:||Liquid, Gas And Steam|
|Pressure Range:||0-1000kPa||Output Signal:||0.5-4.5 VDC|
|Power Supply:||4.75-5.25 VDC||Material:||Brass|
|Process Connection:||1/4NPT||Electrical Connection:||Cable Outlet|
Small Size Brass Pressure Sensor,
Small Size Brass Pressure Transmitter,
0-20 Bar Brass Pressure Sensor

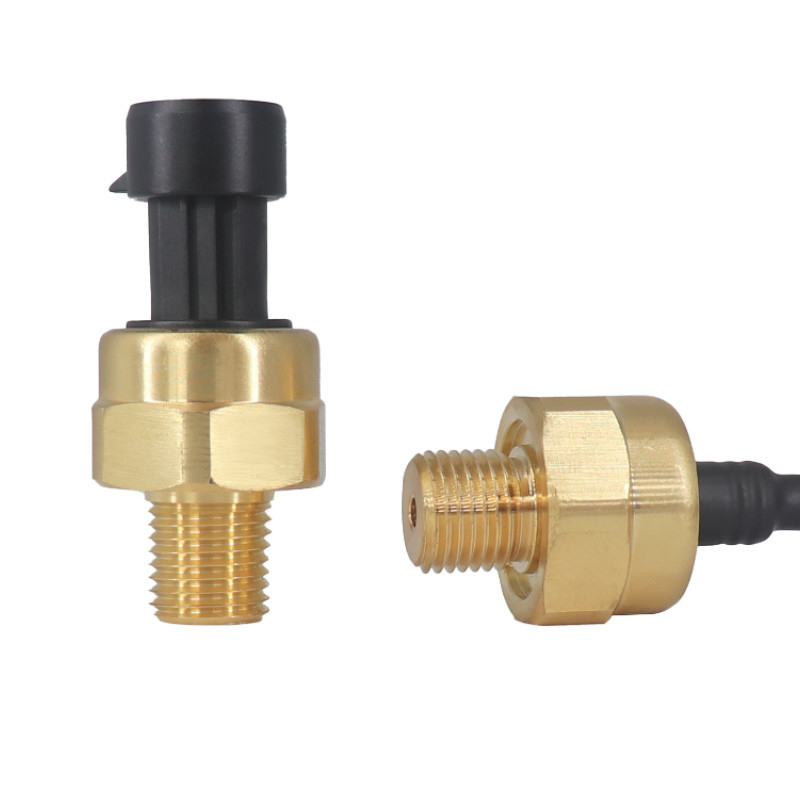

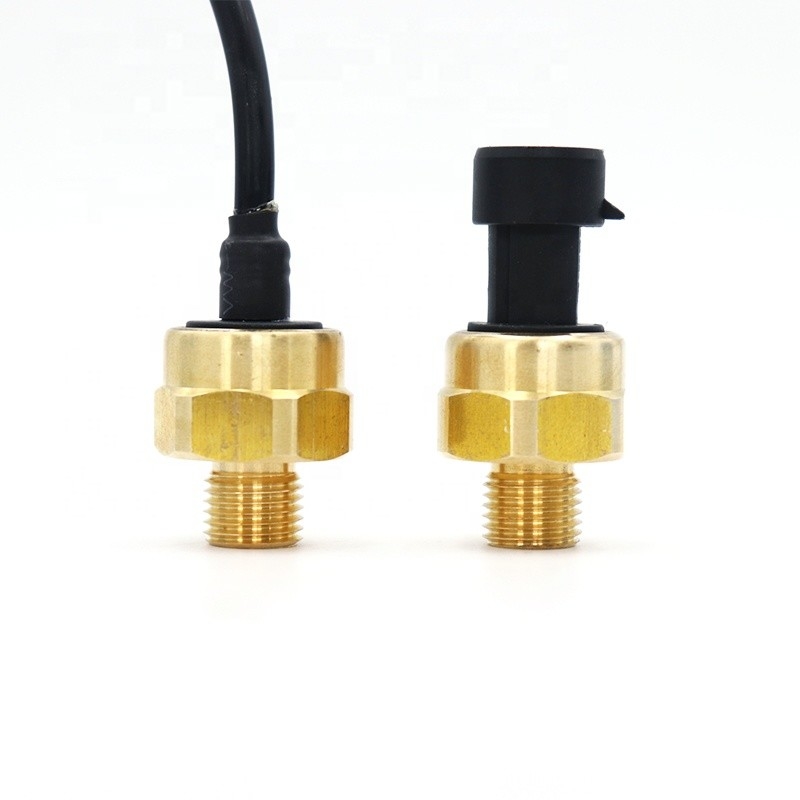

What we are showing now is WNK83mA quarter NPT pressure tranmitter.As a practical pressure transmitter made of brass, it has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. It can withstand strong working pressures up to 2000kpa. It can act on gas, water or liquid and has strong stability.
|Applicable media||Liquid, gas and steam|
|Cell||Ceramic capacitive pressure sensor|
|Pressure measurment||Gauge Pressure, Sealing pressure|
|Power supply||4.75-5.25 VDC|
|Accuracy(linearity,Hysteresis and Repeatability)||1%F.S.|
|Temperature drift(zero)||±0.15% F.S. (-20~70ºC)|
|Temperature drift(full range)||±0.15% F.S. (-20~85ºC)|
|Electrical connection||Cable outlet|
|Mechanical connection||1/4 NPT|
Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer since 2004.
Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome
Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.
Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
